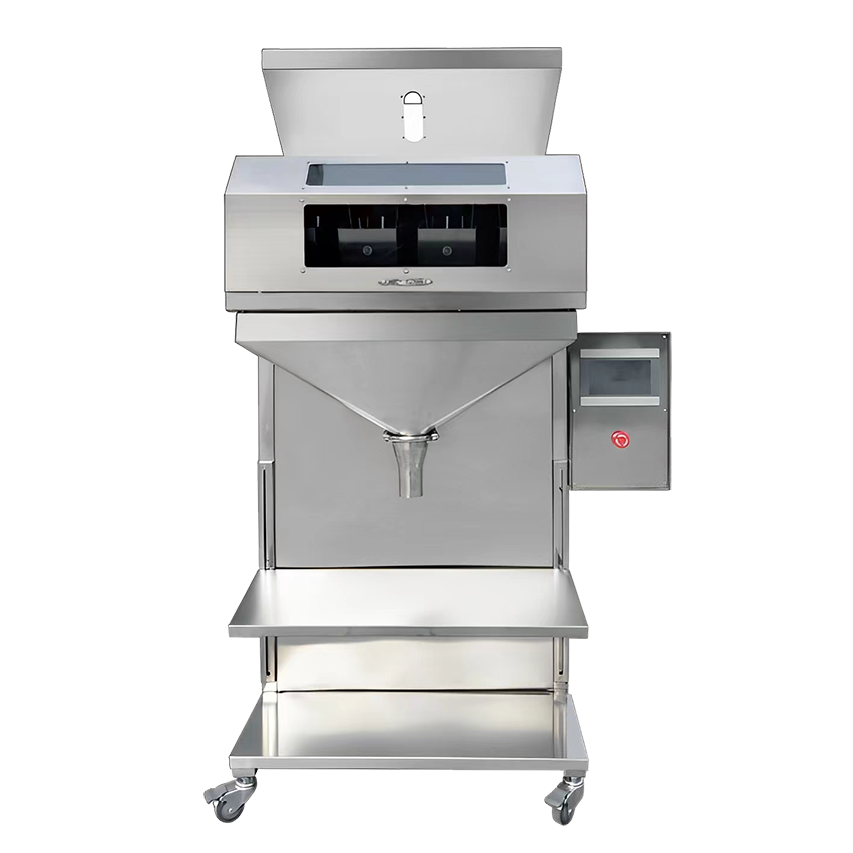

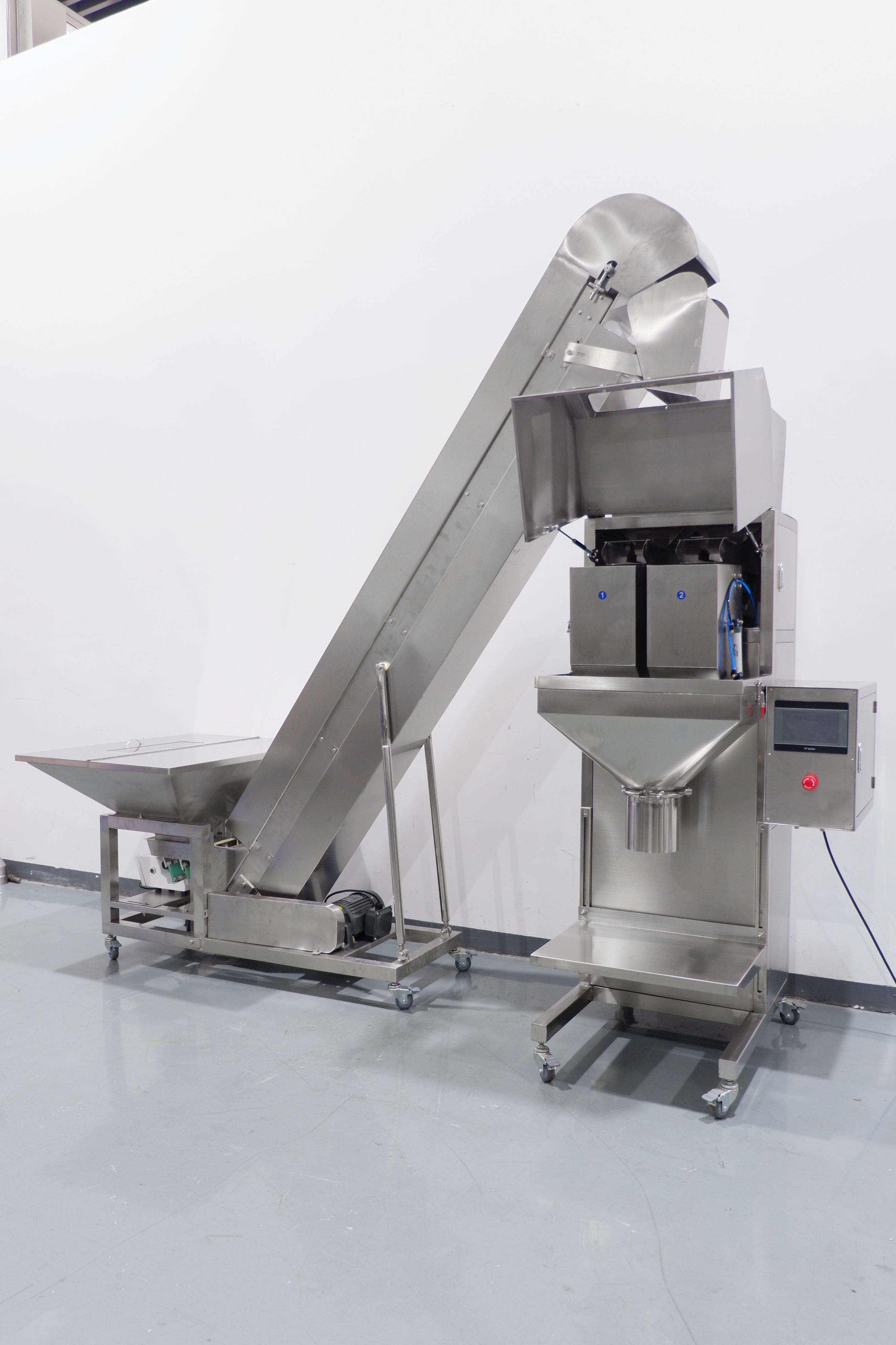

GMB-04B Granule Weighing Filling Machine (Four Scales)
Technical Parameters
Packing Weight | 5g-3KG (Depends on Material) | |||||
Hopper Volume | 3.5L | 5L | ||||
Hopper QTY | 2 | |||||
Filling Port | 22mm | 32mm | 45mm | 60mm | 76mm | 89mm |
Accuracy | ≤±0.3% (depending on material and weight) | |||||
Voltage | AC220V | |||||
Power | 0.8kw | |||||
Weight | 120KG | |||||
Dimensions | L850 × W800 × H2000mm | |||||
Detailed Introduction
Accessory:
 |  |

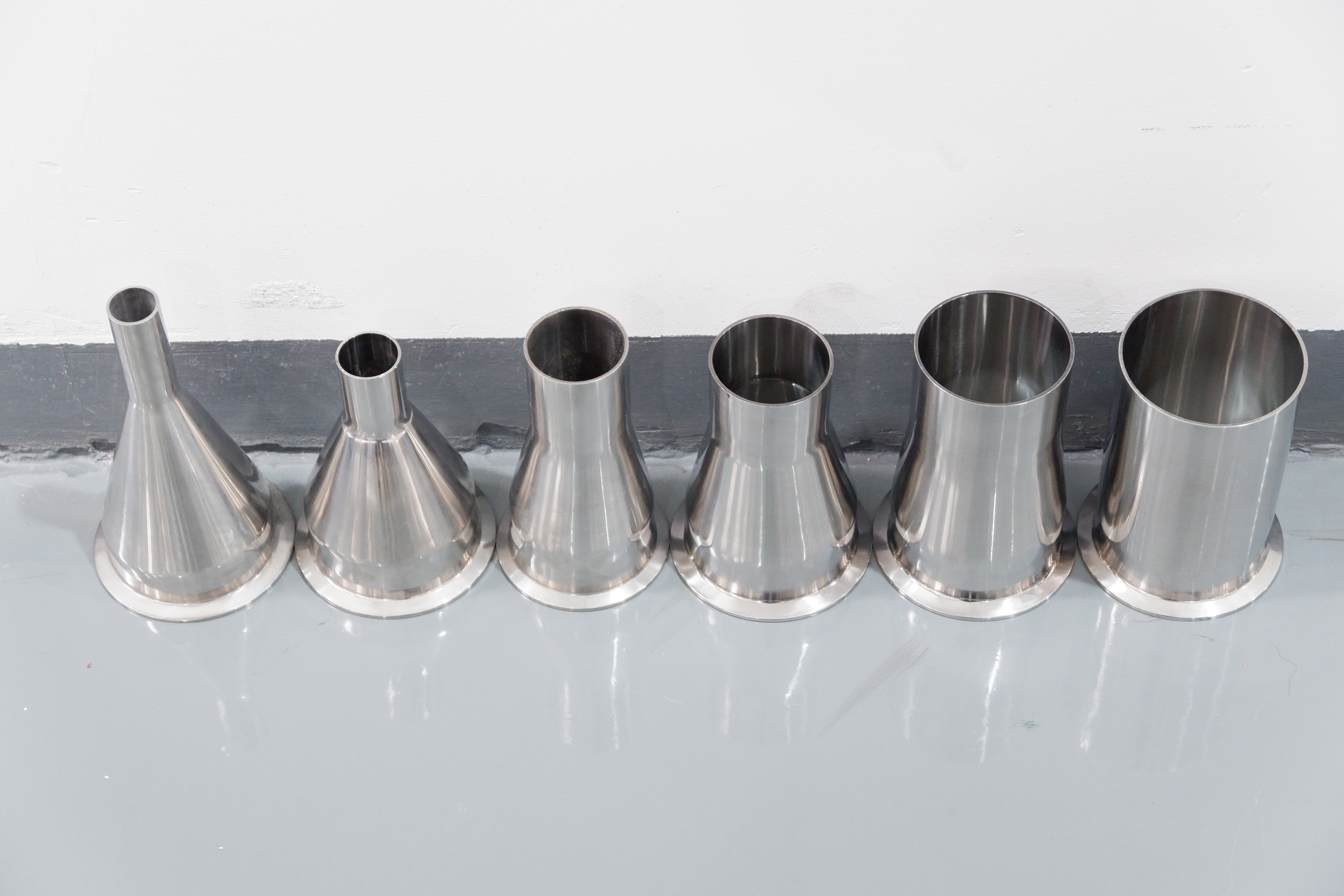

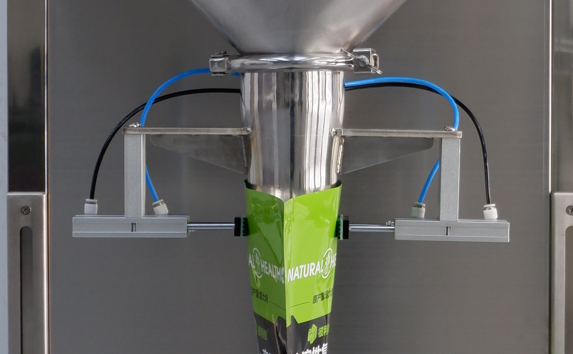

| Different sizes of filling part | Can add a clamping device |
 |  |

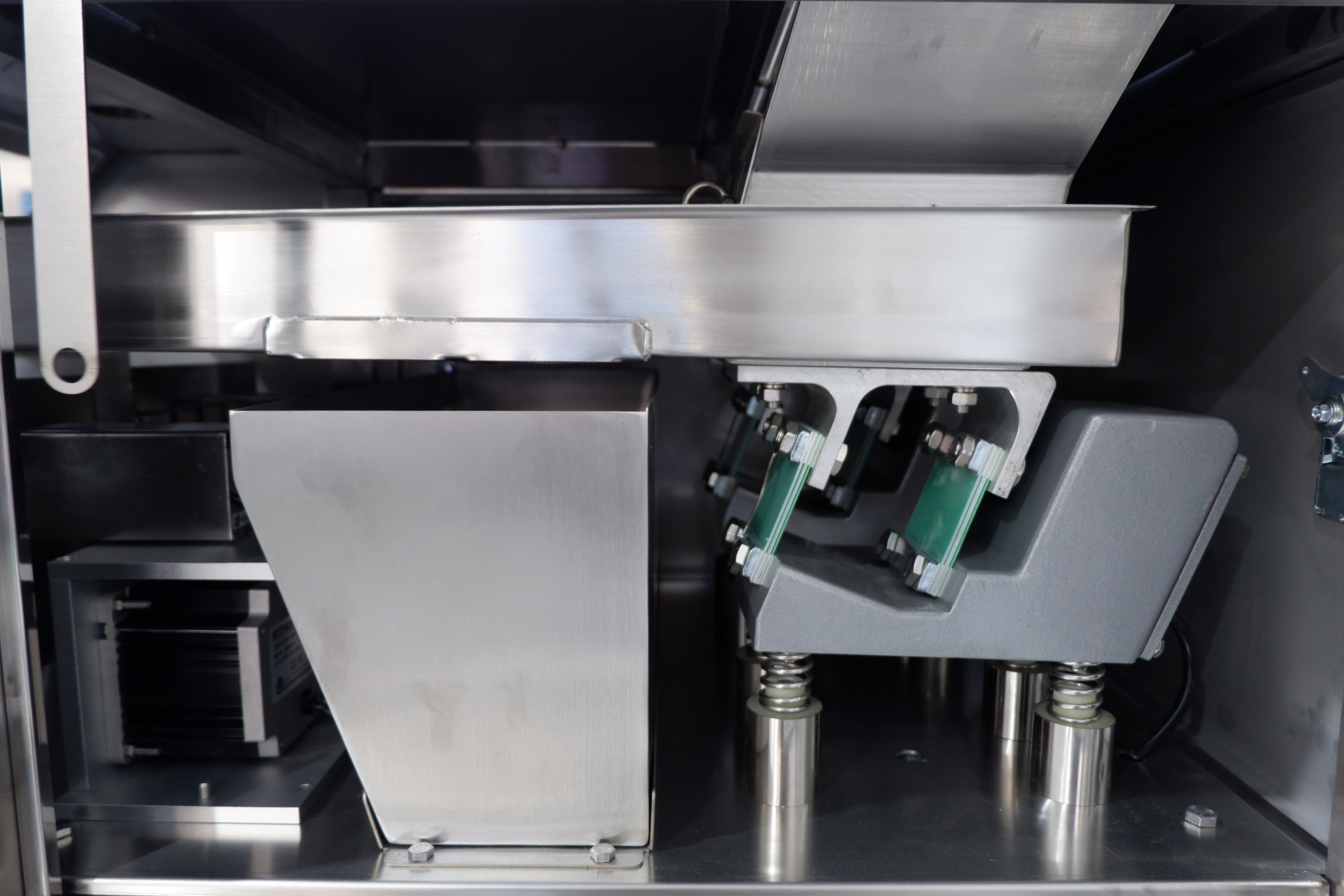

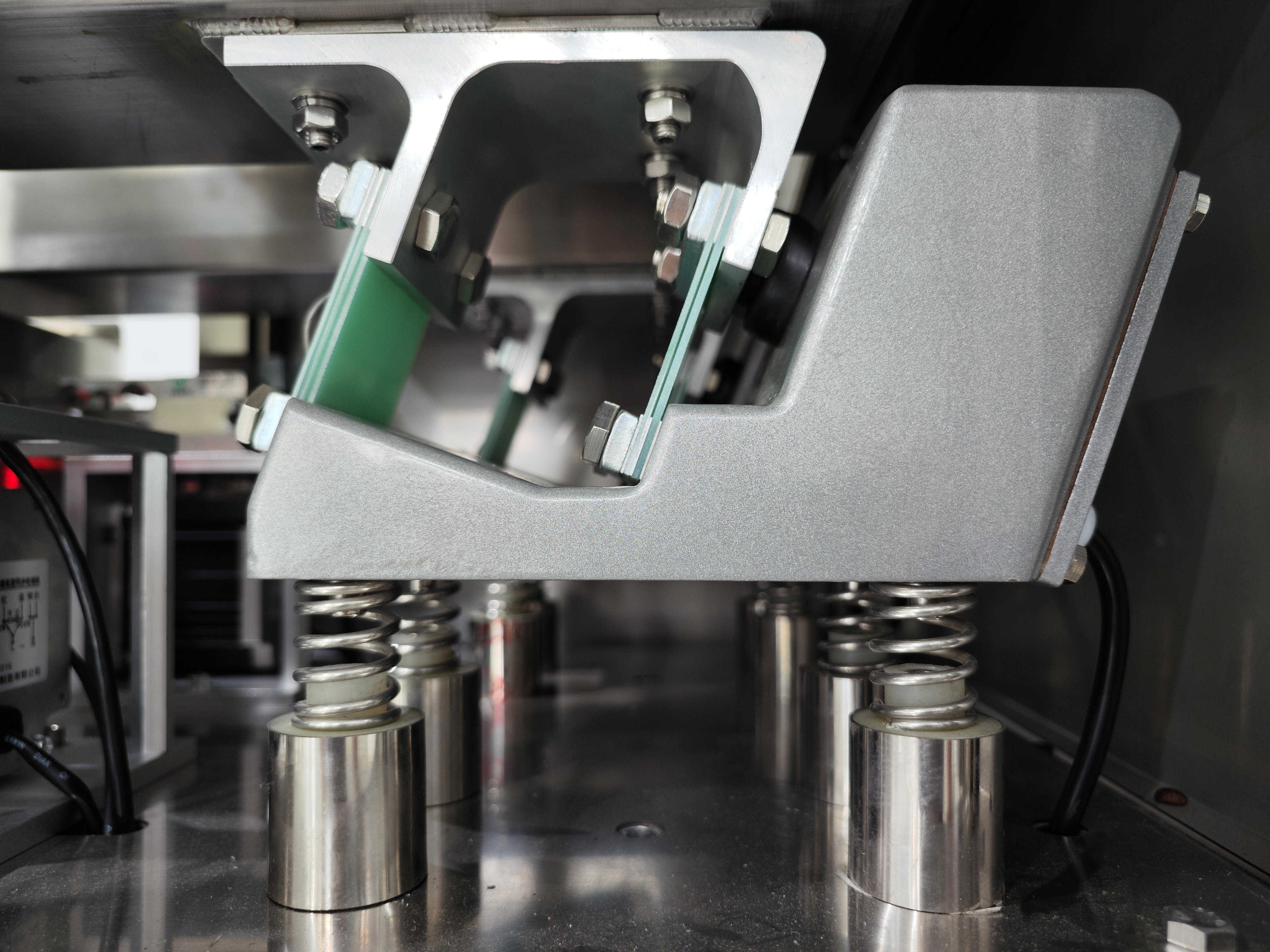

| Good quality vibrator | Can add a cover to collect dust |
 |
|

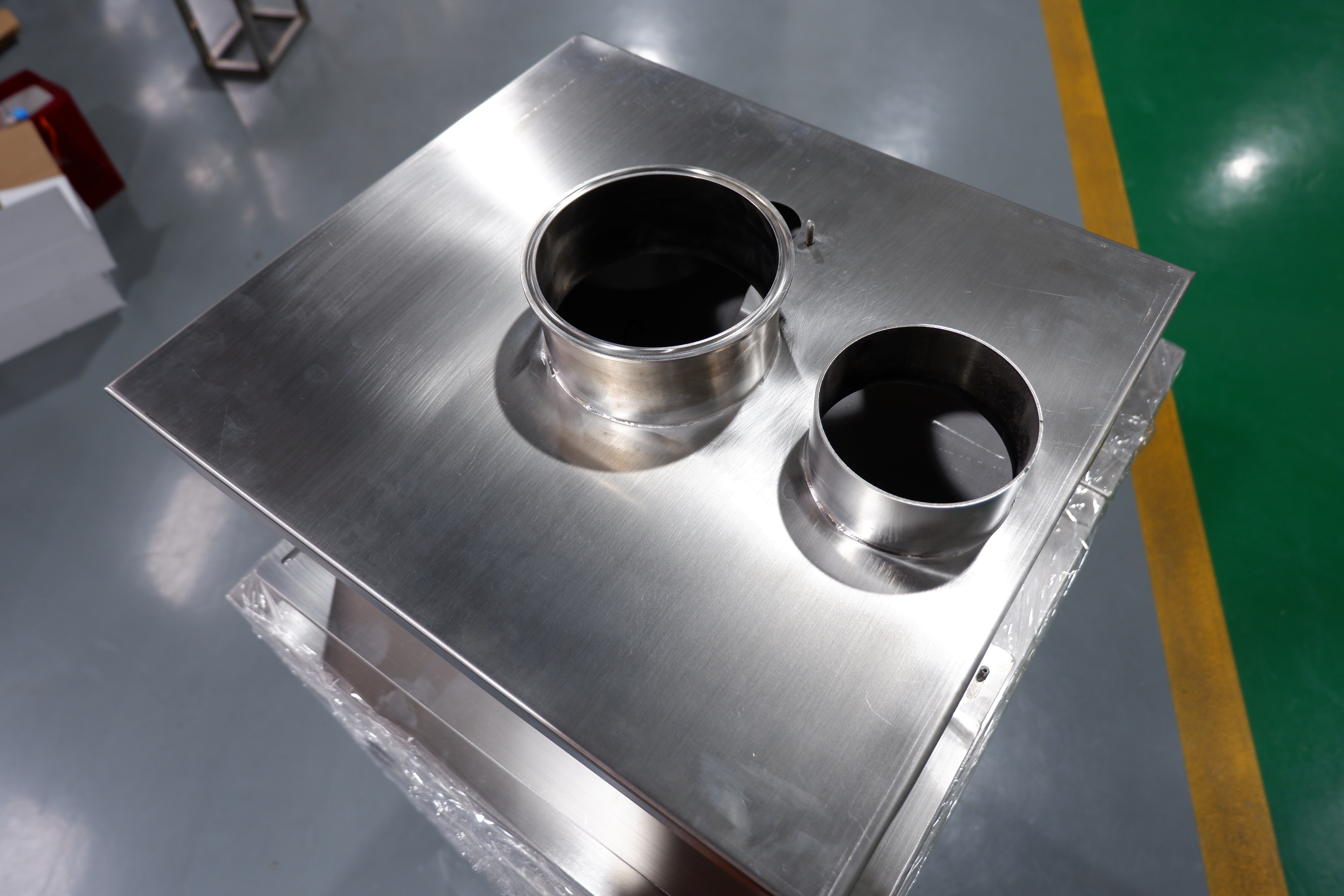

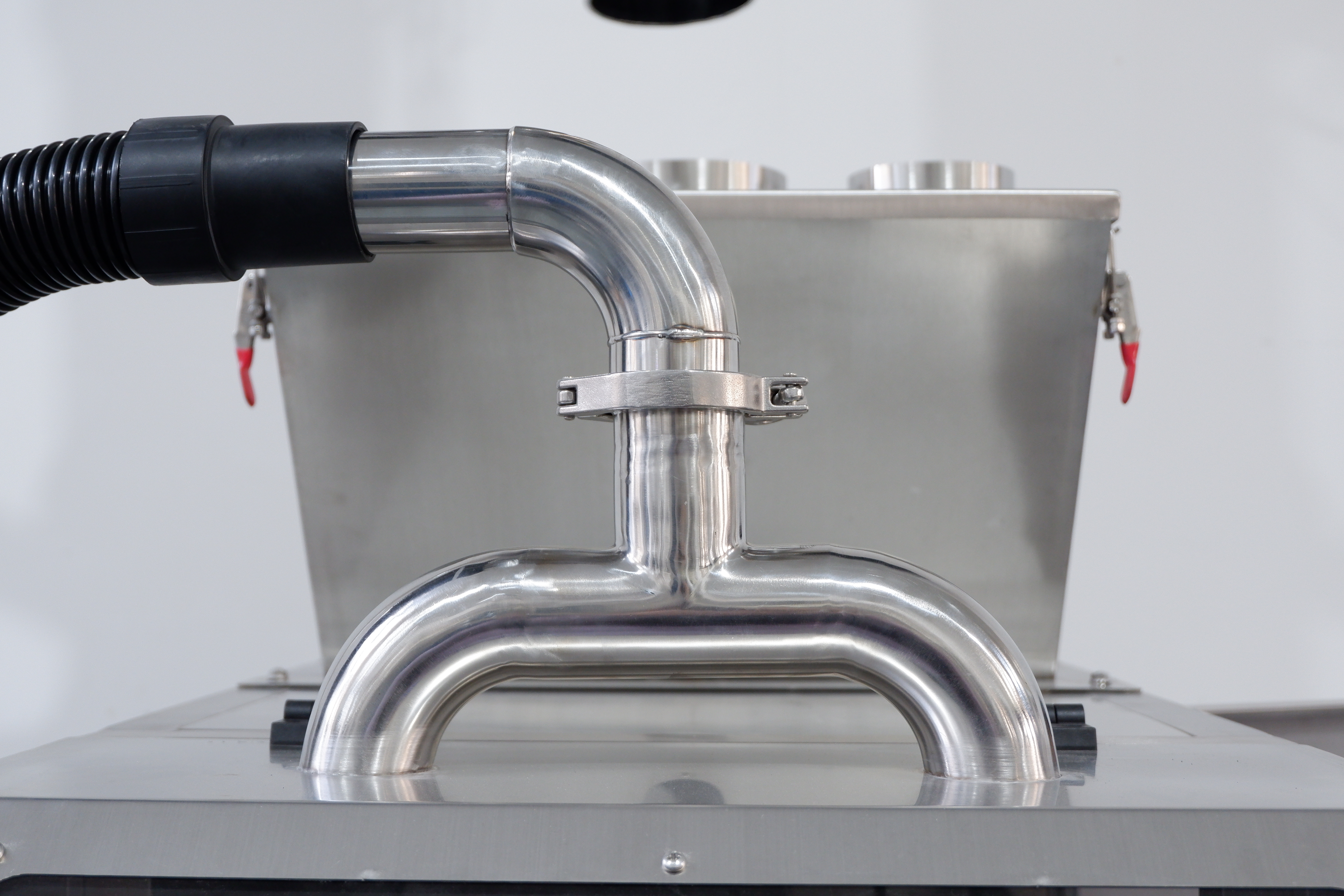

Dust-proof cover | Can connect to vacuum cleaner to remove dust |
 |  |

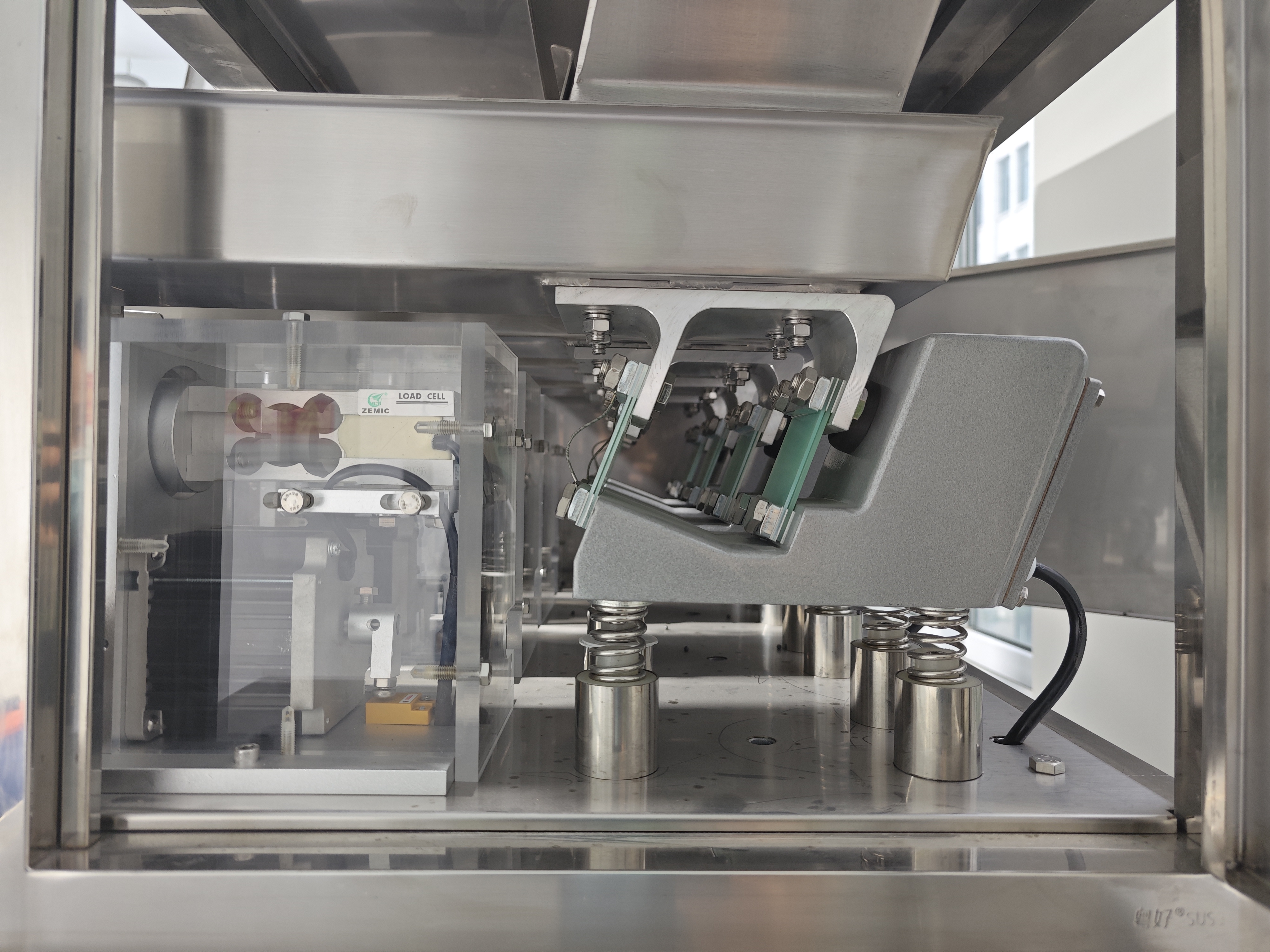

| Can add a cover to protect load cells | Telfon for sticky granule |

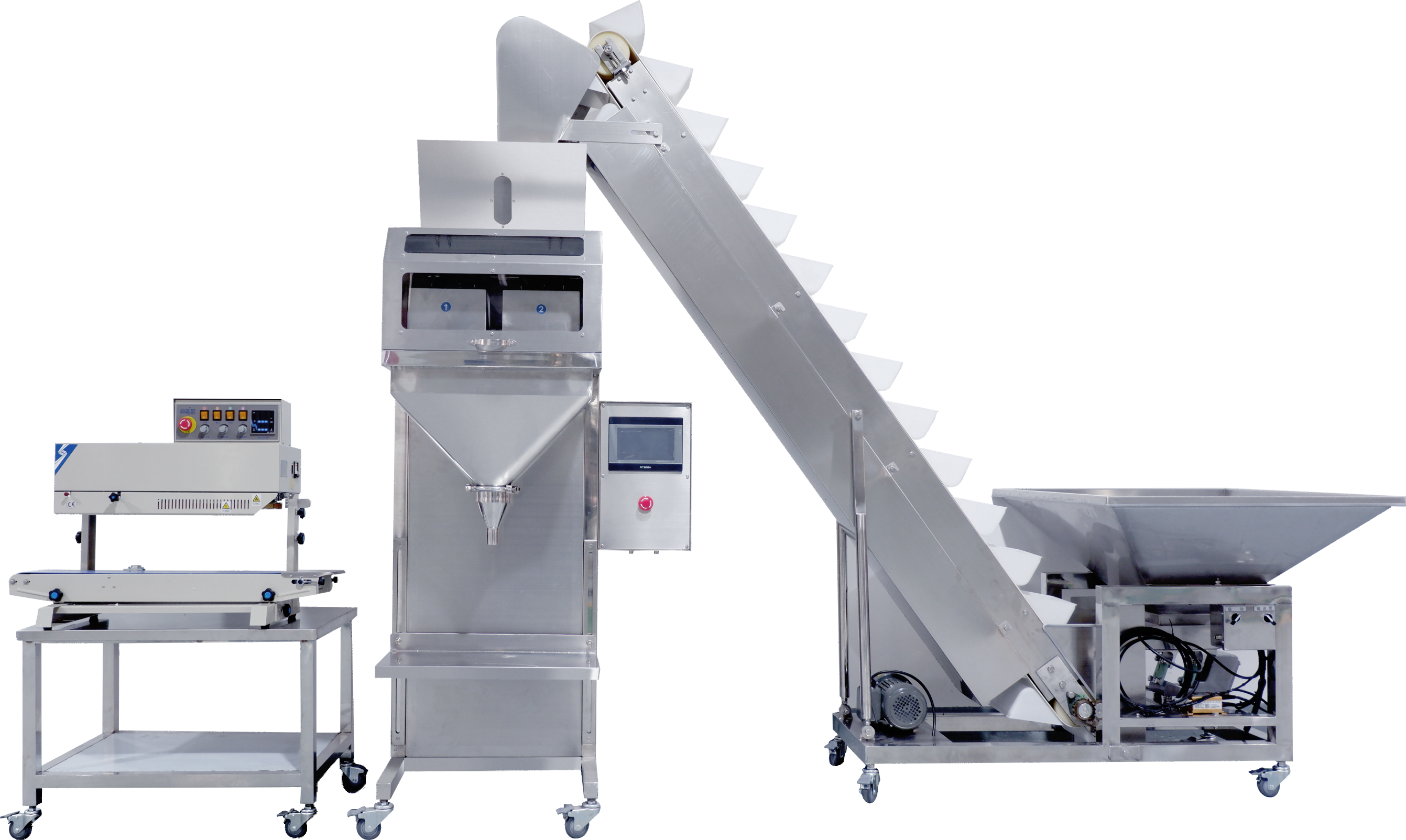

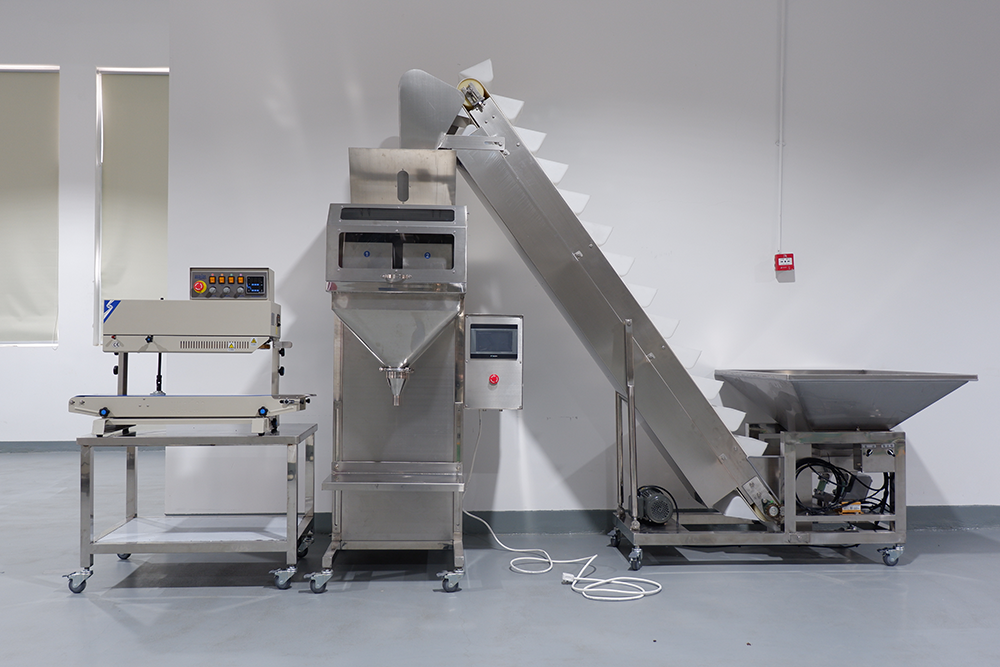

Supporting Equipment:
|  |  |

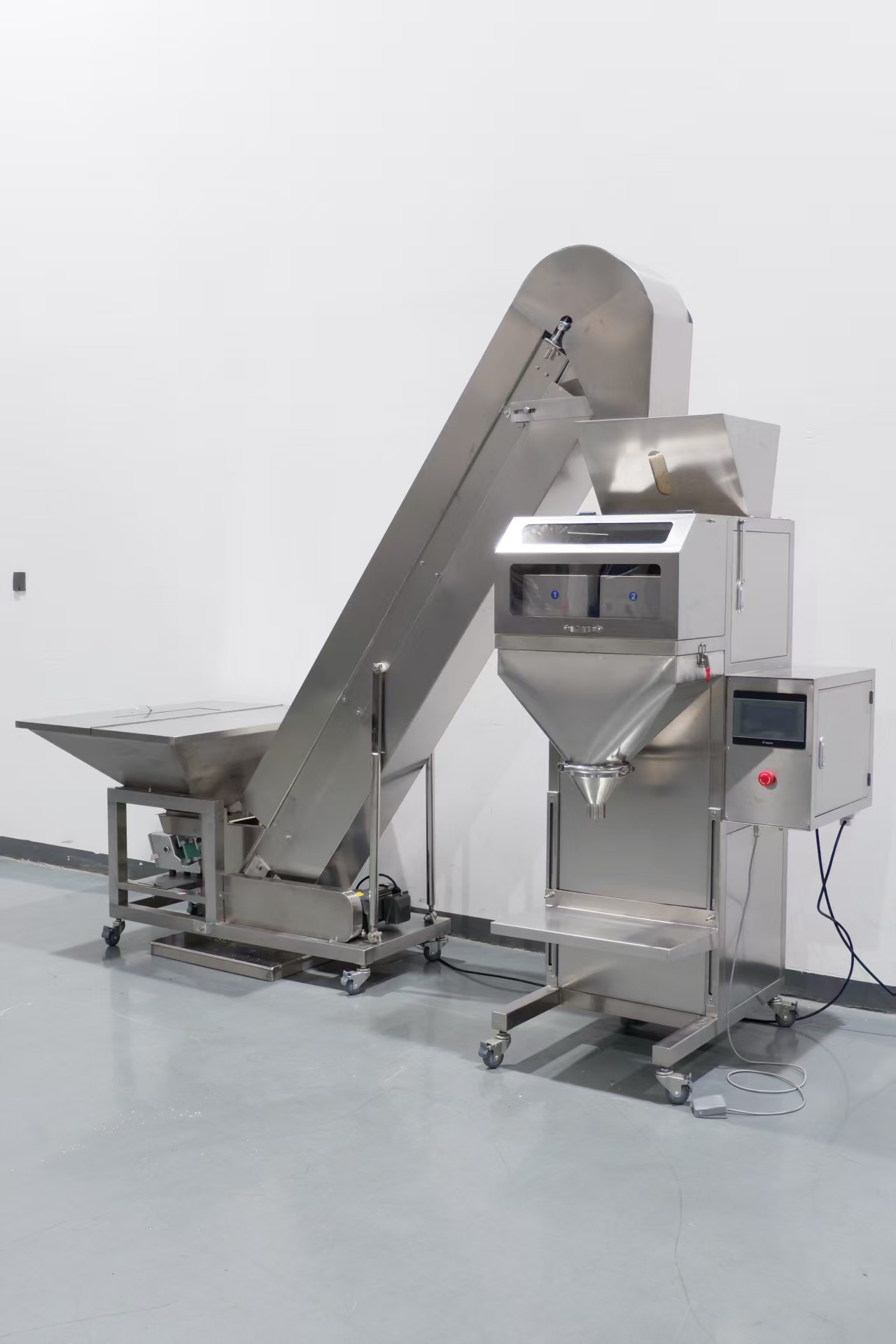

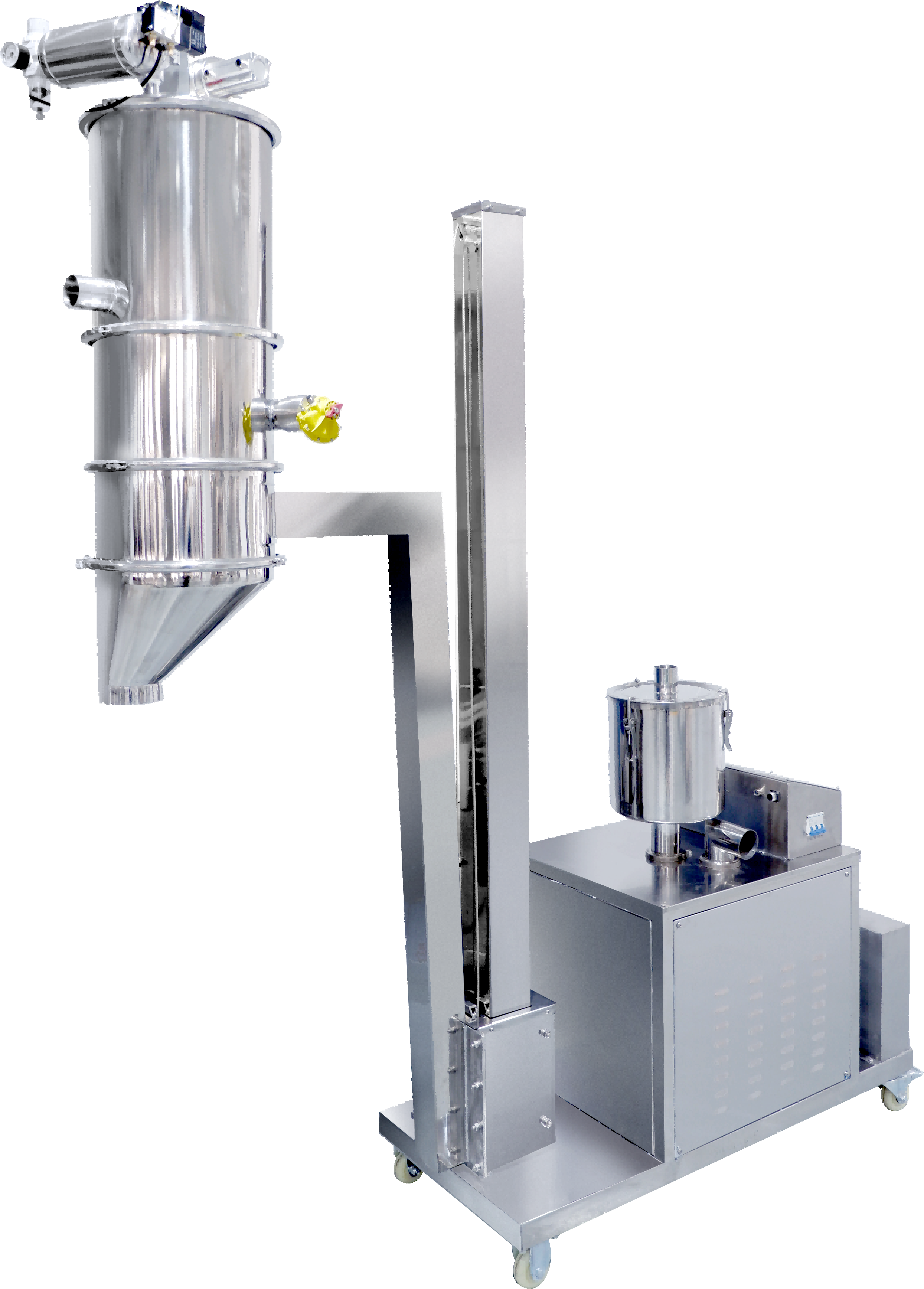

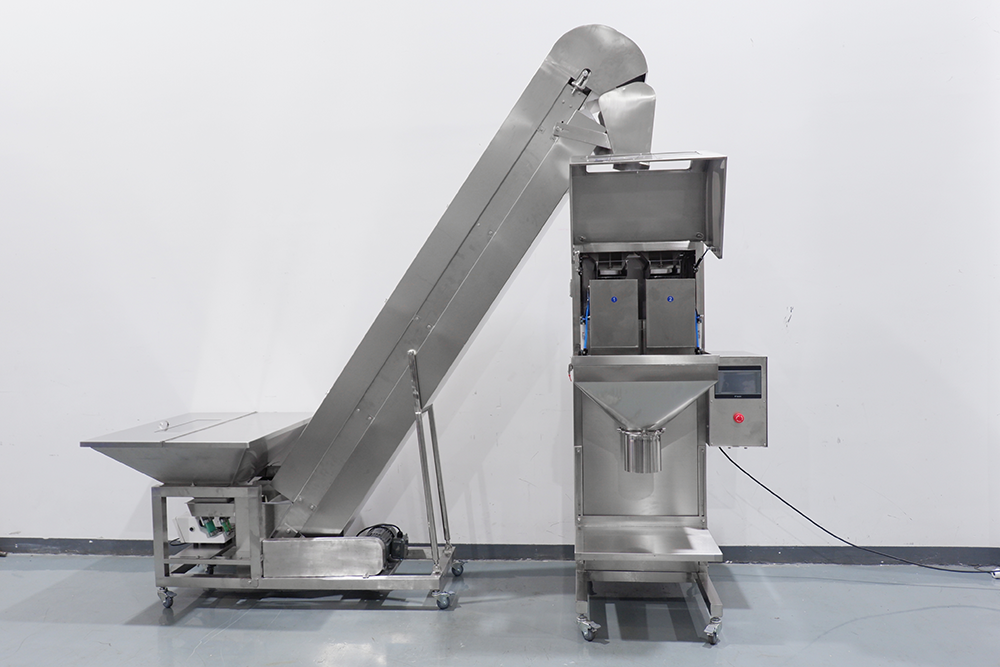

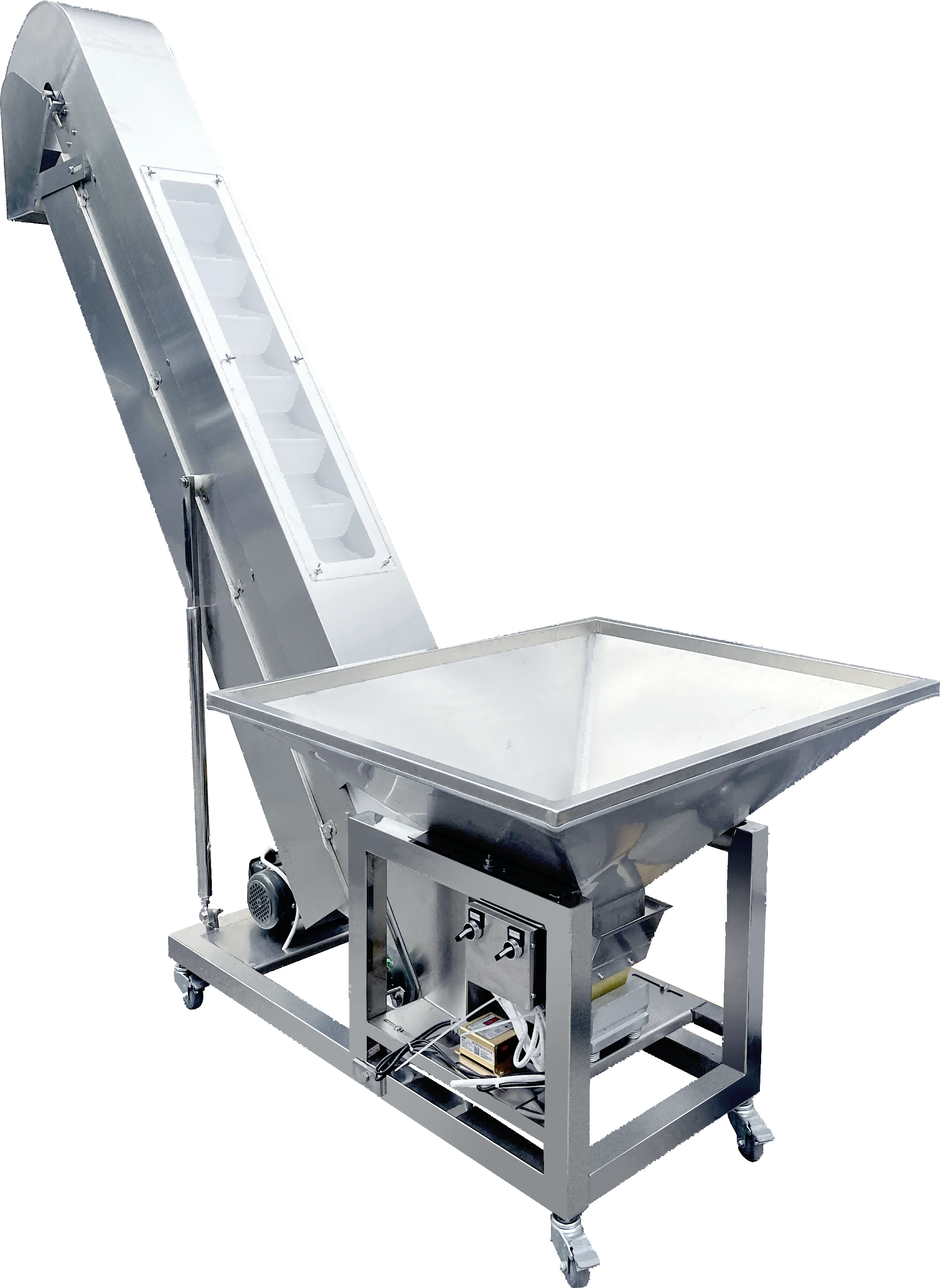

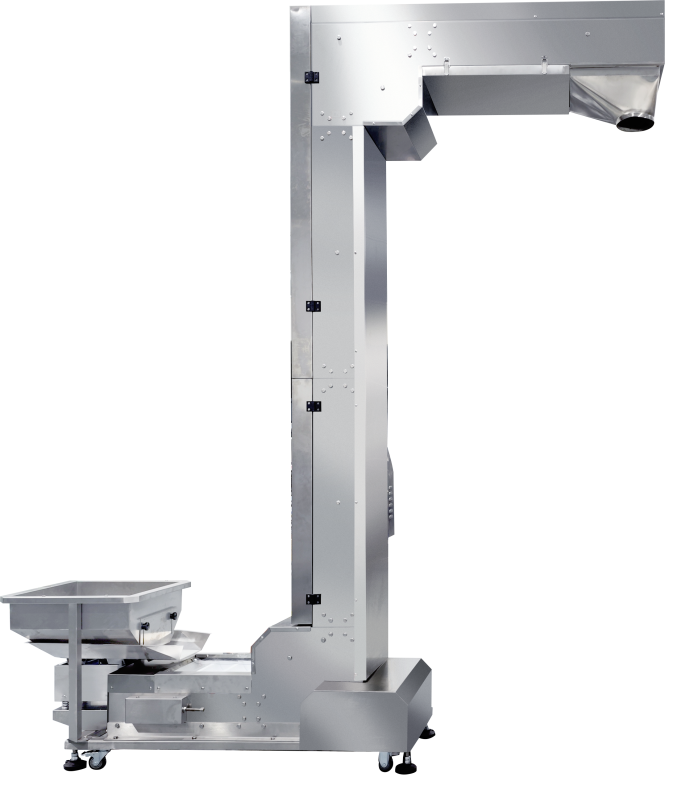

| Bucket Feeder | Bucket Feeder | Vacuum Feeder |
 |
|  |

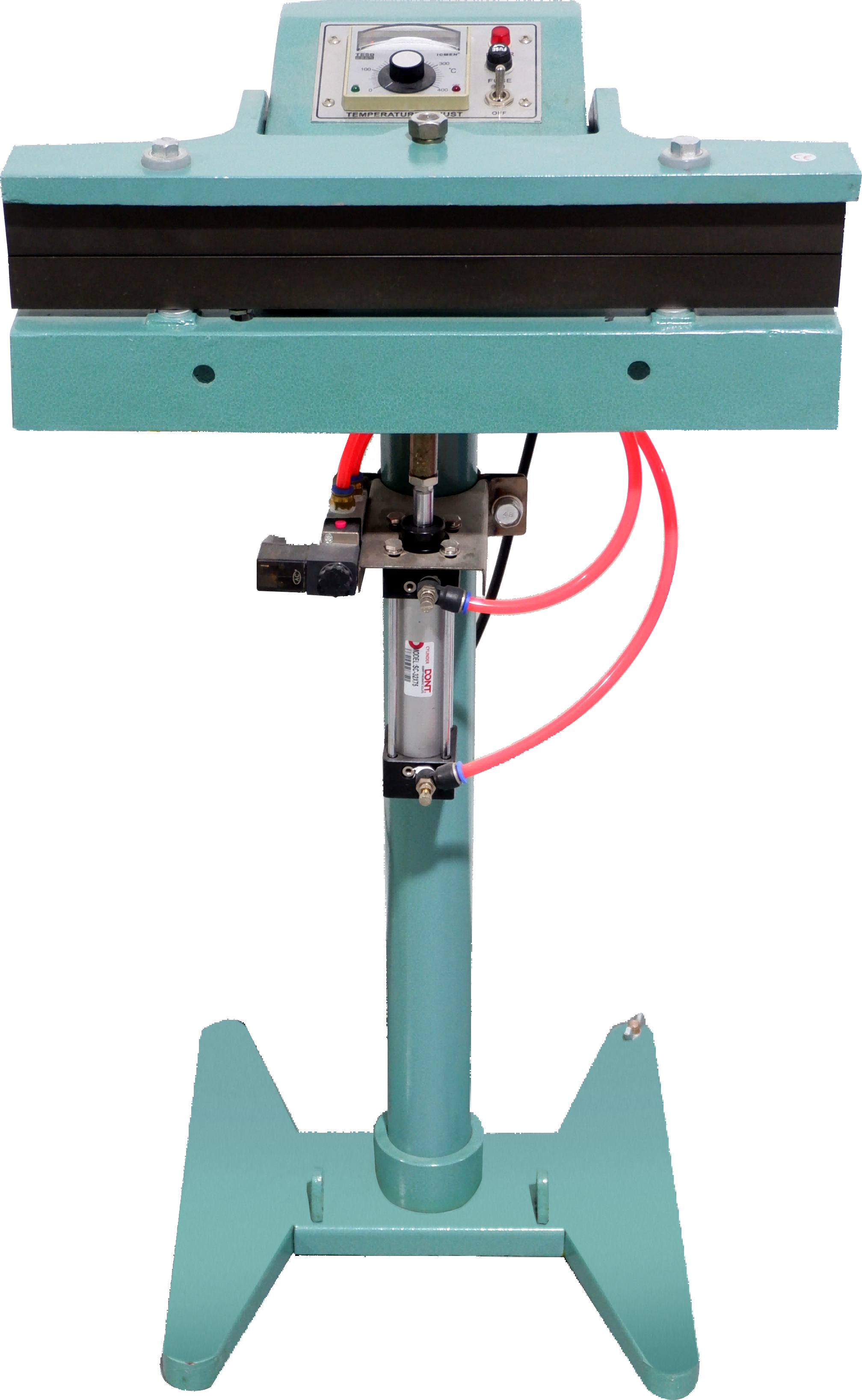

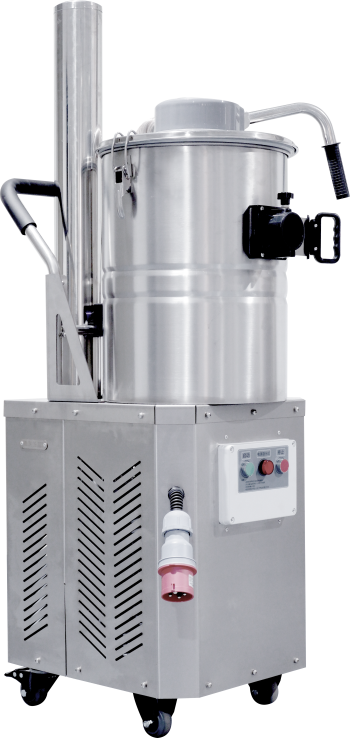

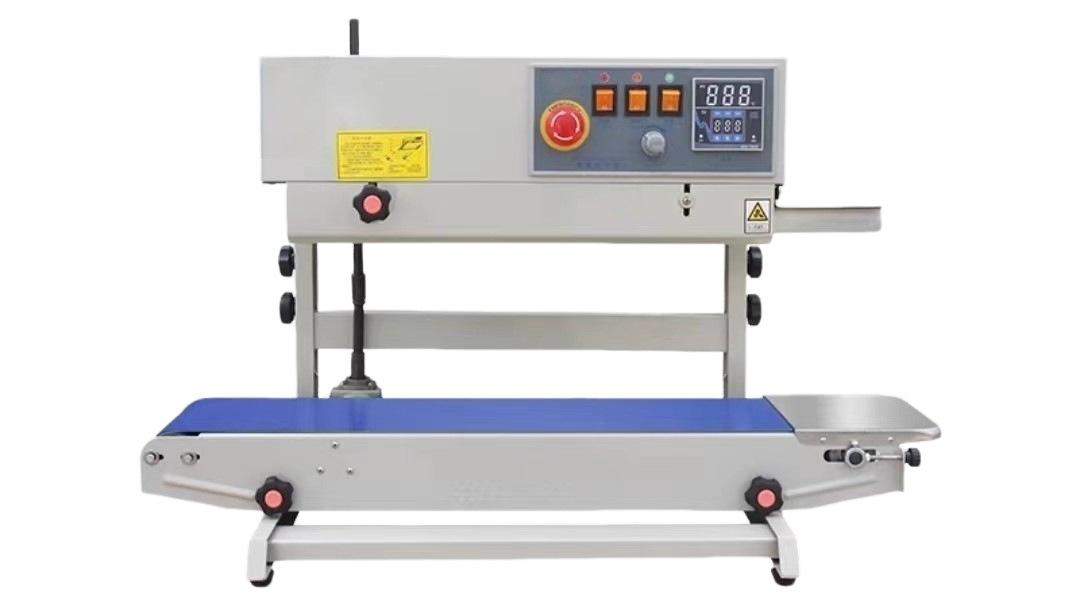

| Vacuum Dust Cleaner | Sealing Machine | Sealing Machine |
Working Principle:
0-2.8KG: Fast Filling(Weighing)
Material enters into vibration feeder and vibration starts fast filling until reaching the "fast weight".
2.8-3KG: Slow Filling(Weighing)
Vibration starts slow filling until reaching the "slow weight".
“2.8KG” “3KG” is just an example,the specific setting depends on the situation.
Advantages and Characteristics
1. Stability: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.

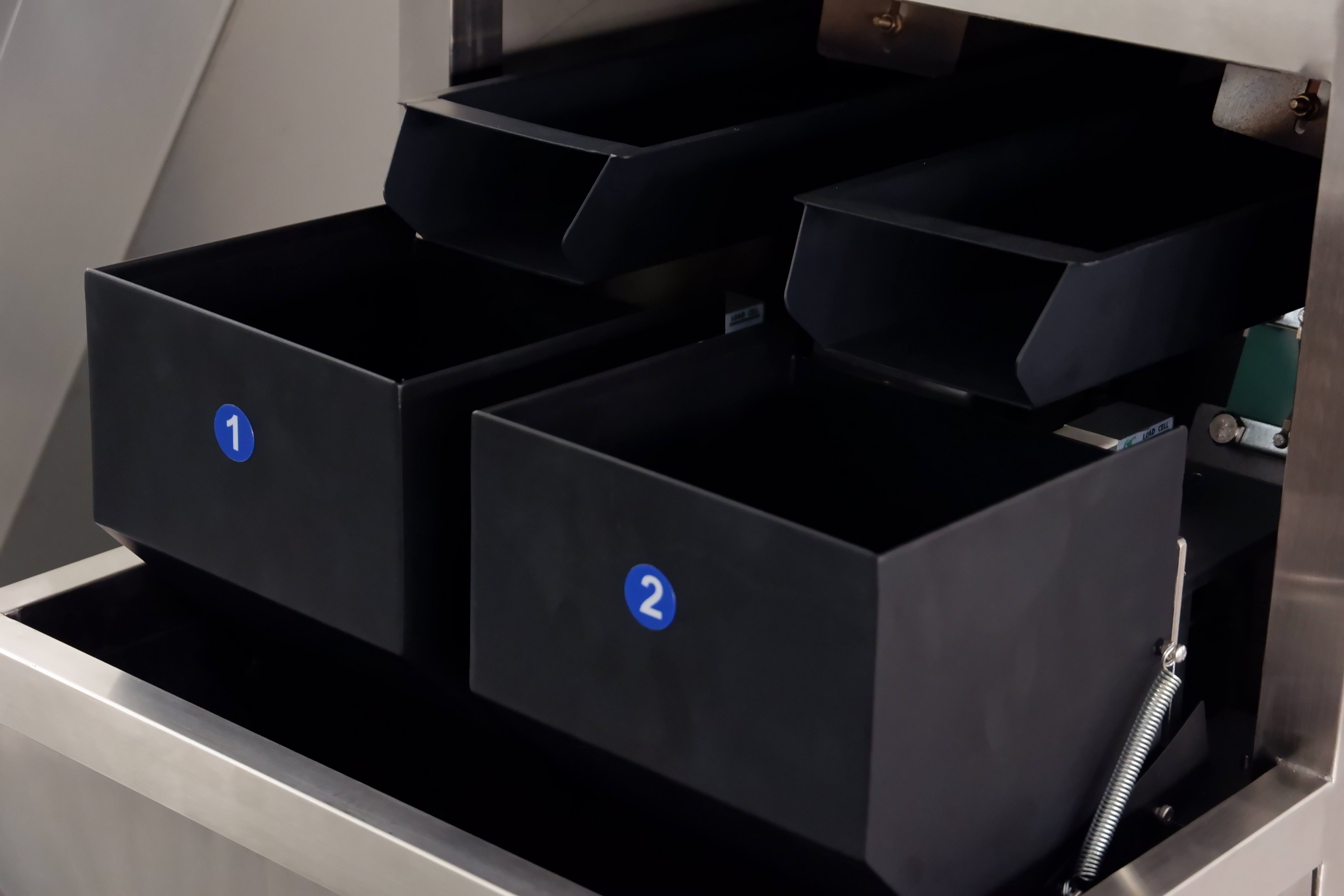

2. Fast speed: 4 weighing hoppers measure and discharge alternately.
3. High accuracy: Step-type multi-speed feeding, small error.
4. Auto Calculation: The system can automatically calculate the fast and slow weight, and correct the error value.
5. Stable structure: One weighing bucket corresponds to one vibrator and one weighing sensor, which are independent of each other.
6. Simple operation: Equipped with electronic touch screen, weight parameters can be directly input.
7. Two feeding methods: photoelectric induction and pedal switch feeding are compatible.
8. Easy to clean: The surrounding open design, the dust cover can be opened, and the interior is easy to clean.

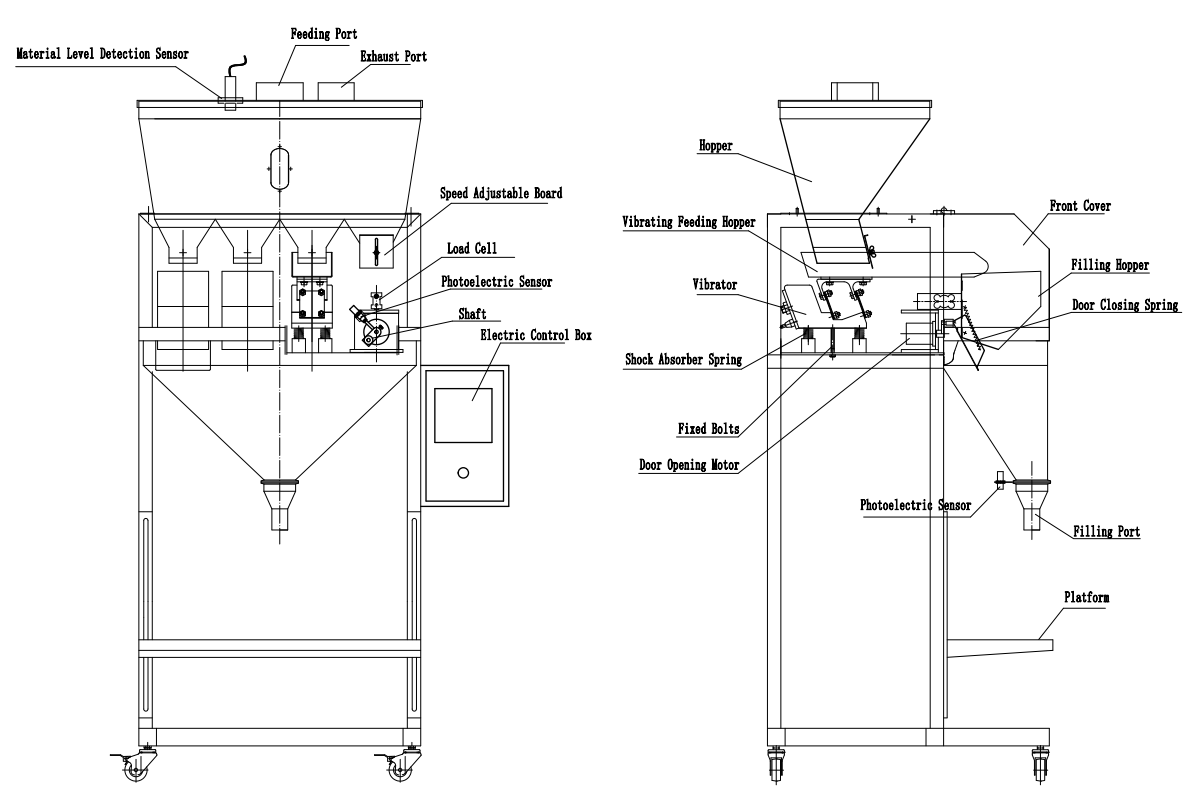

Structure Diagram

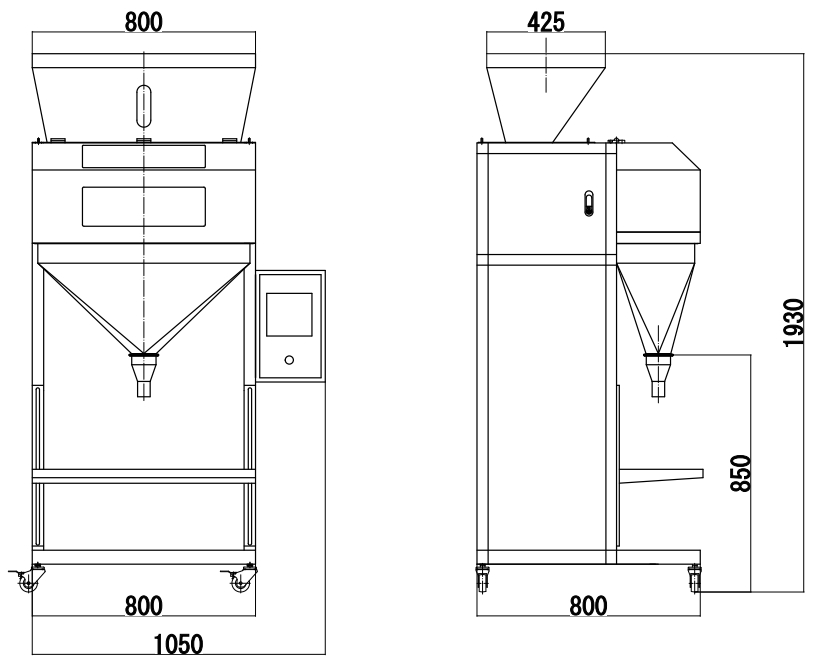

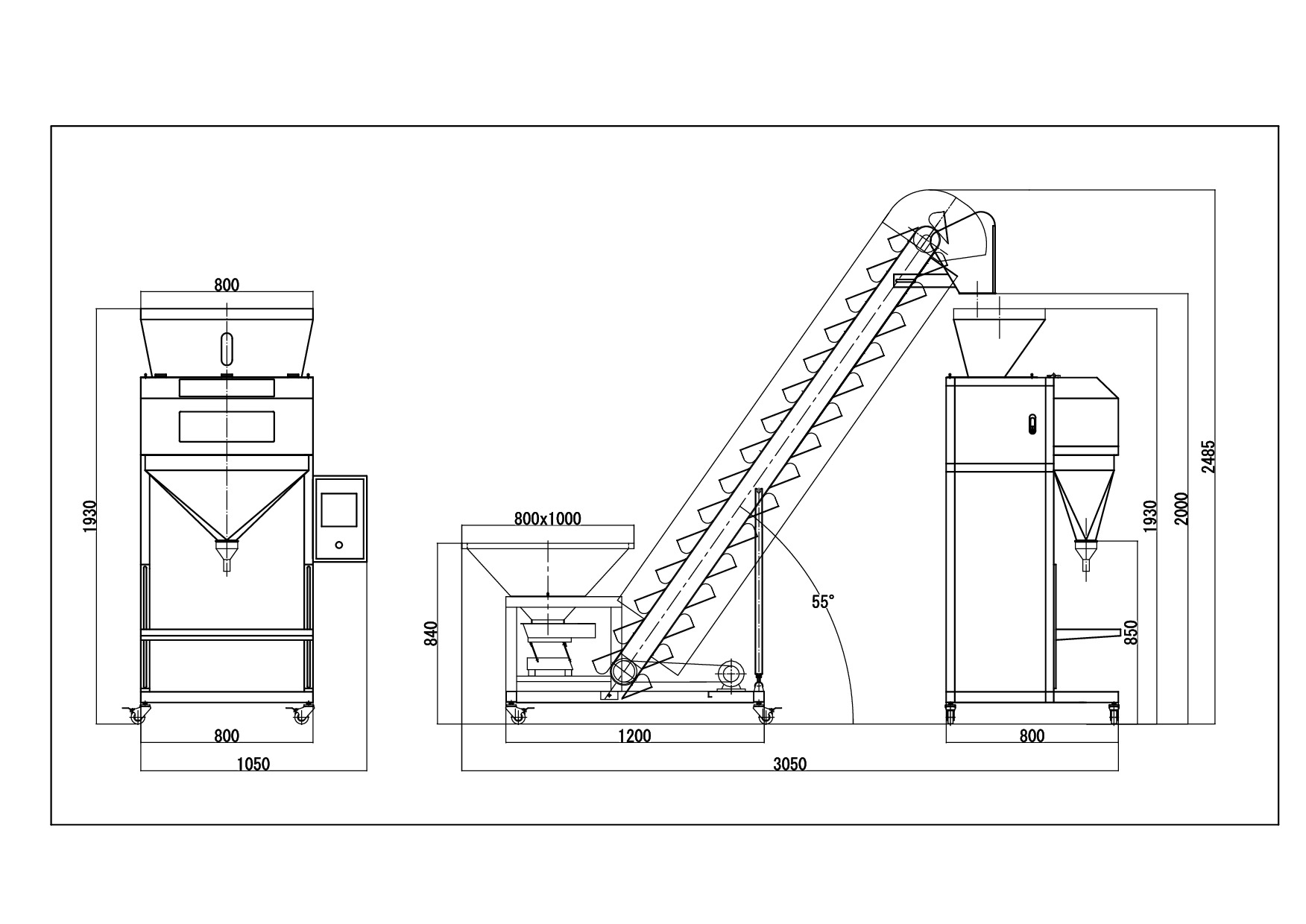

Dimension Diagram
