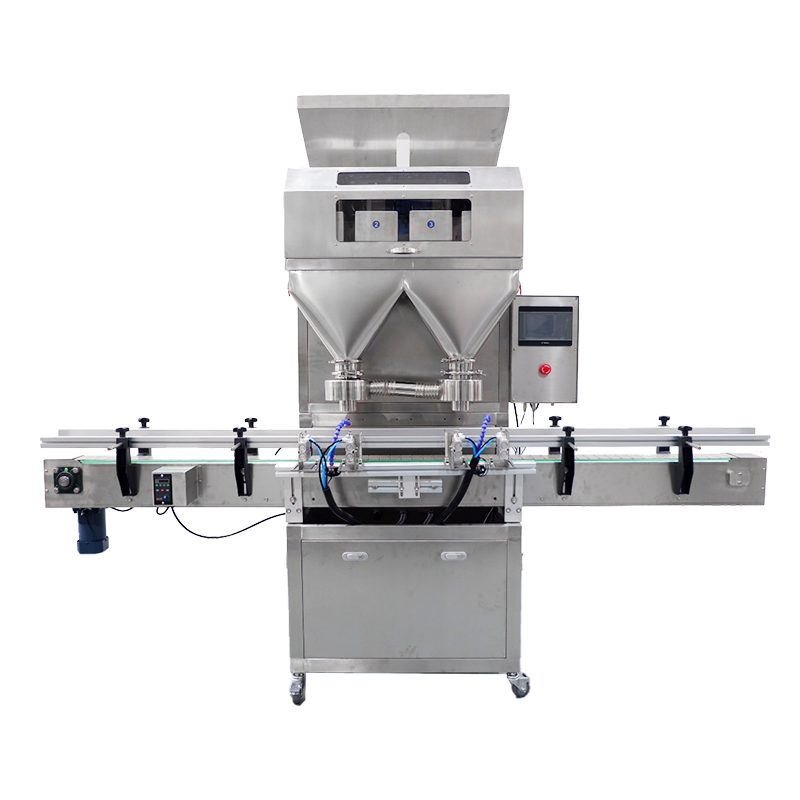

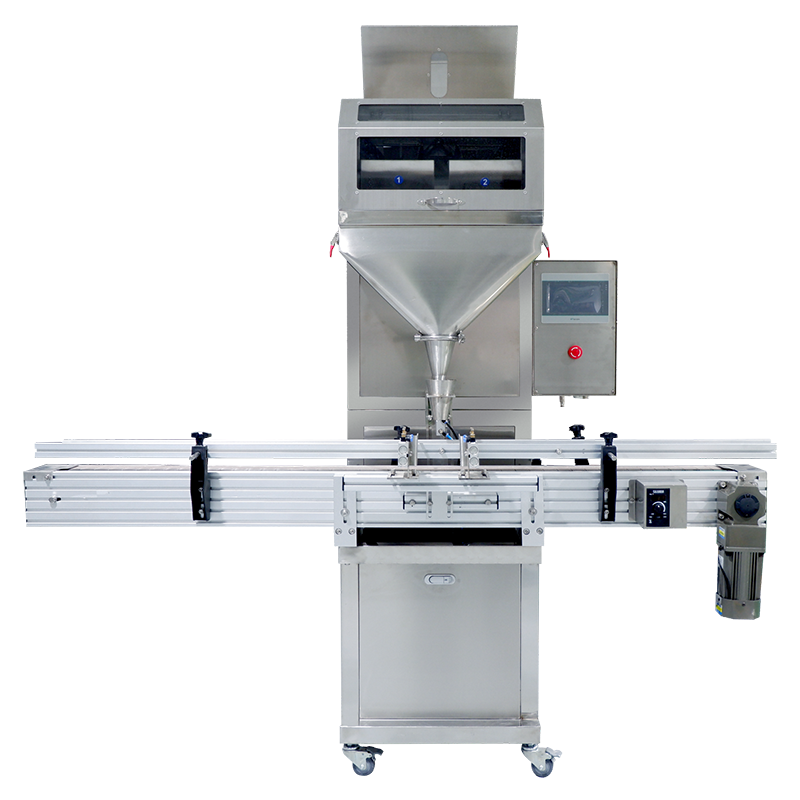

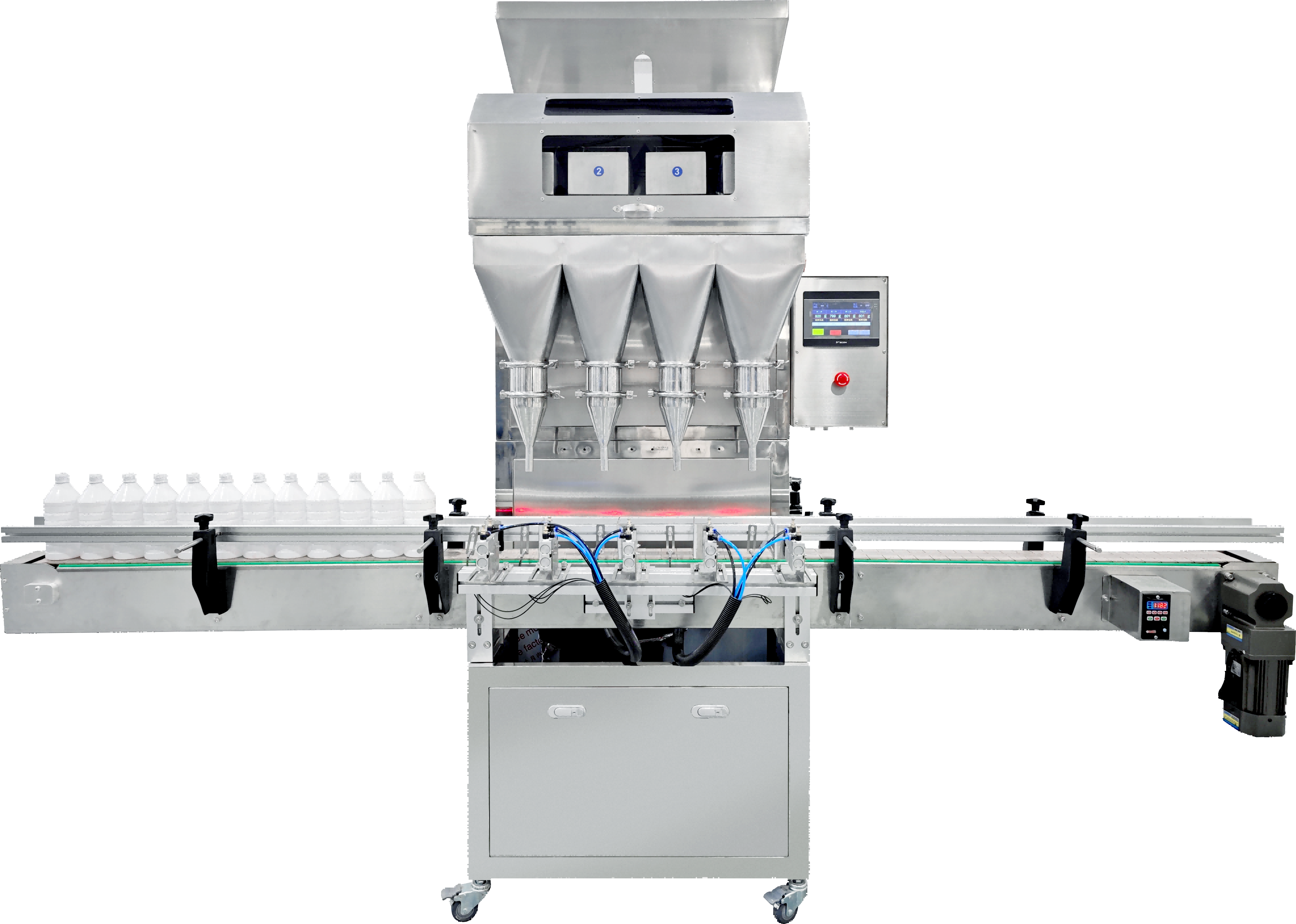

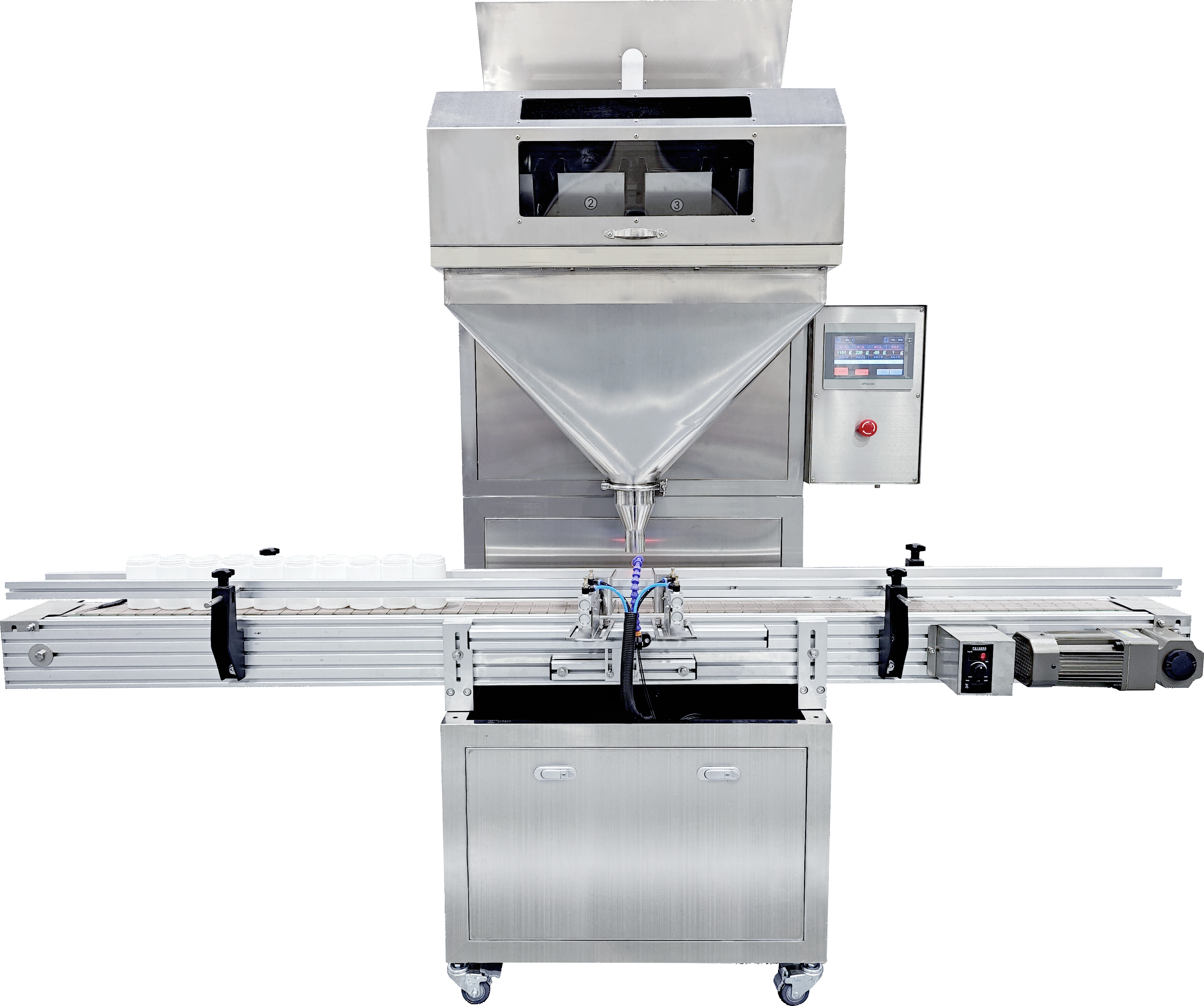

Auto Granule Weighing Filling Machine
Technical Parameters
Filling Port | 1 | 2 | ||||
Specification | 5g-3kg | |||||
Hopper Volume | 3.5L | 5L | ||||
Hopper QTY | 4 | |||||
Port Diameter | 22mm | 32mm | 45mm | 60mm | 76mm | 89mm |
Speed | 600-1800 bottles/h | |||||
Accuracy | ≤±0.3% | |||||
Power | 1.5kw | |||||
Conveyor Length | 2000mm~3000mm | |||||
Detailed Introduction
Accessory:
 |  |
| Different sizes of filling part | Can add dust cover connected to vacuum |
 |  |
| Good quality vibrator | Can add a cover to collect dust |
 |
|

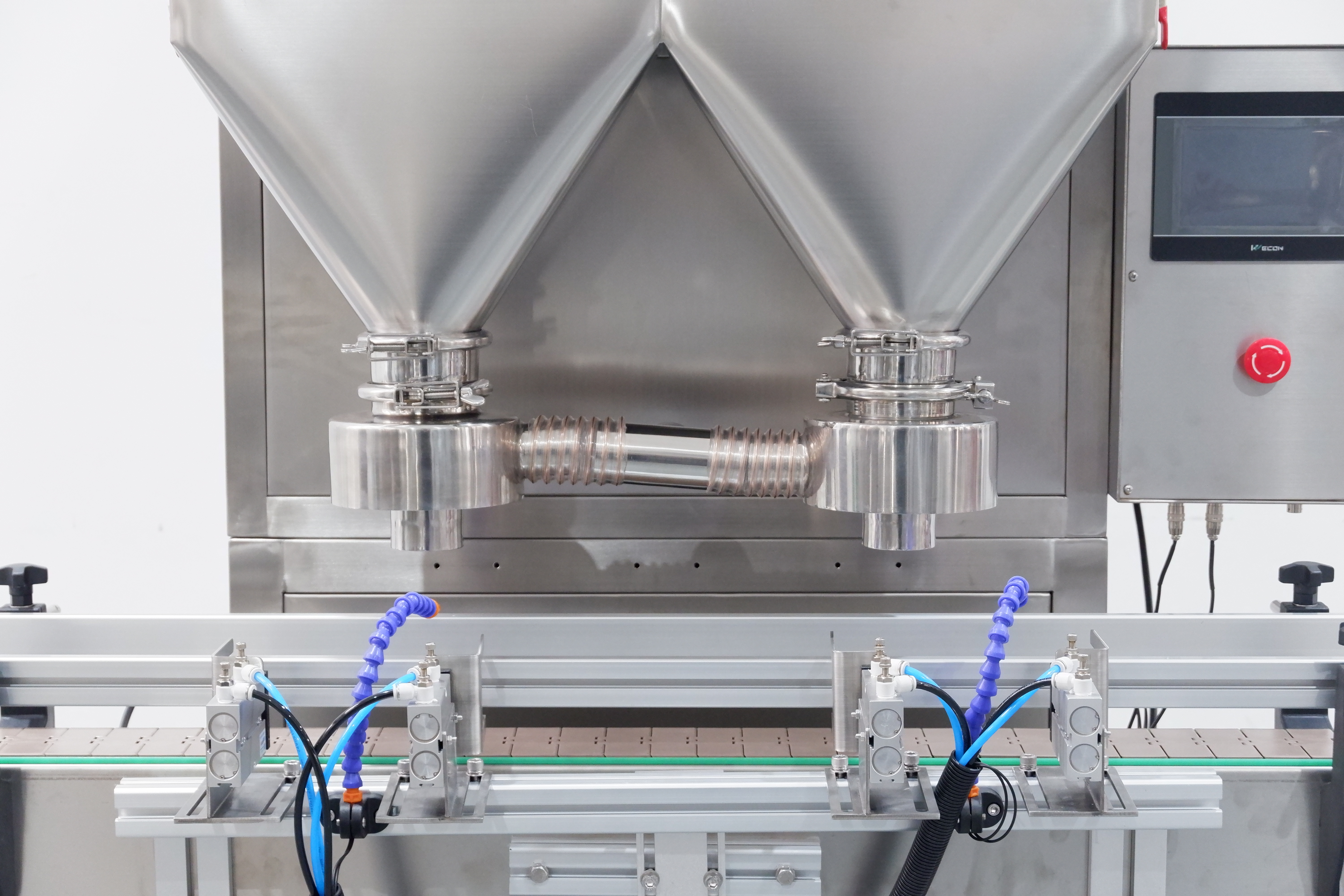

Dust-proof cover | Can connect to vacuum cleaner to remove dust |
 |  |
| Can add a cover to protect load cells | Telfon for sticky granule |

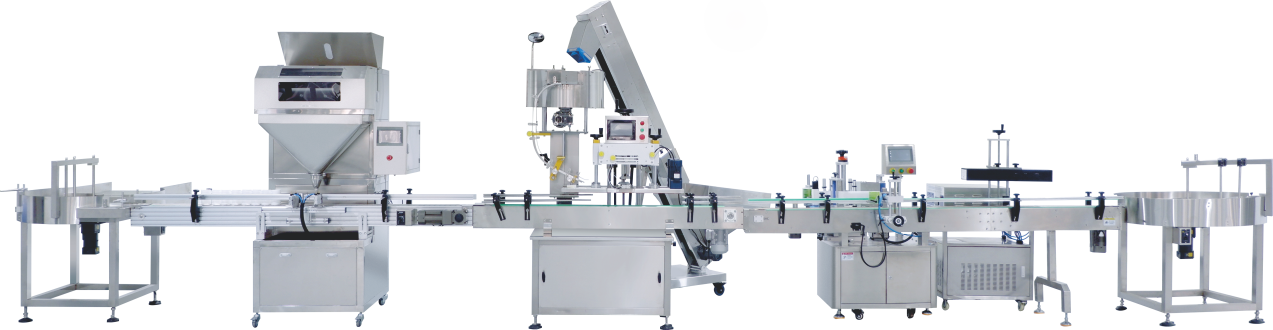

Supporting Equipment:
|  |  |
| Bucket Feeder | Bucket Feeder | Vacuum Feeder |
 |
|
|

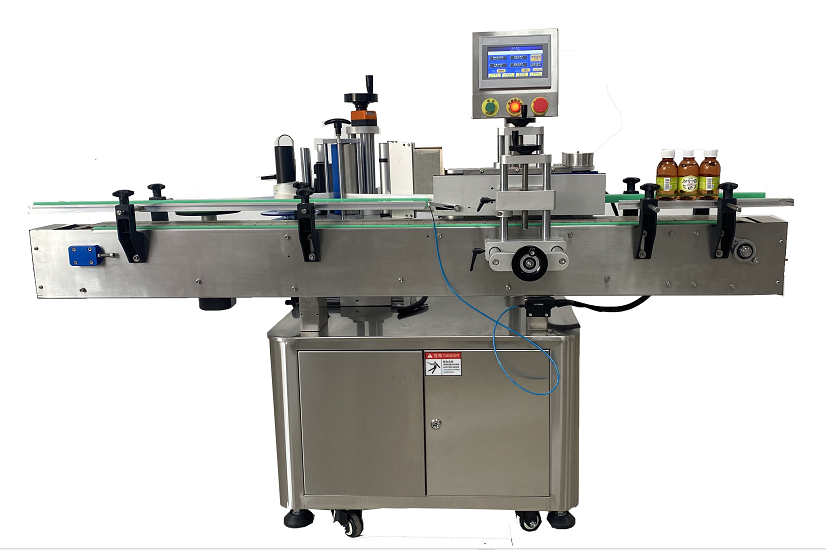

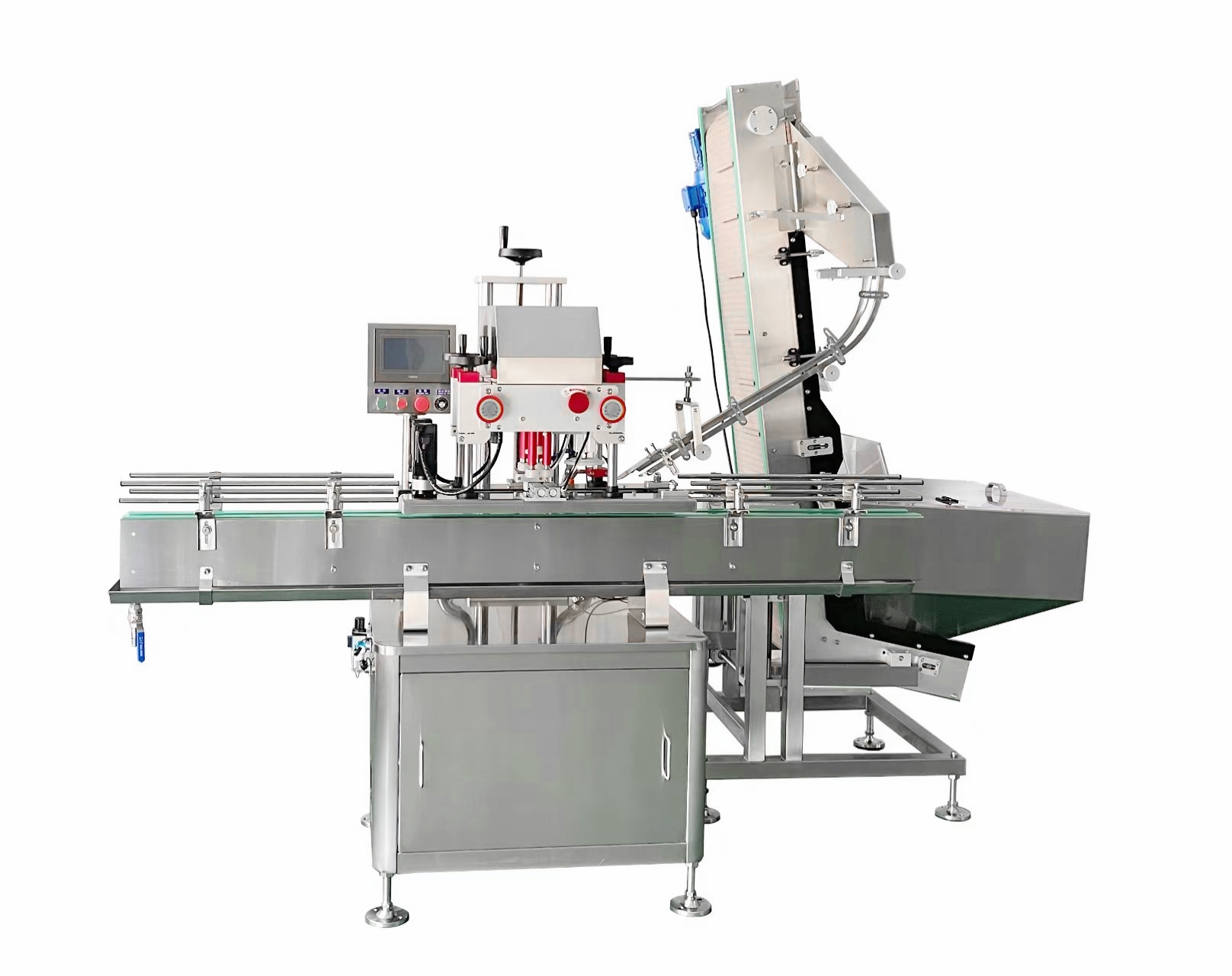

| Vacuum Dust Cleaner | Capping Machine | Labeling Machine |
Working Principle:
0-2.8KG: Fast Filling(Weighing)
Material enters into vibration feeder and vibration starts fast filling until reaching the "fast weight".
2.8-3KG: Slow Filling(Weighing)
Vibration starts slow filling until reaching the "slow weight".
“2.8KG” “3KG” is just an example,the specific setting depends on the situation.
Advantages and Characteristics
1. Stability: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.
2. Fast speed: Double weighing buckets measure and discharge alternately.
3. High accuracy: Step-type multi-speed feeding, small error.
4. Auto Calculation: The system can automatically calculate the fast and slow weight, and correct the error value.
5. Stable structure: One weighing bucket corresponds to one vibrator and one weighing sensor, which are independent of each other.
6. Simple operation: Equipped with electronic touch screen, weight parameters can be directly input.
7. Two feeding methods: photoelectric induction and pedal switch feeding are compatible.
8. Easy to clean: The surrounding open design, the dust cover can be opened, and the interior is easy to clean.
Structure Diagram

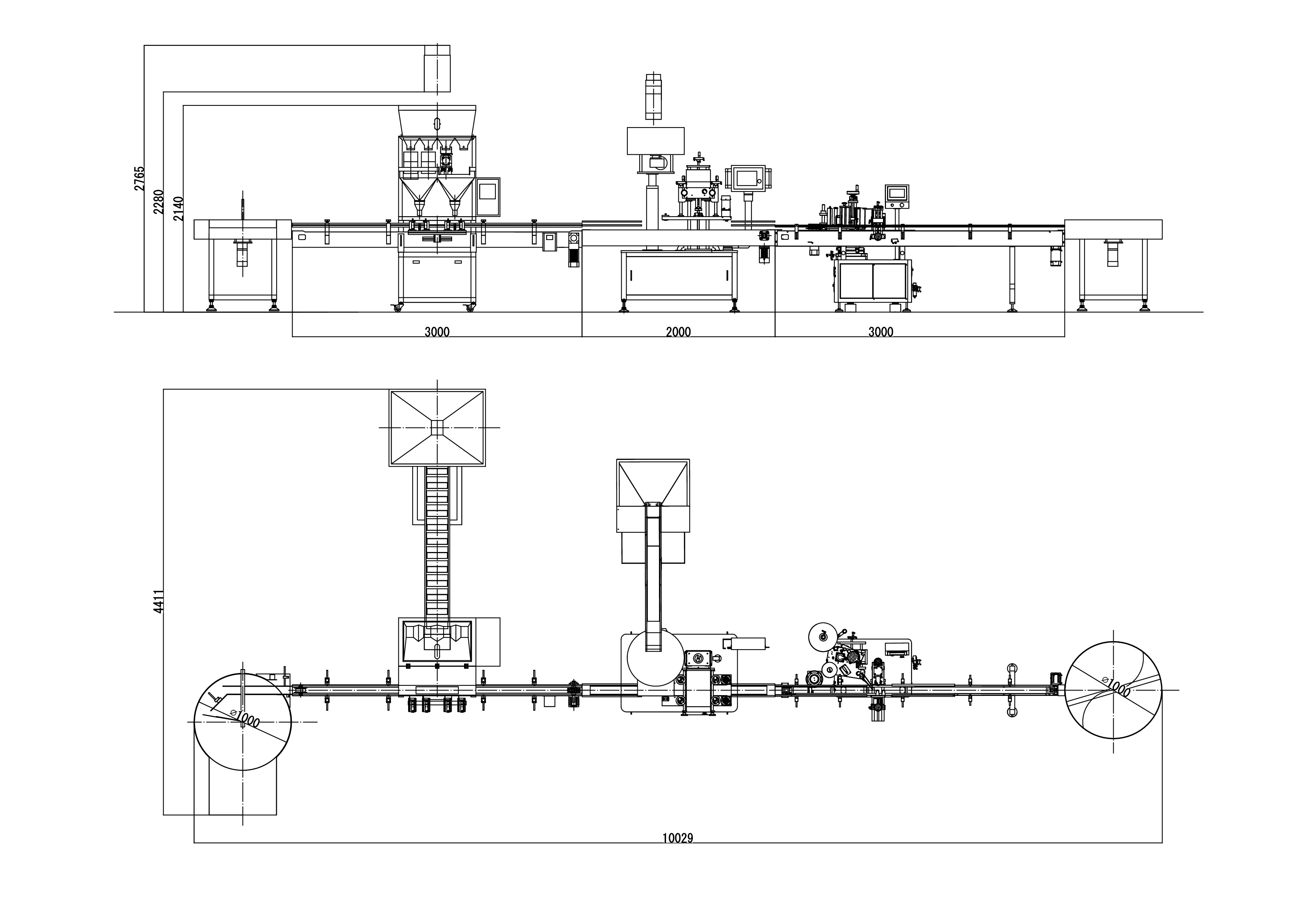

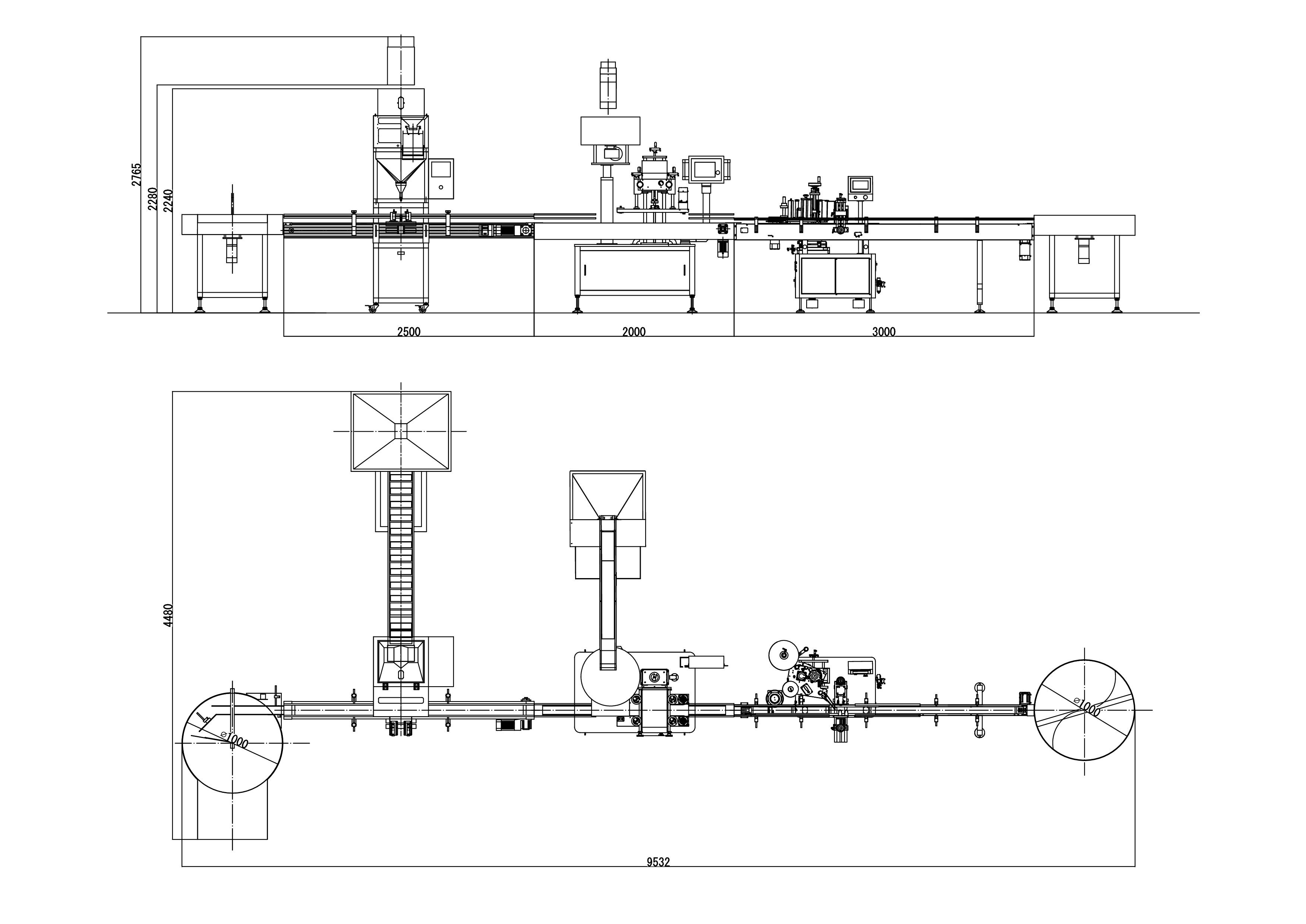

Dimension Diagram
