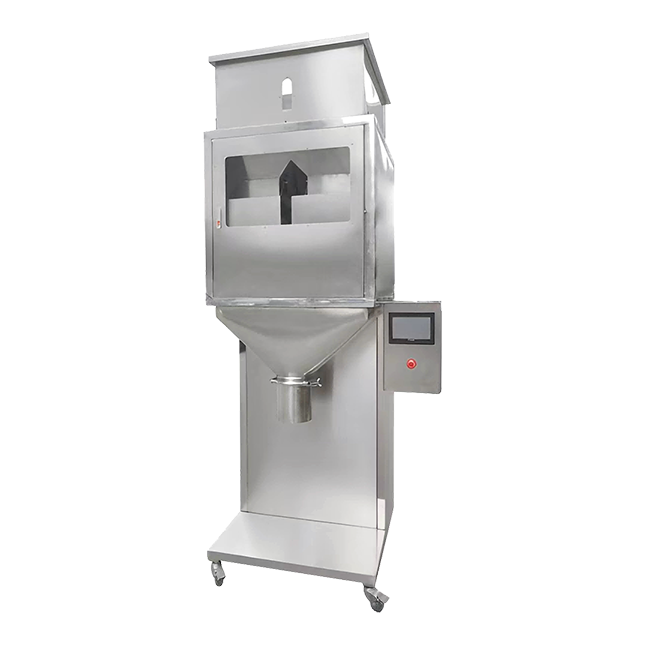

GMB-25kg Granule Weighing Filling Machine (Double Scale)
Technical Parameters
Specification | 500g-25KG (dependent on material) | ||
Hopper Volume | 29L | 32L | 42L |

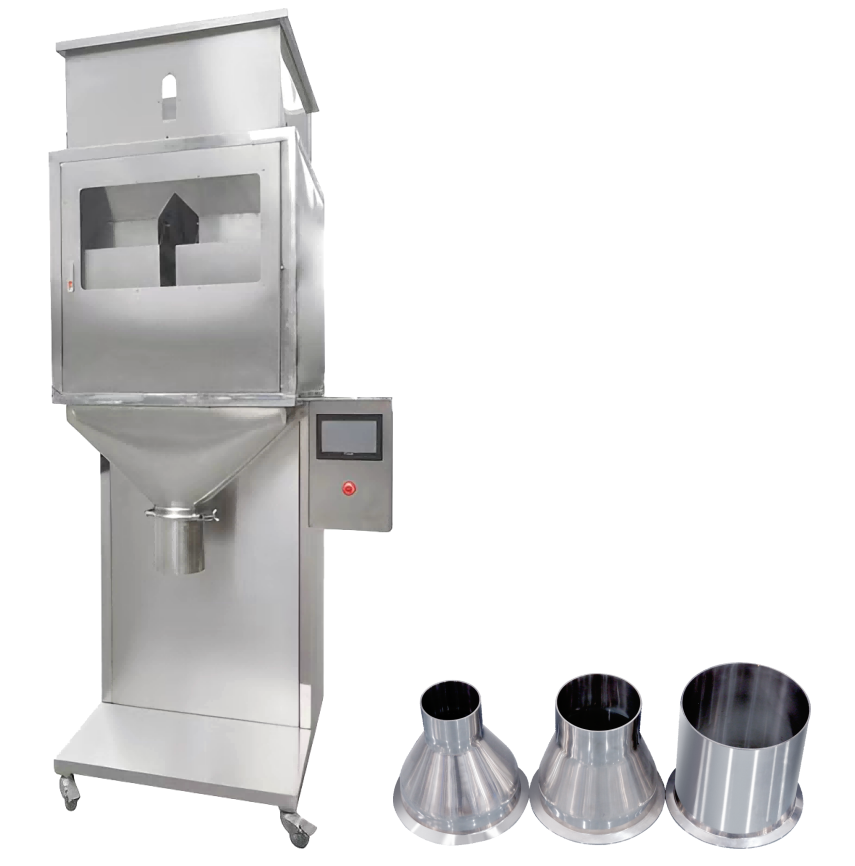

Filling Port | 89mm/108mm/133mm/159mm | ||
Speed | 240-1500bags/h (Depends on Material) | ||
Accuracy | ≤±0.2% (Depends on Material) | ||
Voltage | AC220V 1KW | ||
Detailed Introduction
Accessory:
|  |
| Weighing hopper | Good quality vibrator |
 |  |
| Can add a roller conveyor to connect the sealer | Can add a conveyor to connect the sealer |
 |
|

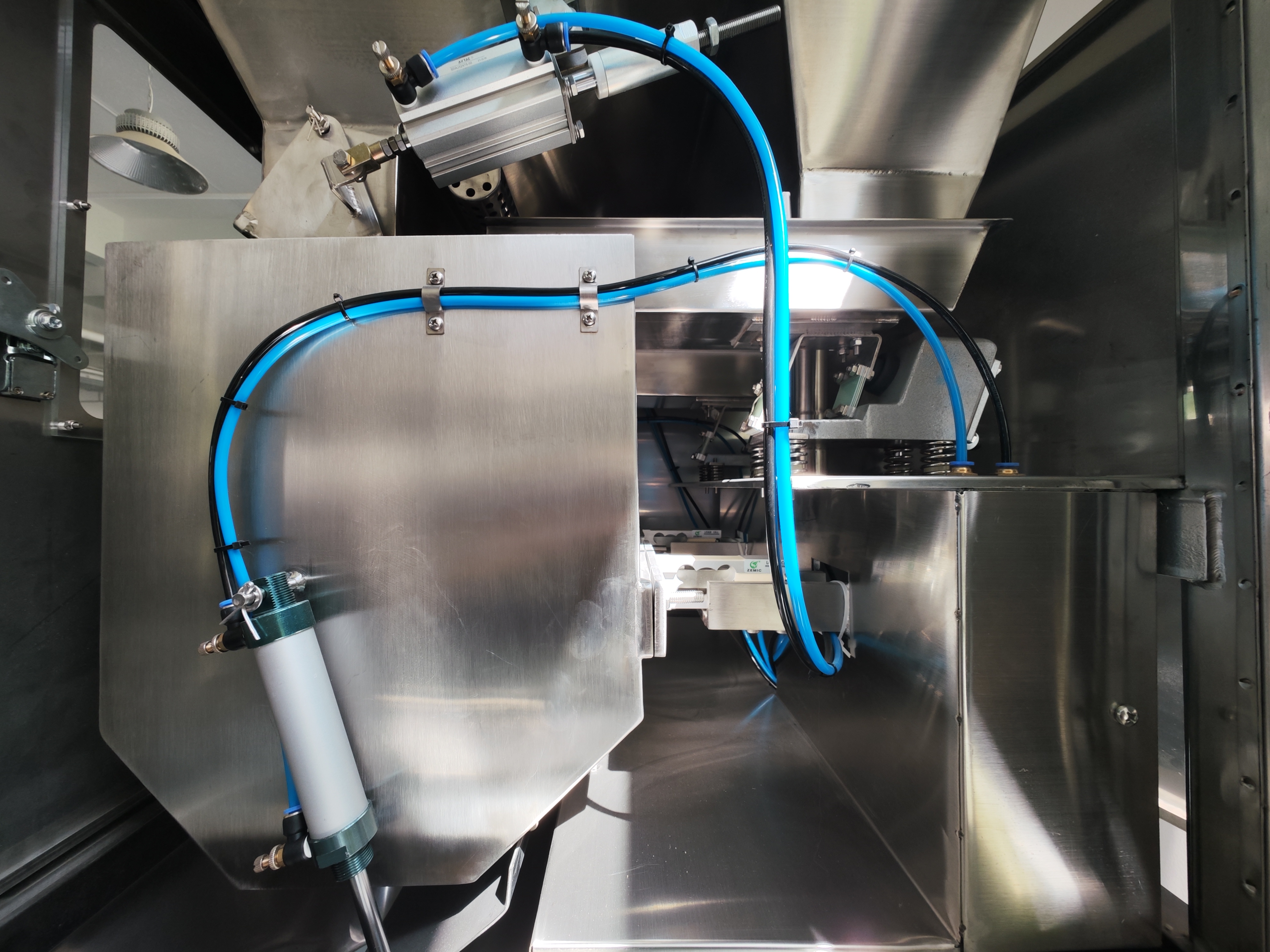

The cylinder controls filling material | Dust-proof cover |
 |  |
| Can connect to vacuum cleaner to remove dust | Can add a cover to collect dust |
Supporting Equipment:
|  |  |
| Bucket Feeder | Bucket Feeder | Vacuum Feeder |
 |
|
|

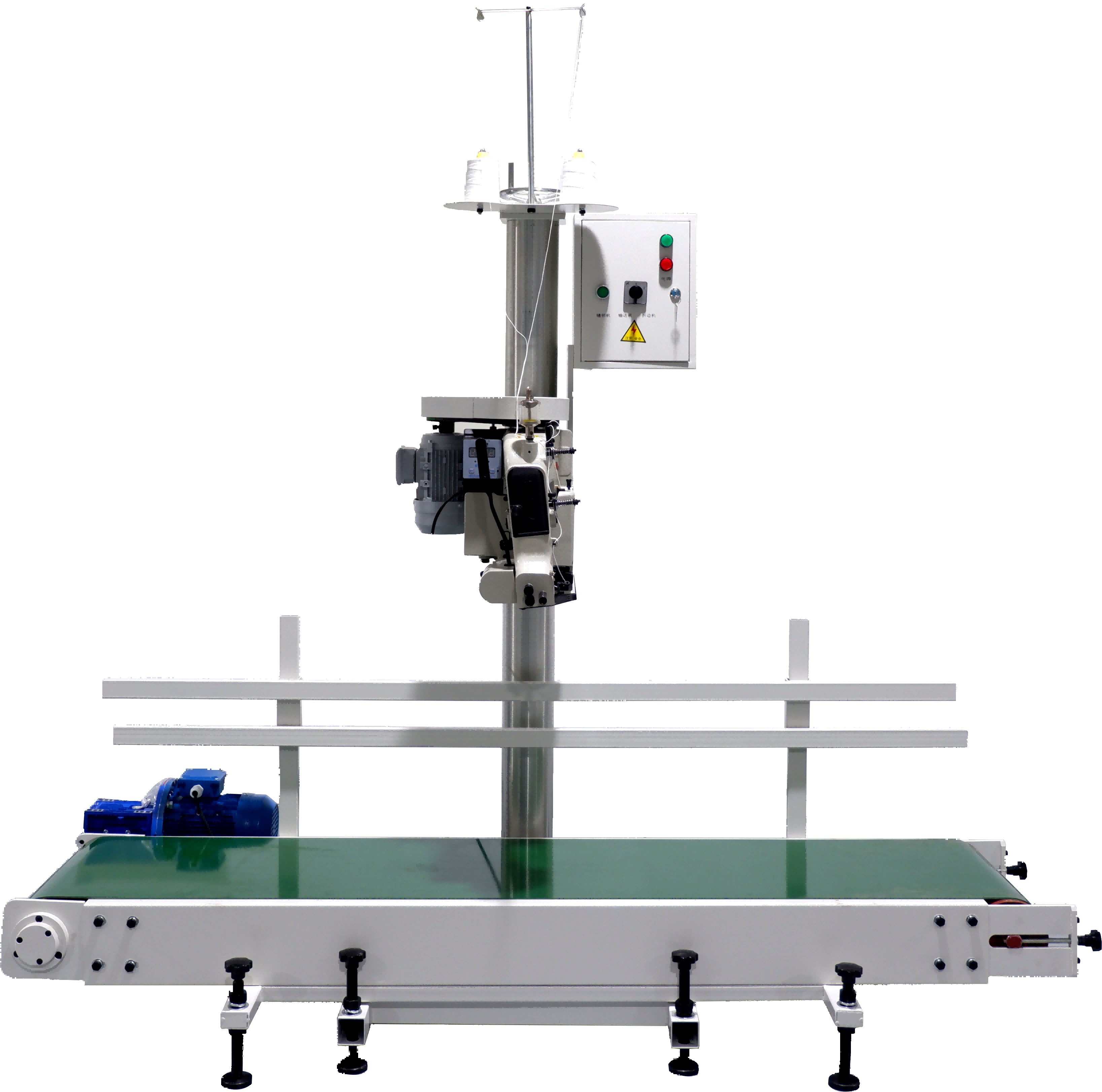

| Vacuum Dust Cleaner | Sealing Machine | Sewing Machine |
Working Principle:
0-24.90kg: Self-Flowing Filling (Weighing) + Vibrator Fast Filling (Weighing)
Material enters into self-flowing hopper falling by gravity. At the same time, Vibration hopper starts fast filling.
After reaching the “fast weight”, self-flowing hopper is closed by cylinder and vibration hopper starts slow filling
24.90-25.00kg: Vibrator Slow Filling (Weighing)
Vibration starts slow filling until reaching the “slow weight”
“24.90kg” “25.00kg” is just an example,the specific setting depends on the situation.
Advantages and Characteristics
1. Stability: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.
2. Fast speed: Combining gravity feeding and vibration feeding, double weighing hoppers measure and discharge alternately.
3. High accuracy: Step-type multi-speed feeding, small error.
4. Auto Calculation: The system can automatically calculate the fast and slow weight, and correct the error value.
5. Stable structure: One weighing bucket corresponds to one vibrator and one weighing sensor, which are independent of each other.
6. Simple operation: Equipped with electronic touch screen, weight parameters can be directly input.
7. Easy to clean: The surrounding open design, the dust cover can be opened, and the interior is easy to clean.

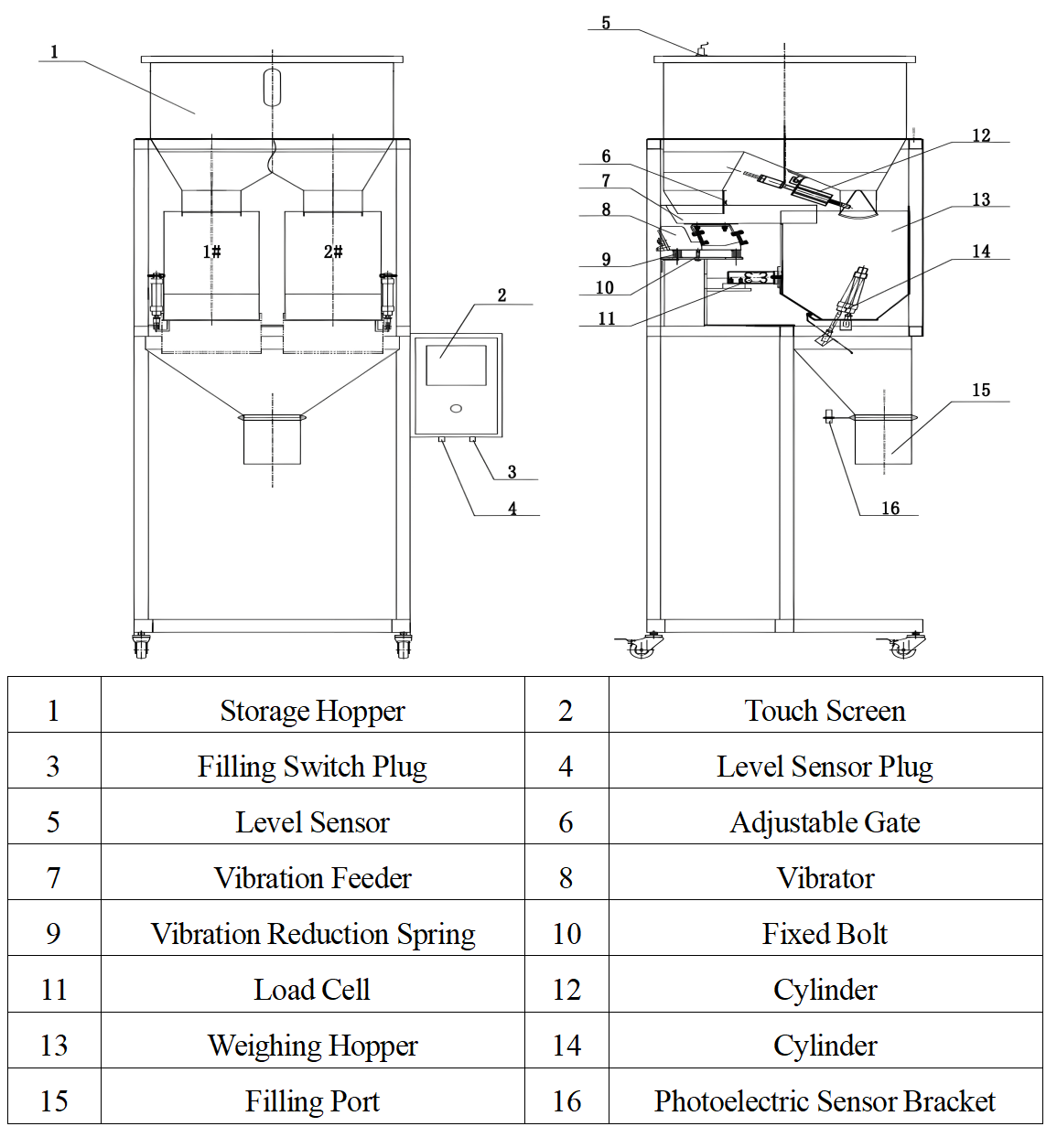

Structure Diagram

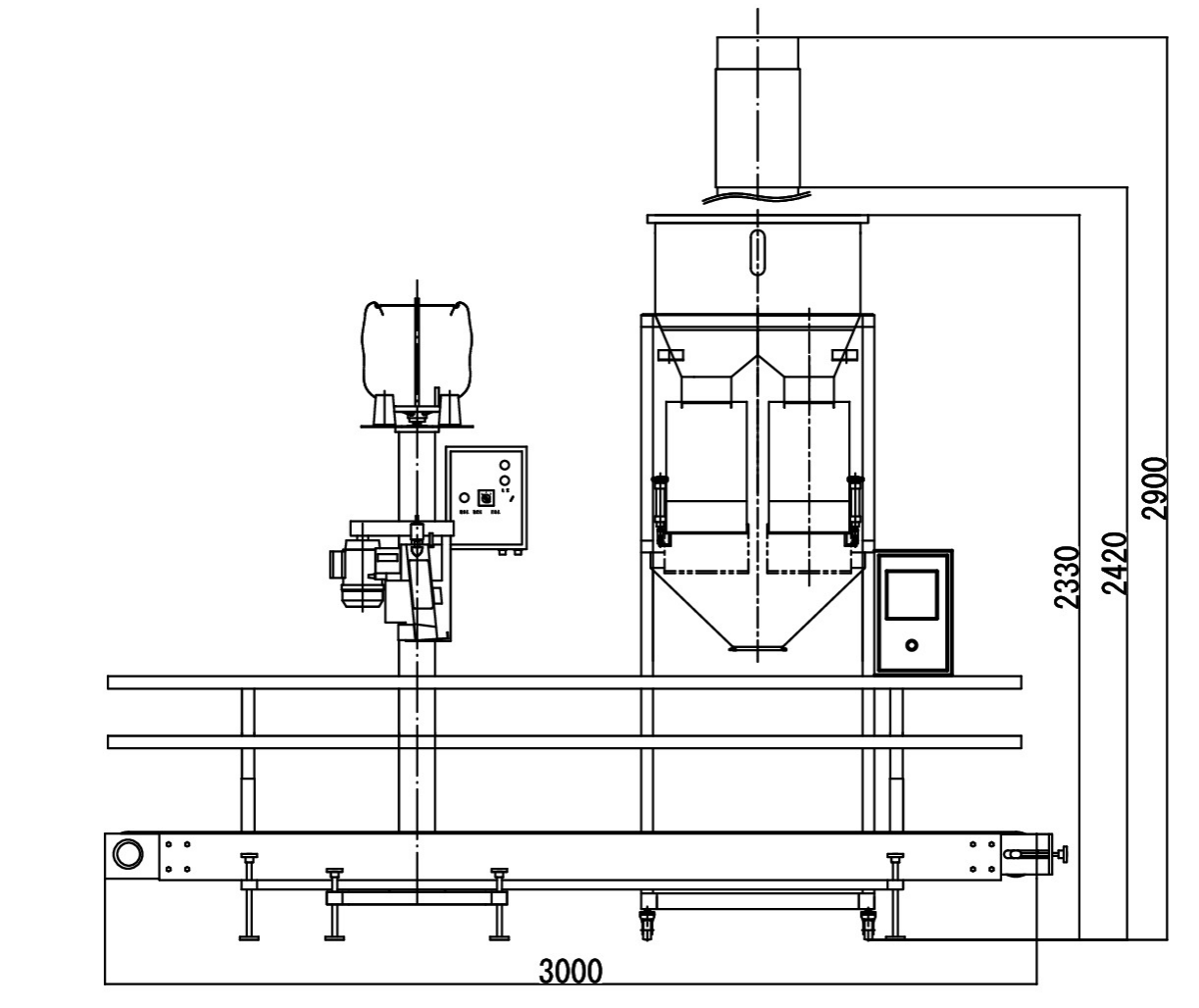

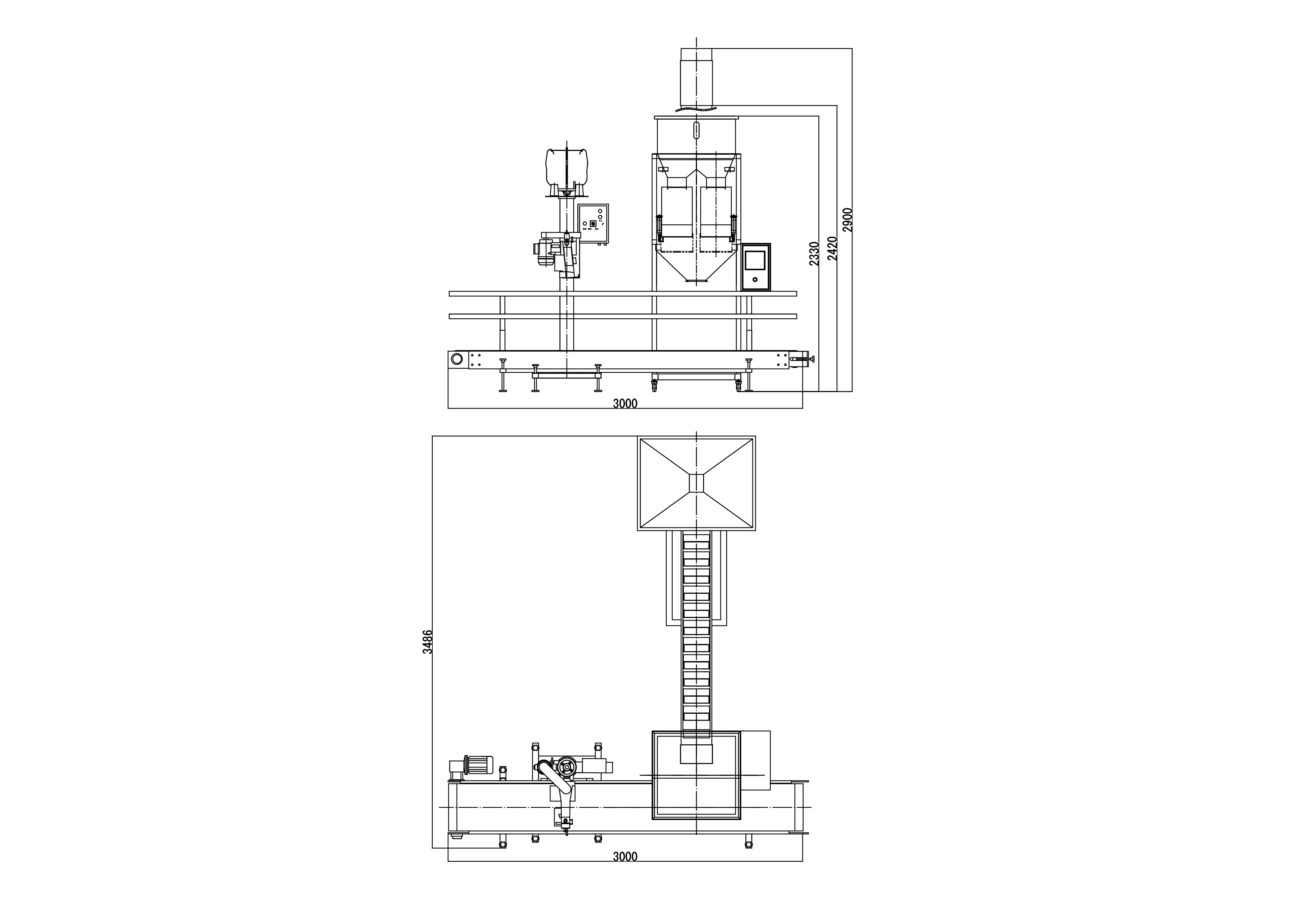

Dimension Diagram
