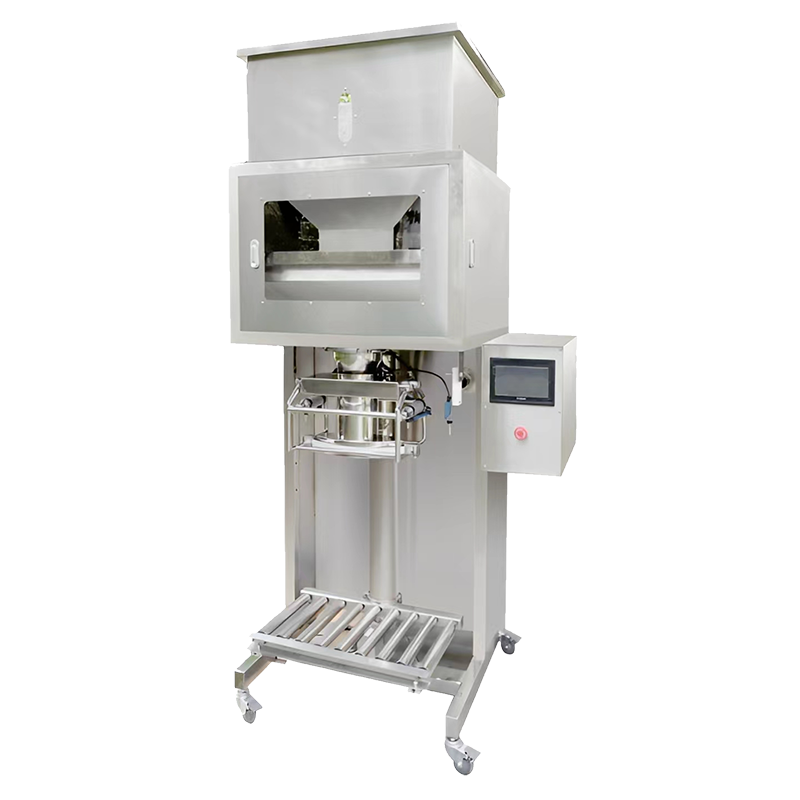

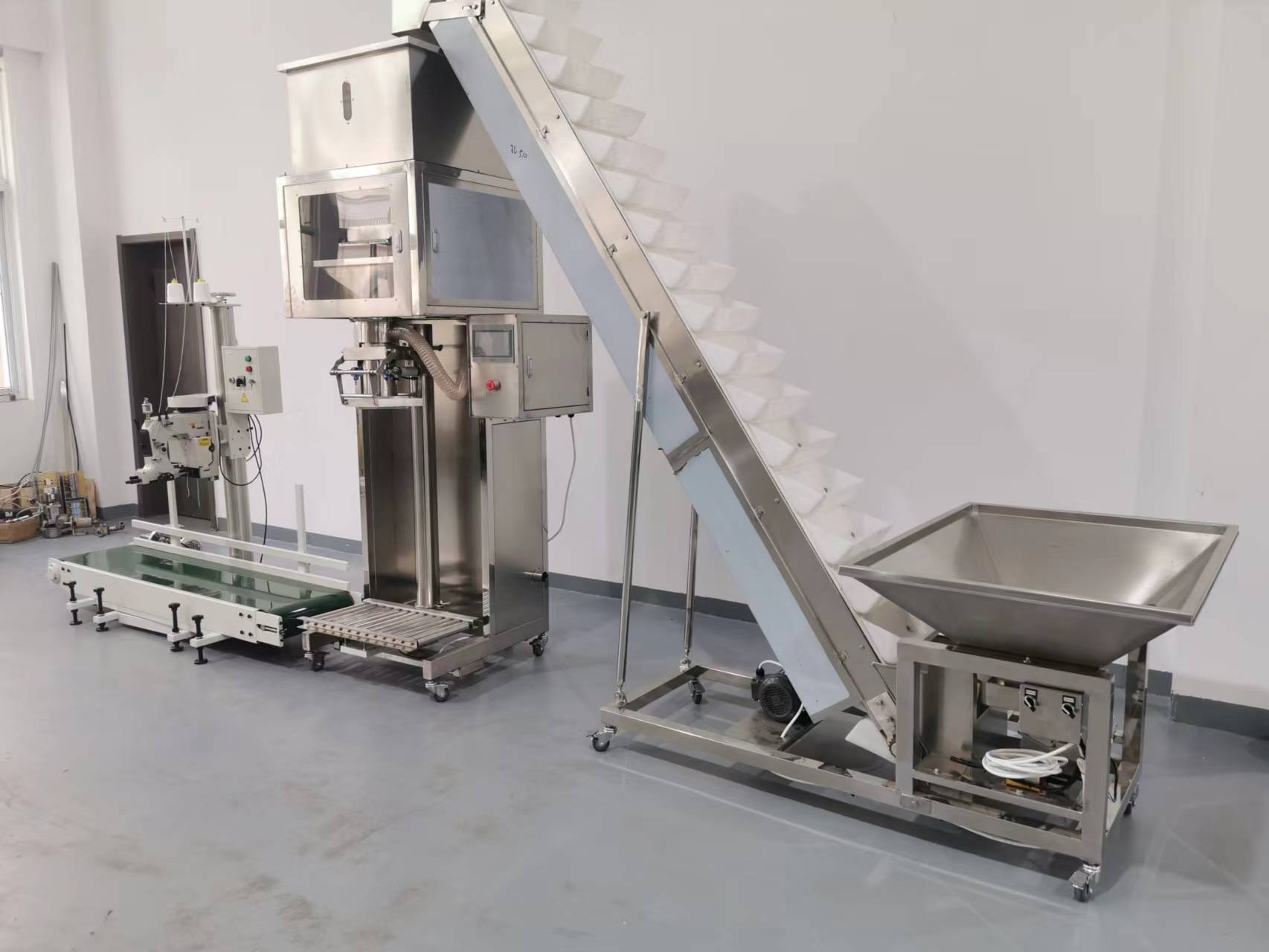

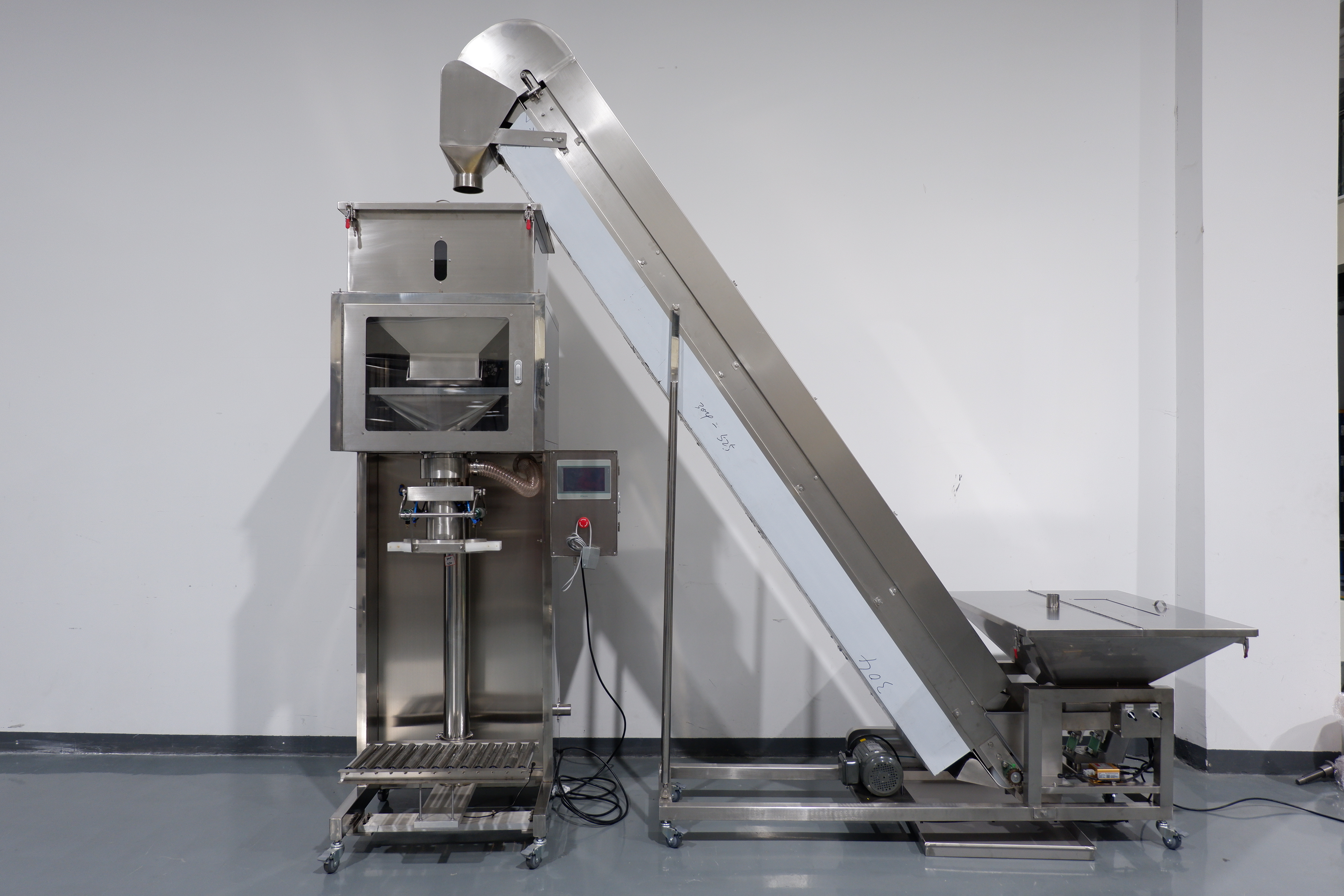

GMB-50kg Granule Weighing Filling Machine
Technical Parameters
Specification | 5kg-50kg (Depend on materials) |
Accuracy | ≤0.3% (Depend on materials) |
Speed | 150-400 bags/h (Depend on materials) |
Voltage | AC220V |
Power | 1kw |
Weight | 280kg |
Dimension | L 1000×W 750×H 2400mm |
Detailed Introduction
Accessory:
 |  |

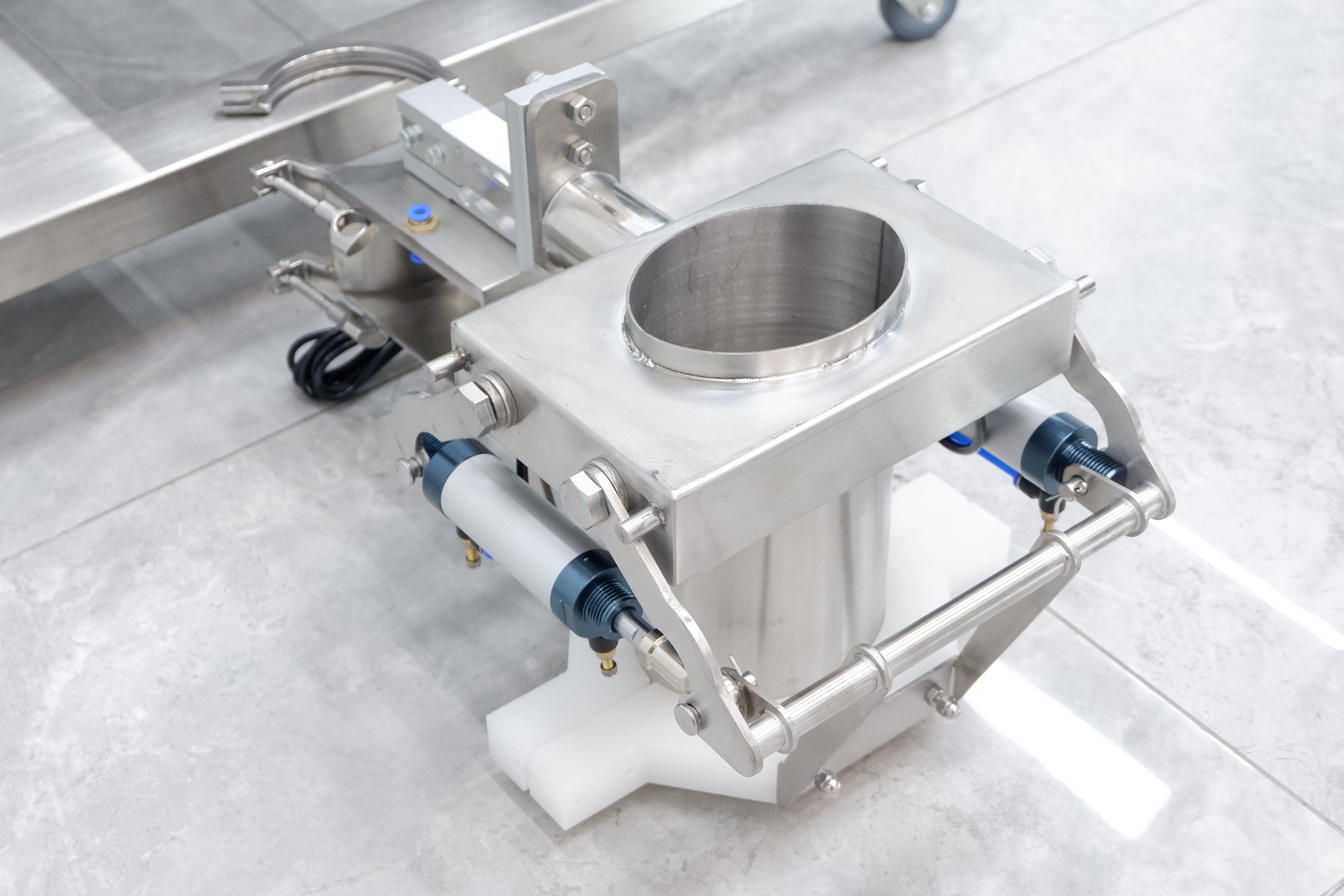

| Clamping and weighing device | Good quality vibrator |
 |  |

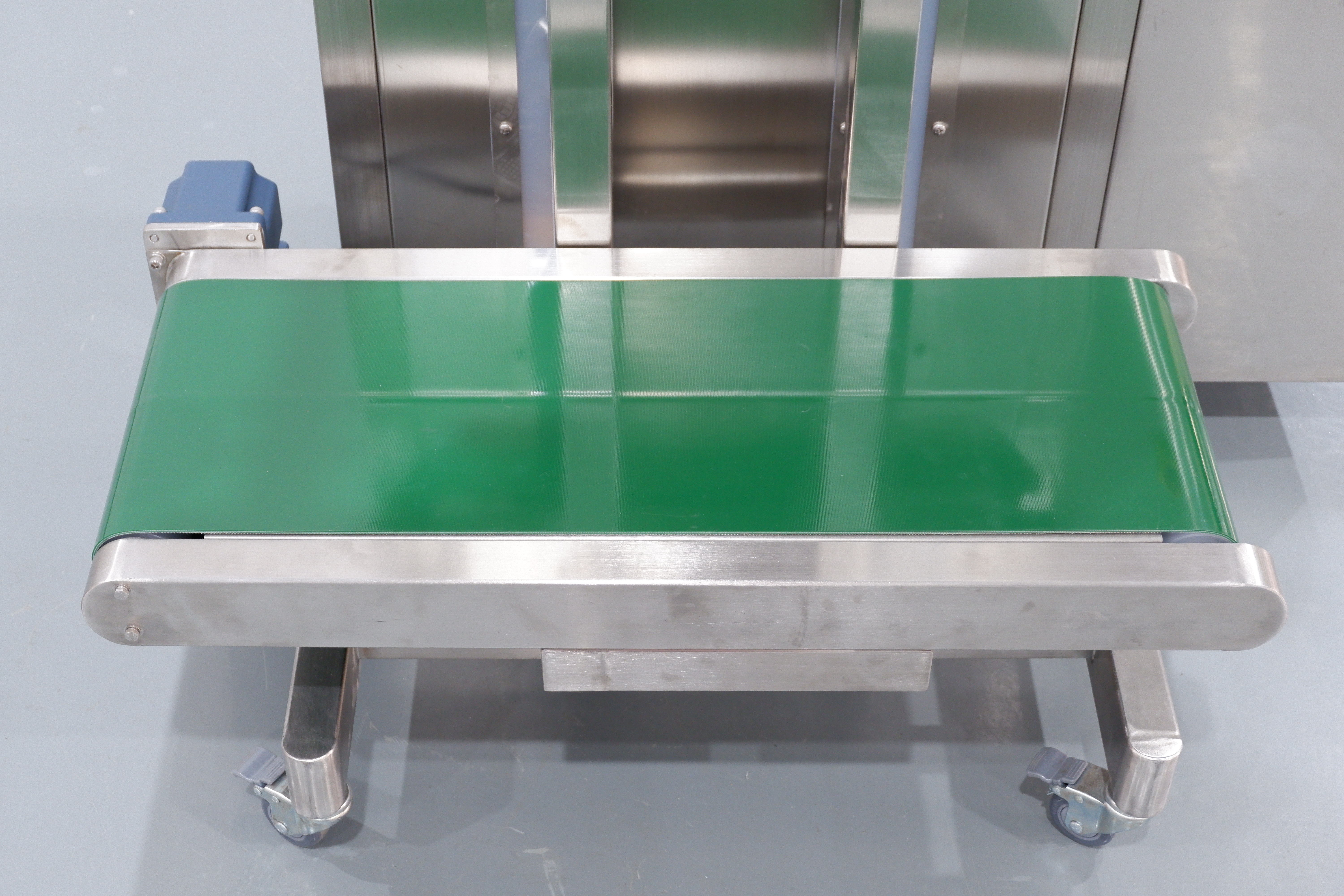

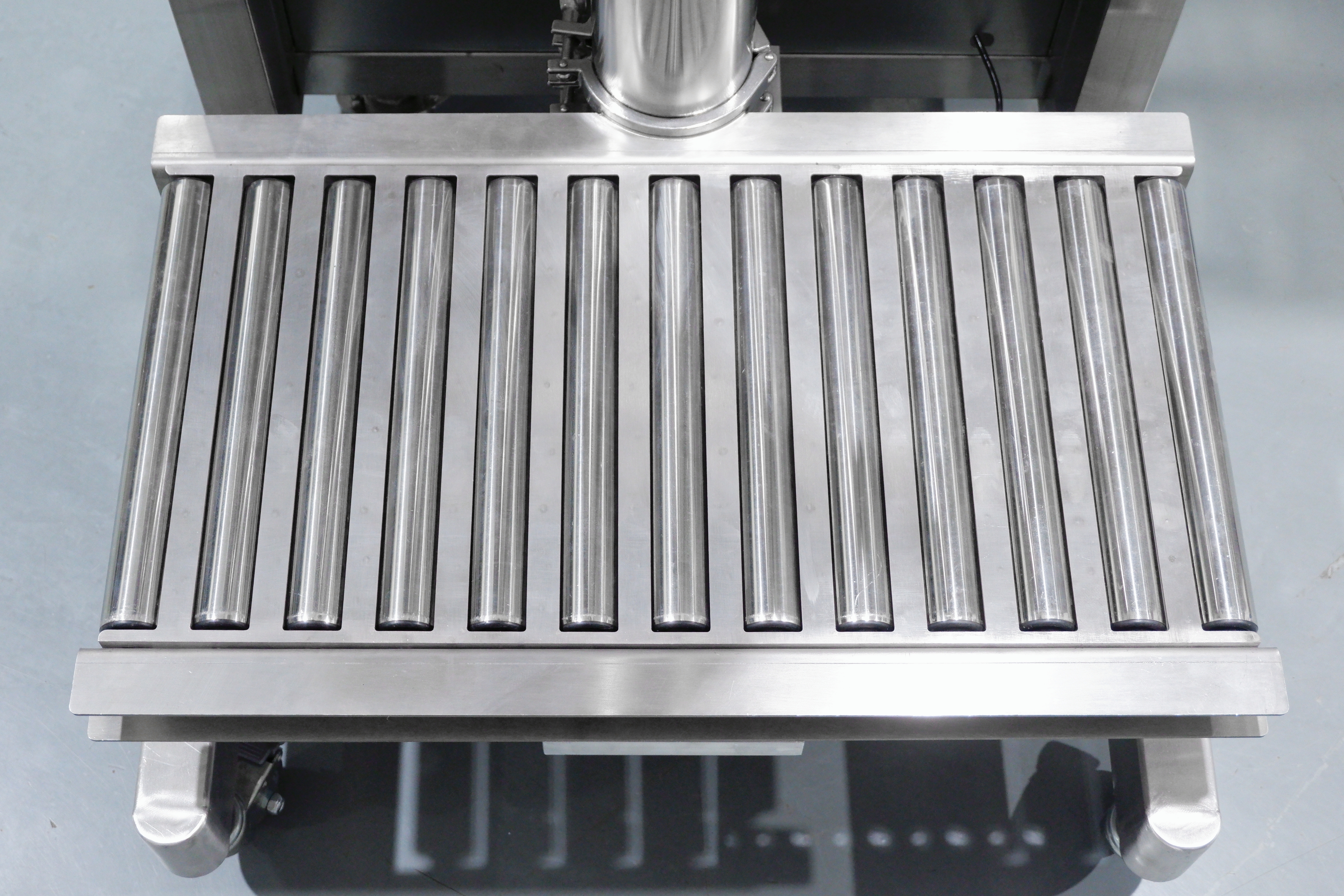

| Conveying roller | Conveyor with motor |
 |
|

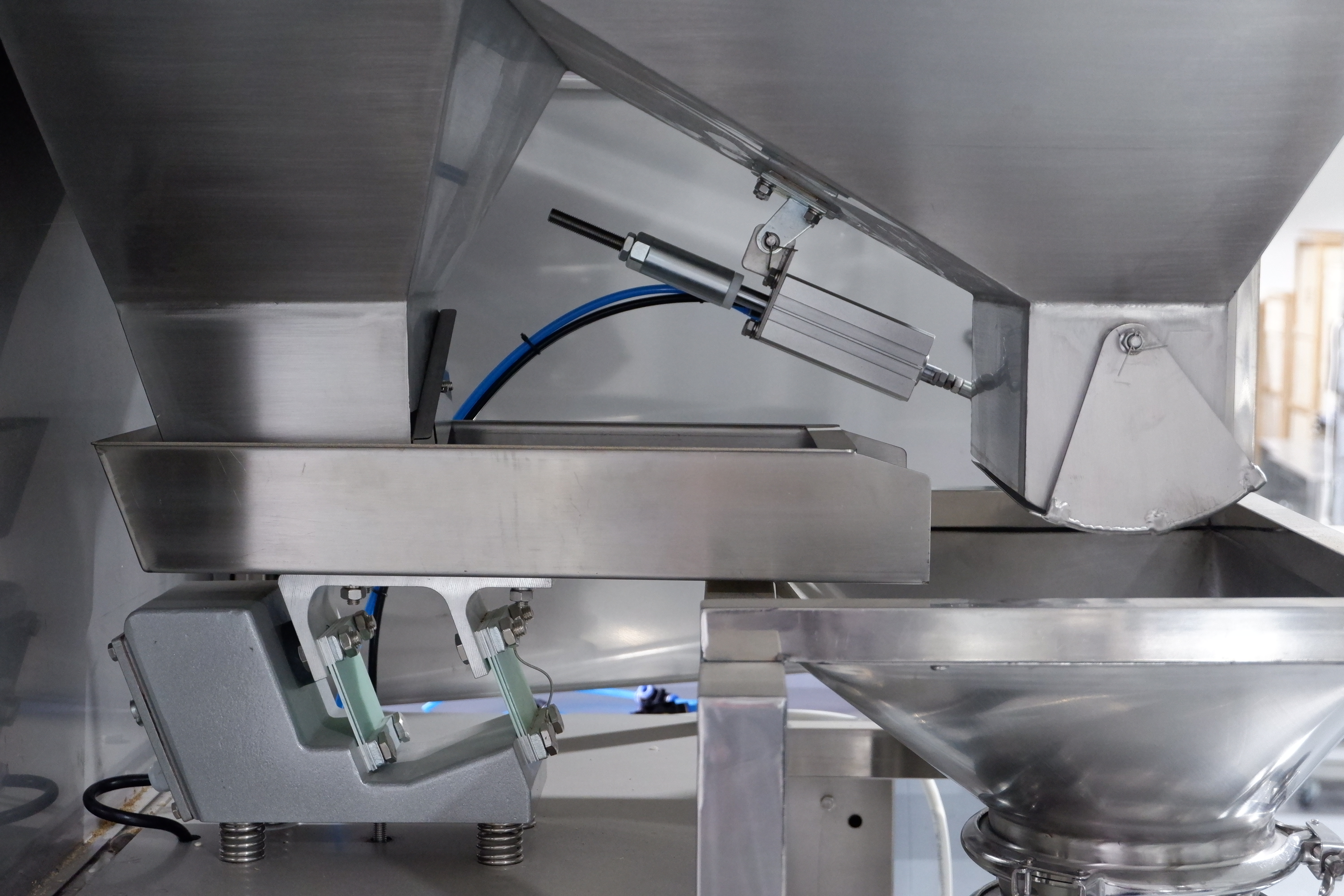

The cylinder controls filling material | Dust-proof cover |
 |  |
| Can connect to vacuum cleaner to remove dust | Can add a cover to collect dust |

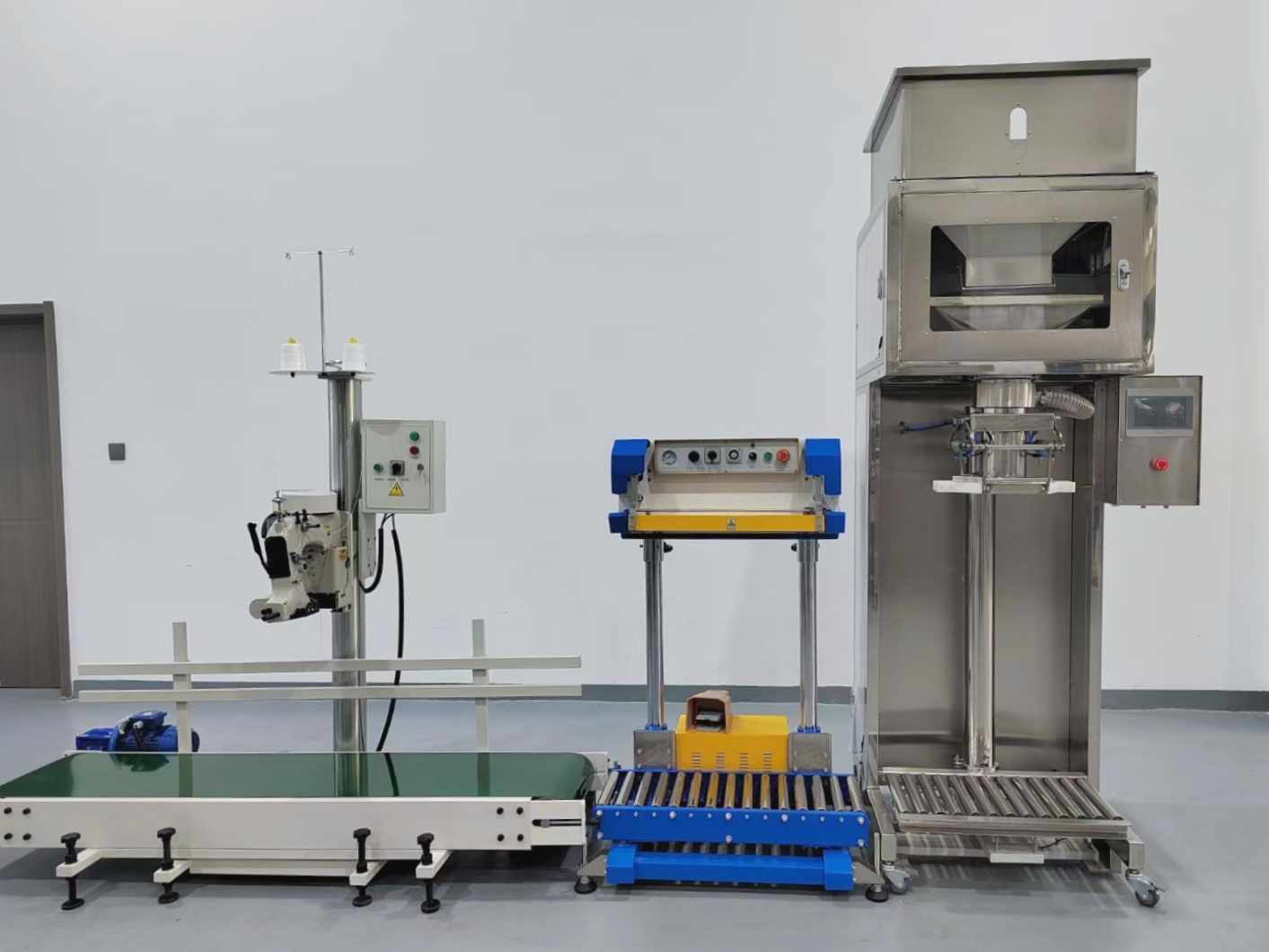

Supporting Equipment:
|  |  |
| Bucket Feeder | Bucket Feeder | Vacuum Feeder |
 |
|
|

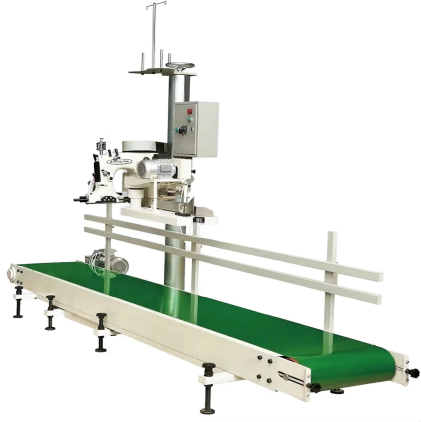

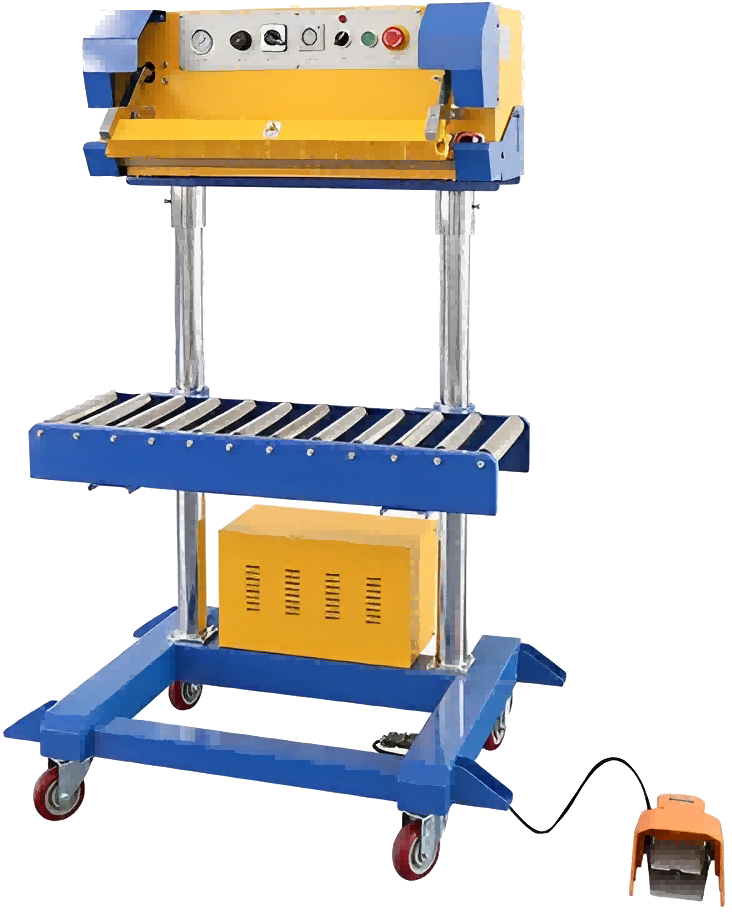

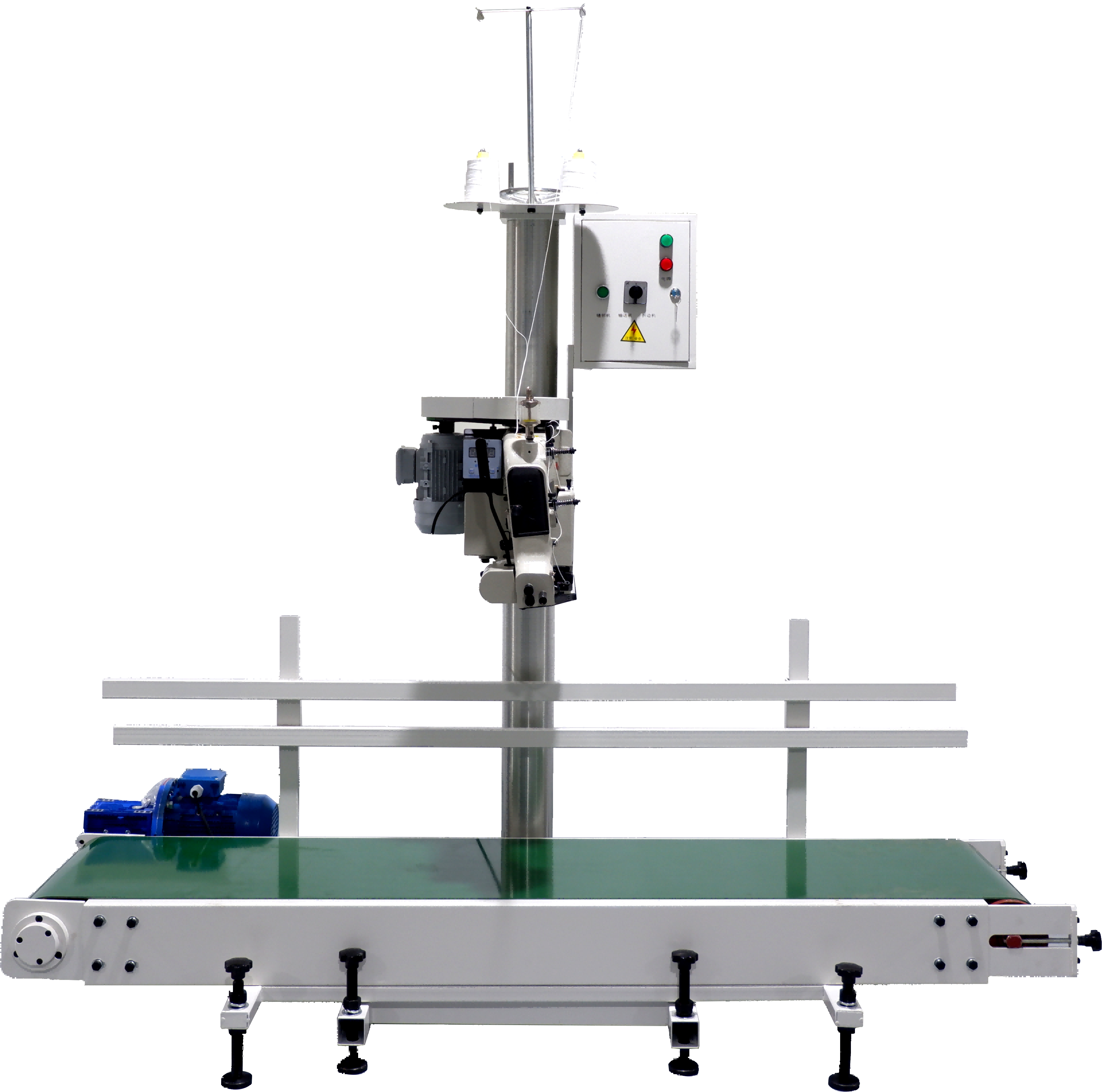

| Vacuum Dust Cleaner | Sealing Machine | Sewing Machine |
Working Principle:
0-24.90kg: Self-Flowing Filling (Weighing) + Vibrator Fast Filling (Weighing)
Material enters into self-flowing hopper falling by gravity. At the same time, Vibration hopper starts fast filling.
After reaching the “fast weight”, self-flowing hopper is closed by cylinder and vibration hopper starts slow filling
24.90-25.00kg: Vibrator Slow Filling (Weighing)
Vibration starts slow filling until reaching the “slow weight”
“24.90kg” “25.00kg” is just an example,the specific setting depends on the situation.
Advantages and Characteristics
1. Stability: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.
2. Fast speed: Combining gravity feeding and vibration feeding.
3. High accuracy: Step-type multi-speed feeding, small error.
4. Auto Calculation: The system can automatically calculate the fast and slow weight, and correct the error value.
5. Simple operation: Equipped with electronic touch screen, weight parameters can be directly input.
6. Easy to clean: The surrounding open design, the dust cover can be opened, and the interior is easy to clean.

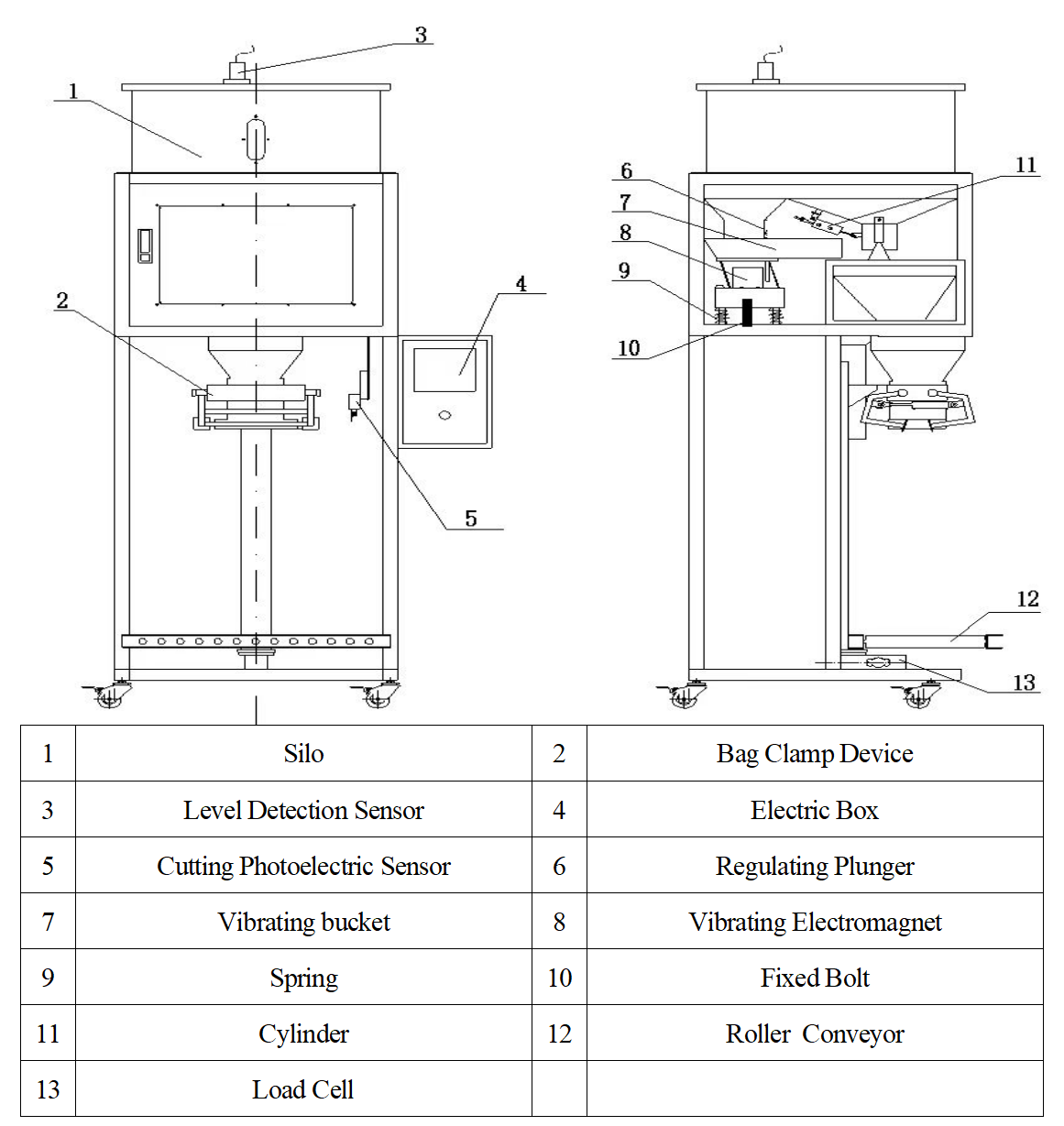

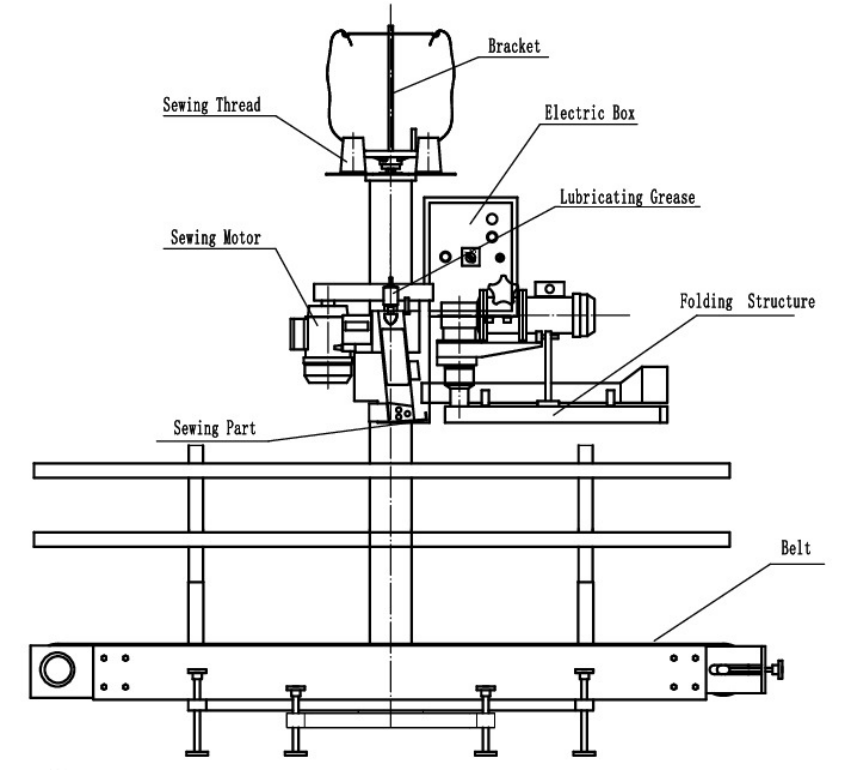

Structure Diagram

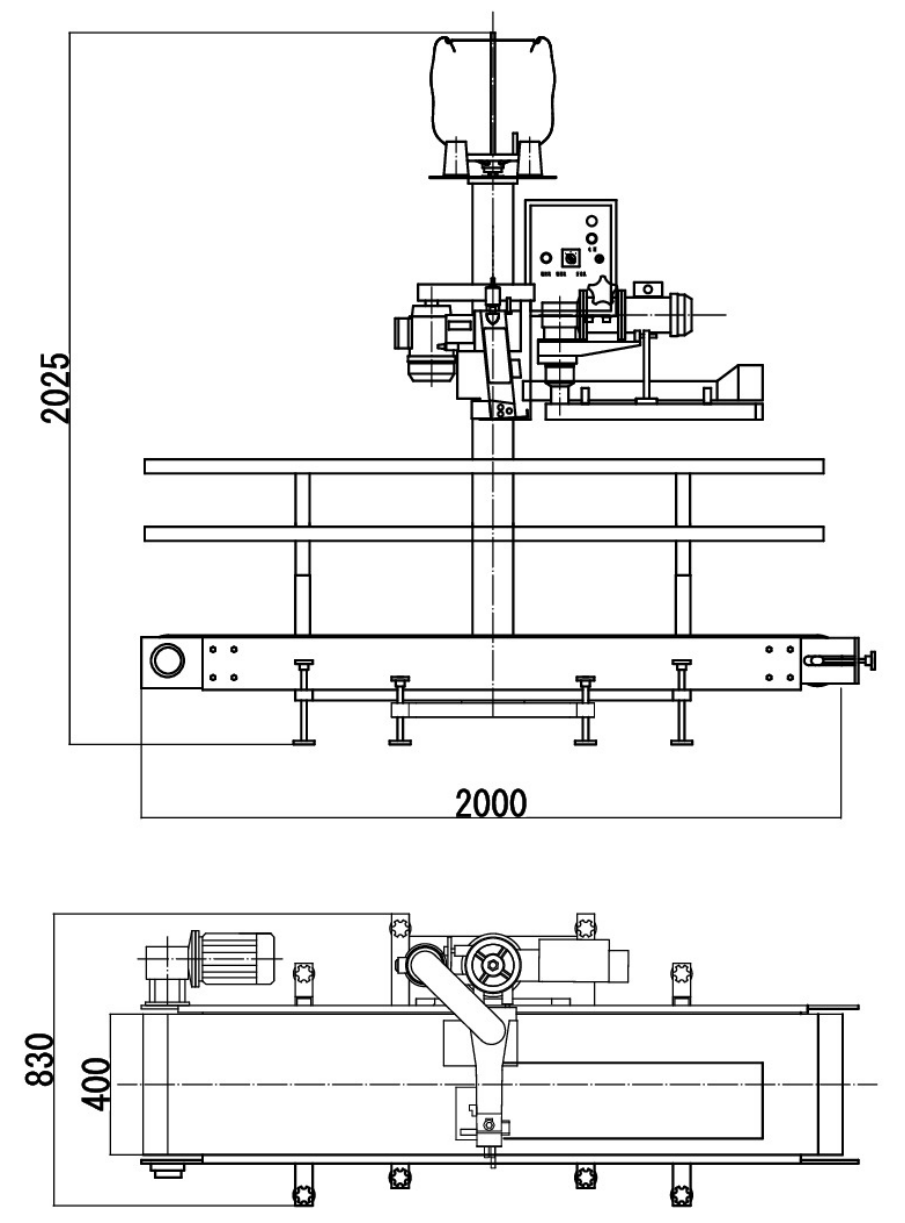

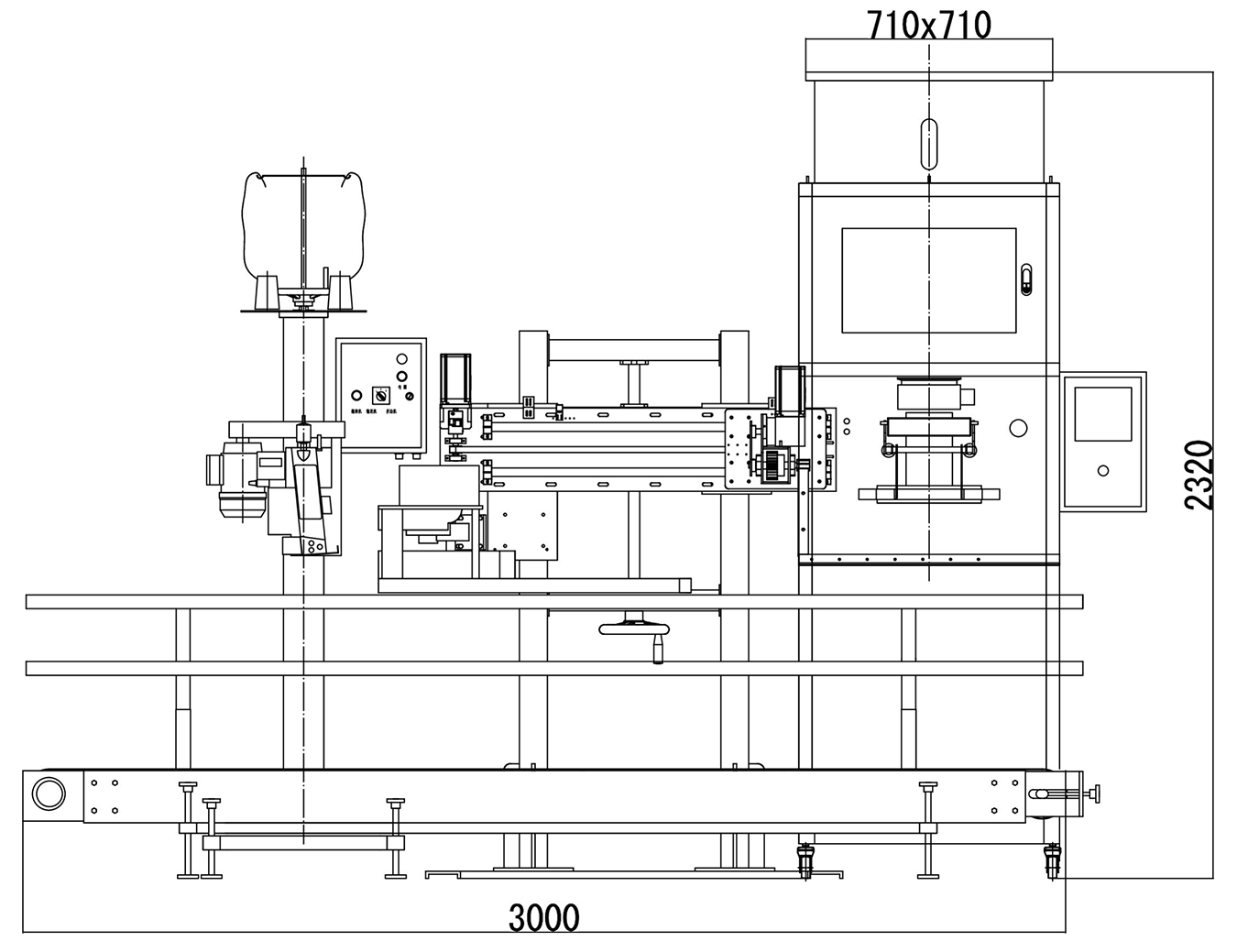

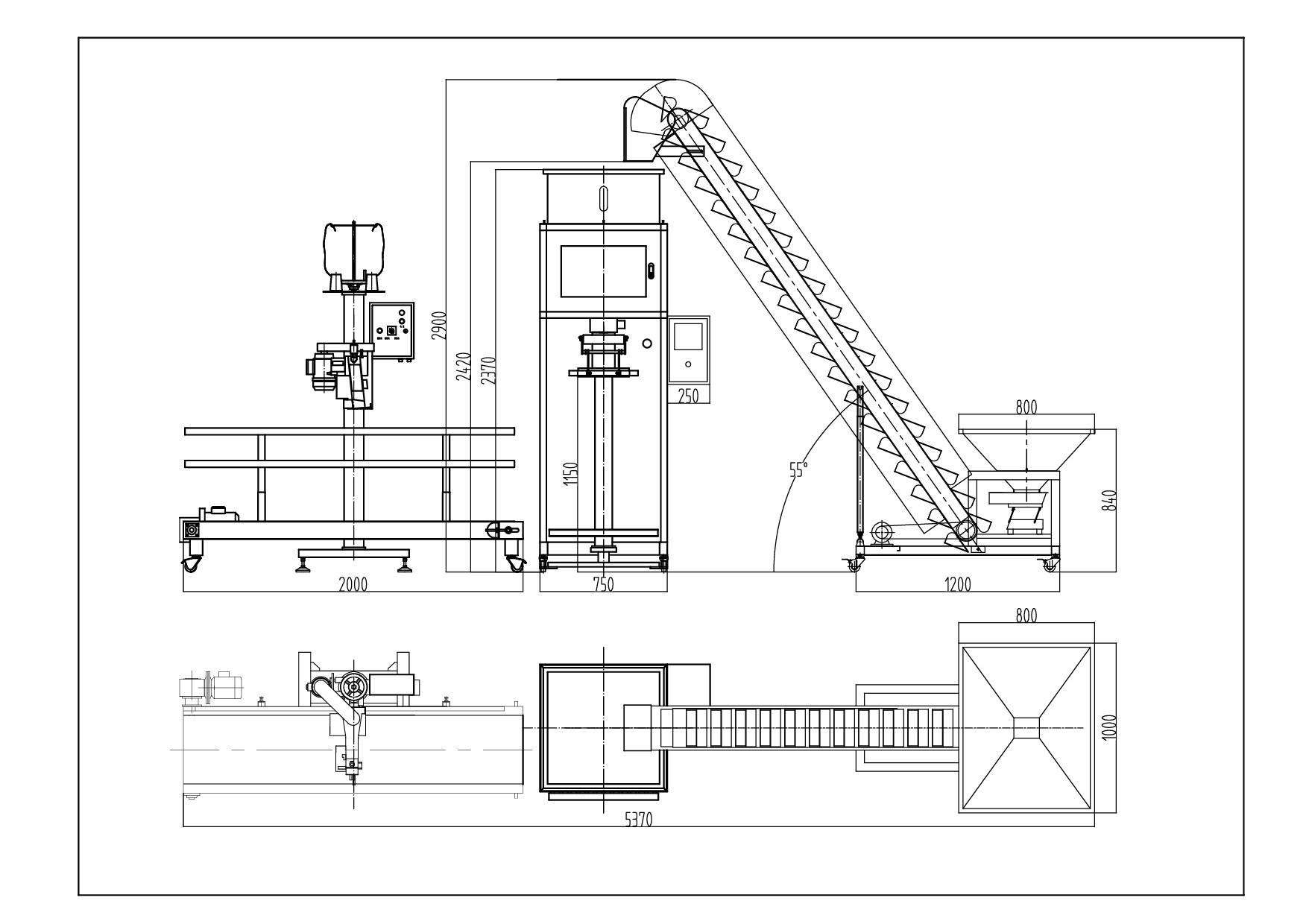

Dimension Diagram
