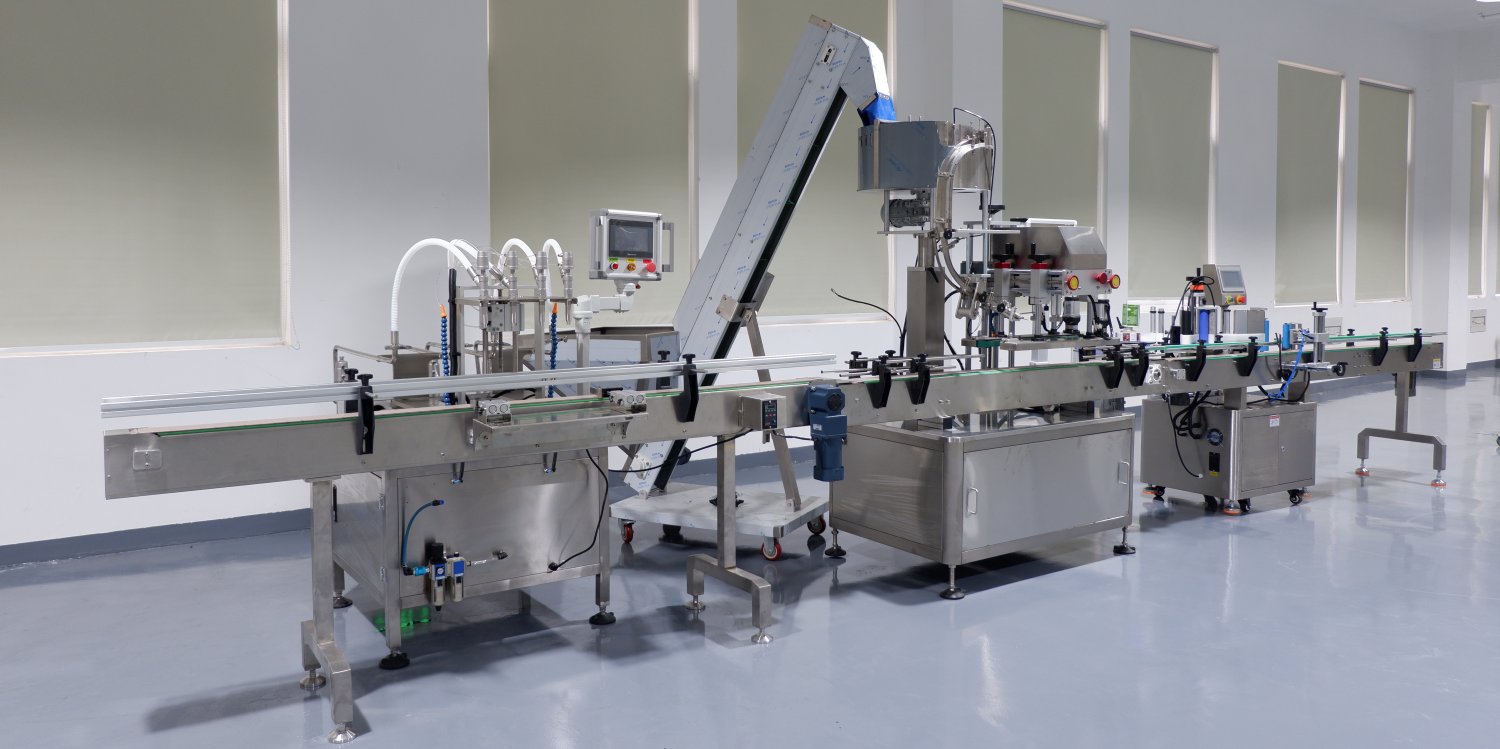

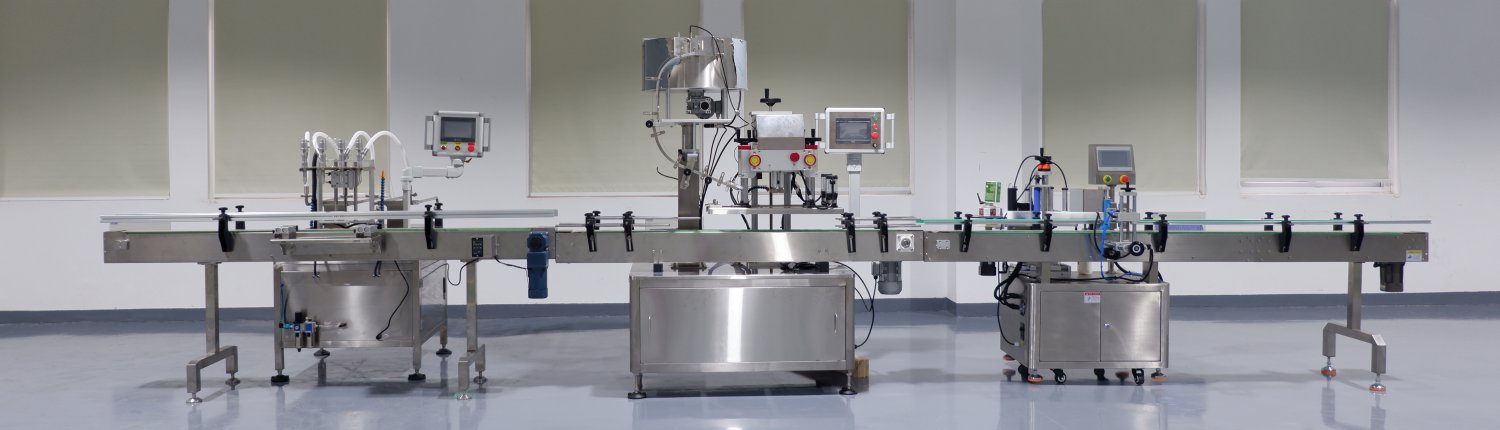

4 Nozzles Servo Liquid Filling Machine
Technical Parameters
Nozzles Quantitative | 4 | |
Filling Volume | 10-1000ml | |
Accuracy | For 1000ml, error ≤±3g (depends on material) | |
Speed | 100ml | 1000ml |
3000 bottles/h (test by water) | 2000 bottles/h (test by water) | |
Voltage | AC220V 50HZ | |
Power | 2kw | |
Air | 0.4Mpa | |
Dimension | 2000*1540*1600mm | |
(The above are standard sizes, all parameters can be customized)
Detailed Introduction
Advantages and Characteristics
1. Driven by servo, the precision is much high.
2. Automatic bottle positioning, filling and metering, with two functions of liquid level control and reflux, no spillage.
3. Controlled by PLC system and touch screen, intelligent, easy to operate.
4. SUS316 filling nozzles, acid and alkali resistant PTFE bellows, strong anti-interference ability.
5. The filling flow rate is adjustable.
6. There is a closing device at the outlet, no dripping; submersible filling, no splashing, no foam.
7. Assembled with universal wheel, easy to move.
8. The pneumatic valve adopts Swiss technology. The overall material is 304/316 stainless steel and polytetrafluoroethylene.
Structure Diagram
