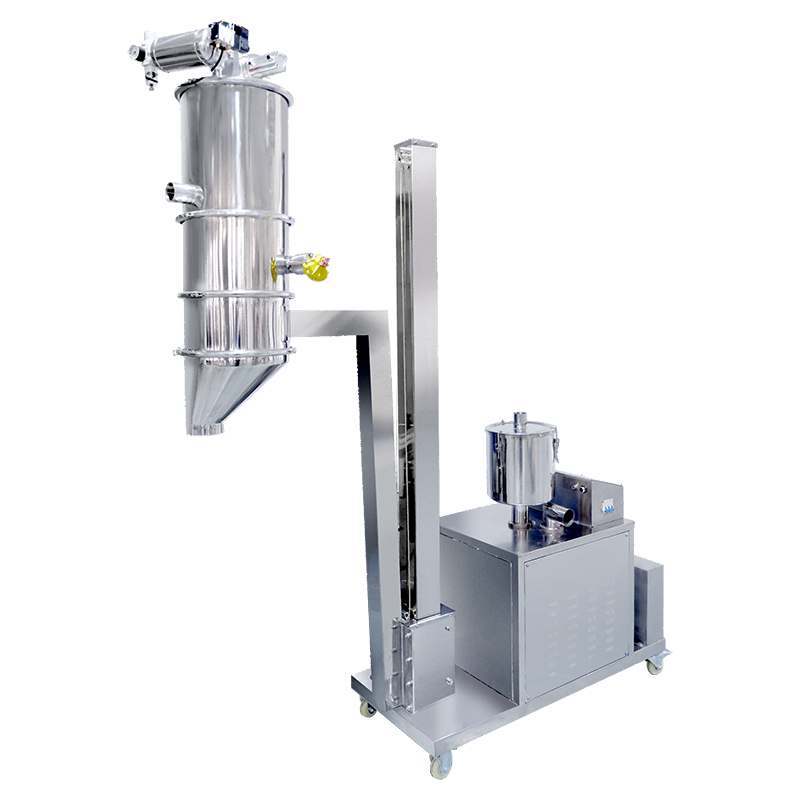

Electric Vacuum Feeding Machine

Technical Parameters

Model	Motor	Power (kW)	Capacity (Kg/H)	Pressure (mPa)	Dimension (mm)	Tube (mm)
ZKS-1	Vortex Fan	1.5	400	0.6	Φ220*820	Φ38
ZKS-2	Vortex Fan	2.2	600	0.6	Φ220*820	Φ38
ZKS-3	Vortex Fan	3	1200	0.6	Φ290*950	Φ51
ZKS-4	Vortex Fan	5.5	2000	0.6	Φ420*1350	Φ51
ZKS-5	2 stages Vortex Fan	5.5	3000	0.6	Φ420*1350	Φ51/63
ZKS-6	Vortex Fan Roots Fan	7.5 4	3500	0.6	Φ420*1450	Φ63
ZKS-7	2 stages Vortex Fan Roots Fan	7.5 5.5	4000	0.6	Φ420*1350	Φ76
ZKS-10-6	2 stages Vortex Fan Roots Fan	11 7.5	6000	0.6	Φ600*1650	Φ76
ZKS-20-5	Roots Fan	11	5000	0.6	Φ800*2120	Φ89

The capacity is the "theoretical maximum conveying capacity" measured under the actual conditions:

1.Test material: powder with a bulk density of 0.5 and good fluidity.

2.Test distance: The measuring distance of ZKS-1 to ZKS-7 is within 4 meters, ZKS-10-6 is 10 meters, and ZKS-20-5 is 20 meters.

Material properties and conveying distance have great influence on the capacity:

3.The conveying capacity is proportional to the specific gravity of the material and inversely proportional to the conveying distance.

leave a message >

Detailed Introduction

Summary：

Based on the pneumatic vacuum model, the electric vacuum feeding machine has an automatic conveying system that uses an electric fan as the power source instead of the vacuum generator.

Advantages and Characteristics

1. High negative pressure and large air volume: especially suitable for conveying heavy materials, long distances or large demands.

2. The vacuum feeding machine is composed of a vacuum pump, a vacuum hopper, a filter, a compressed air backflush device, a pneumatic discharge door device, a material level automatic control device, a feed hose, etc., with reasonable design and exquisite manufacturing.

3. The electric vacuum feeding machine cuts off the vacuum by switching the reversing valve during the discharge time to ensure the continuous operation of the electric fan and avoid repeated start and stop of the motor, thereby extending the use instructions.

4. The hopper can be raised and lowered to adapt to the different heights.

5. The hopper is quickly installed at a will.

6. There is no dust during feeding, and the workshop is pollution-free.

7. The universal wheel design is adopted for easy movement.

Structure Diagram
