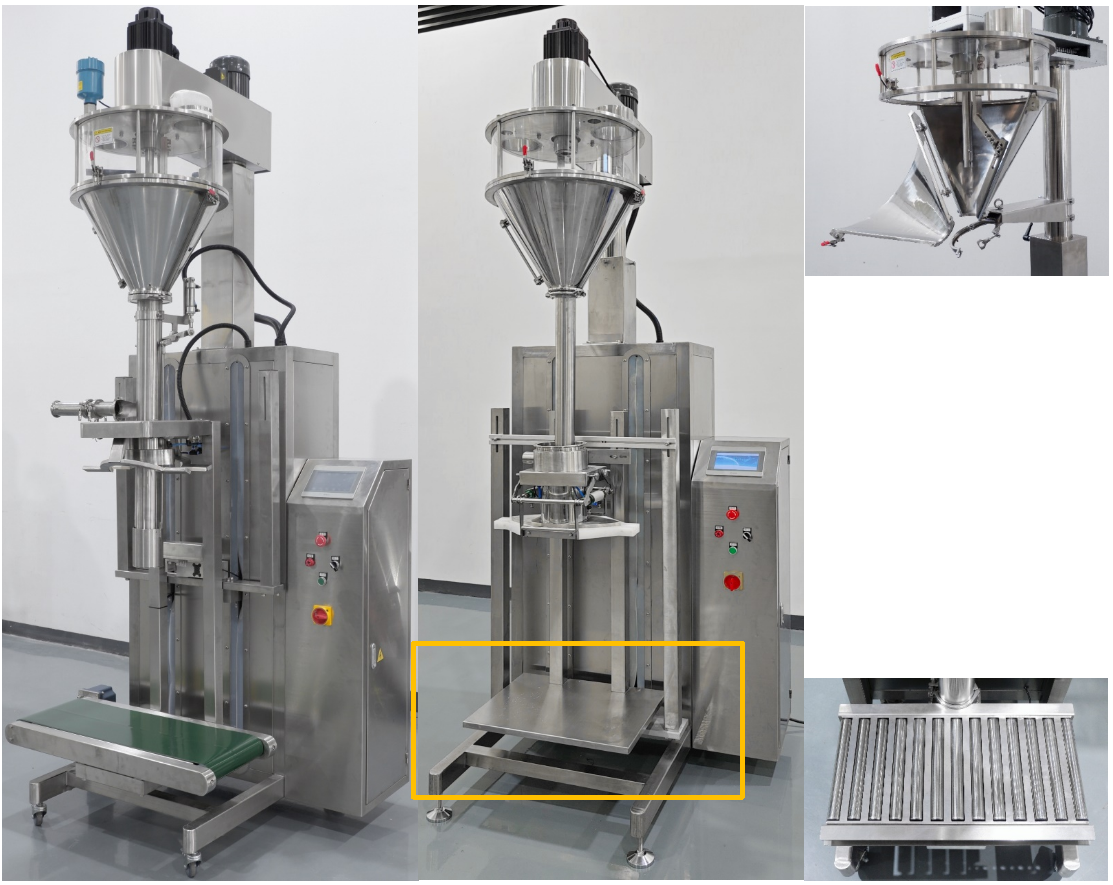

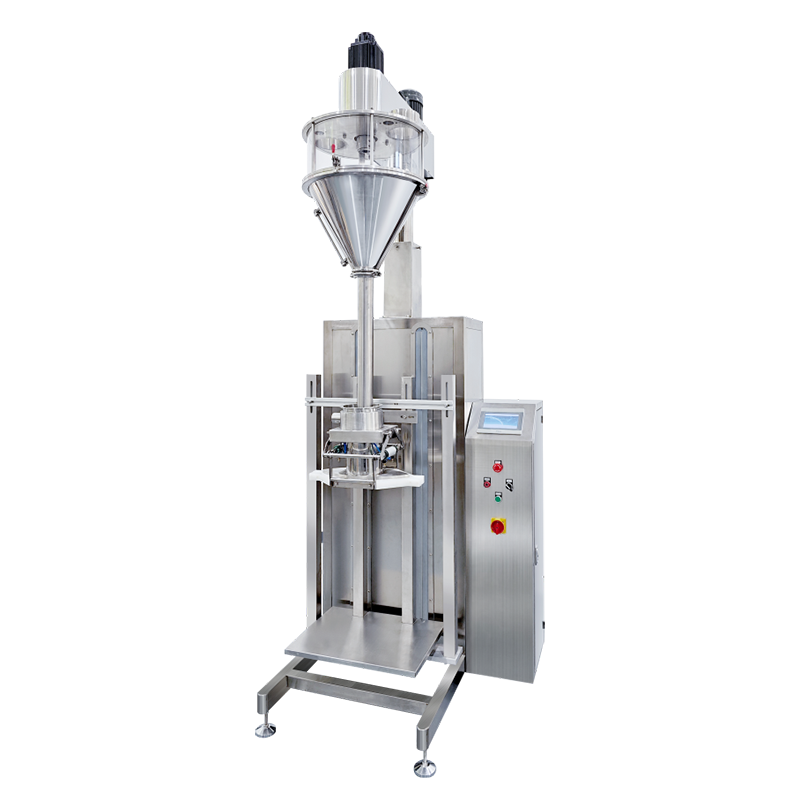

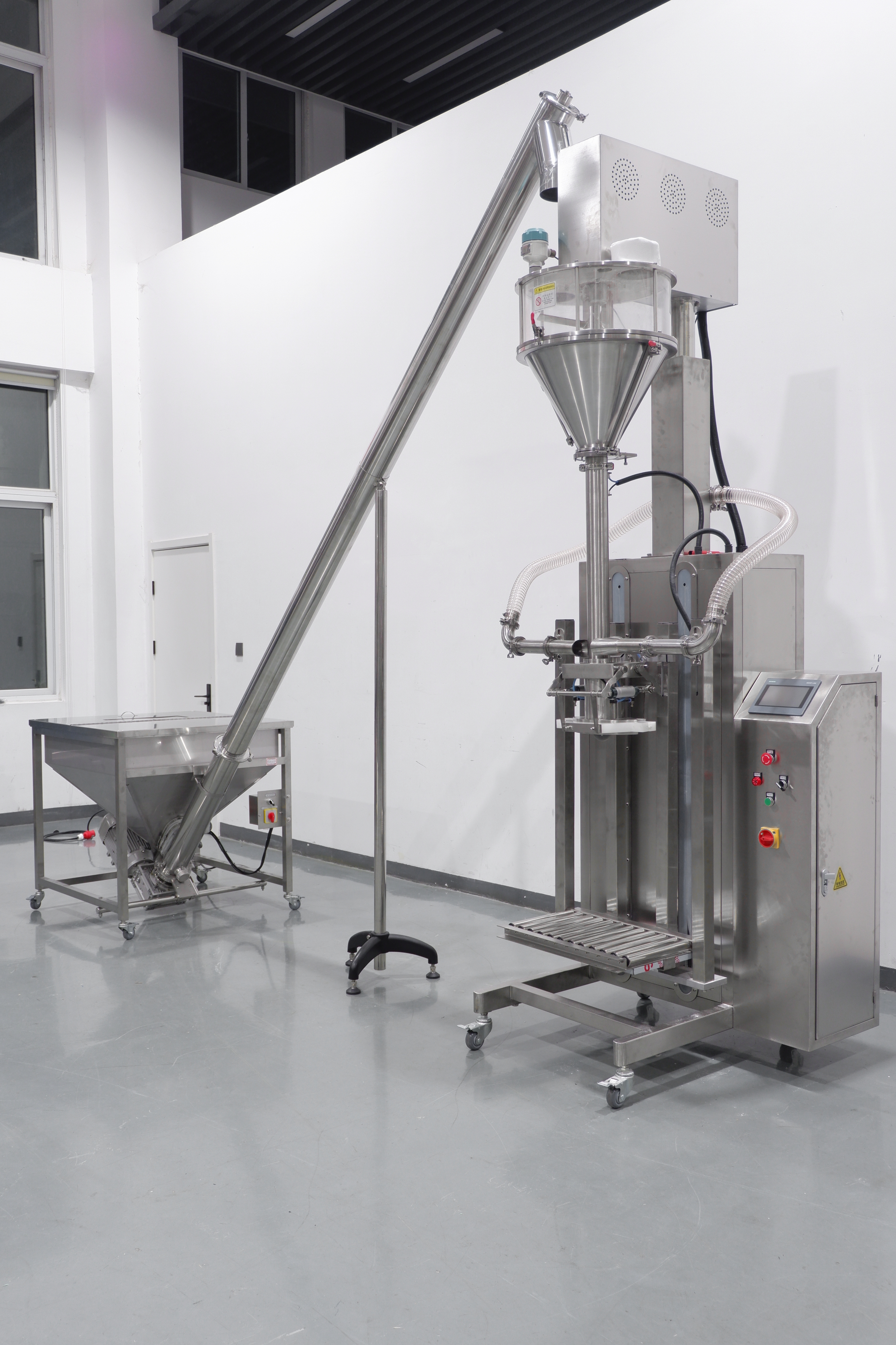

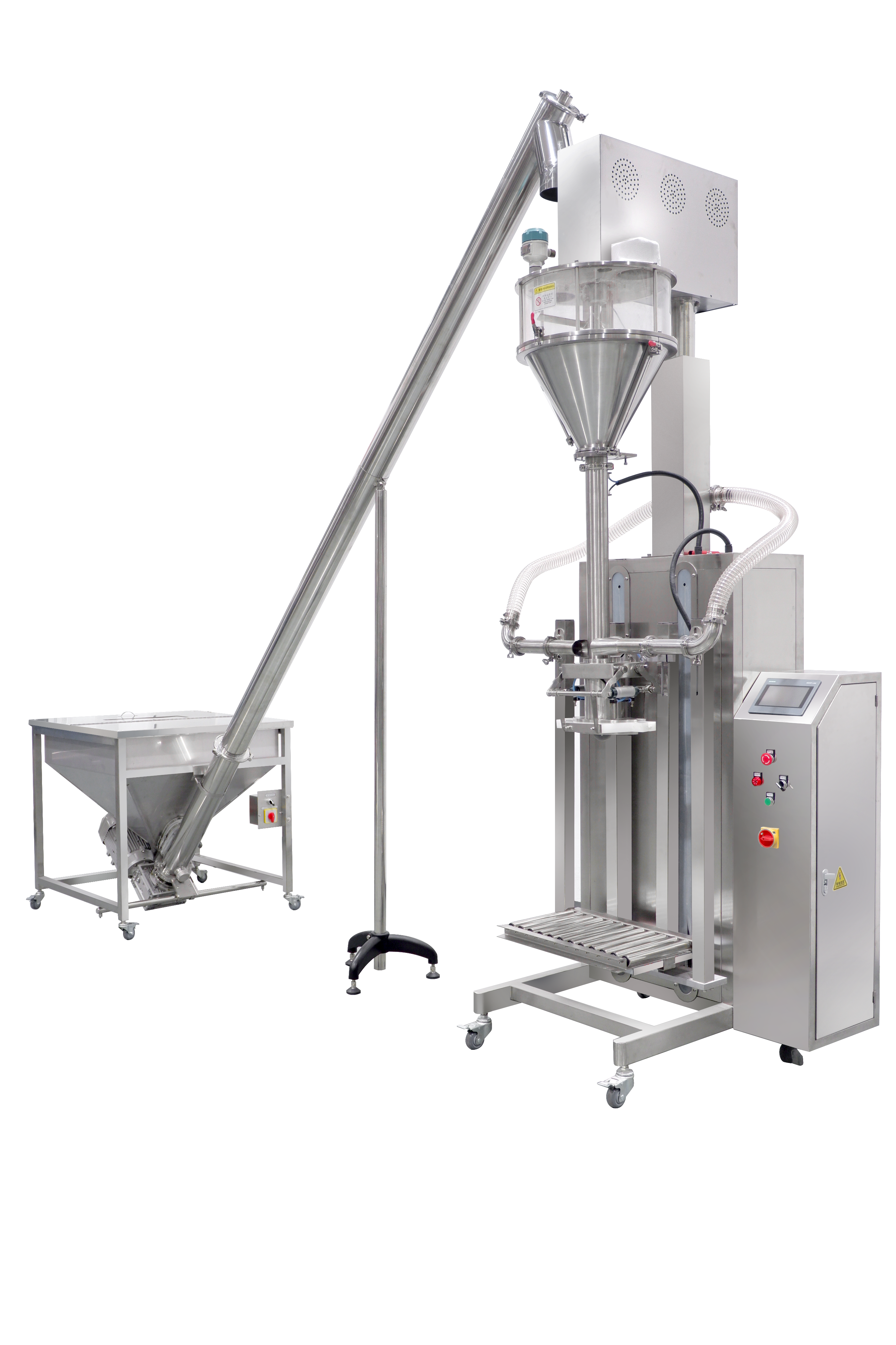

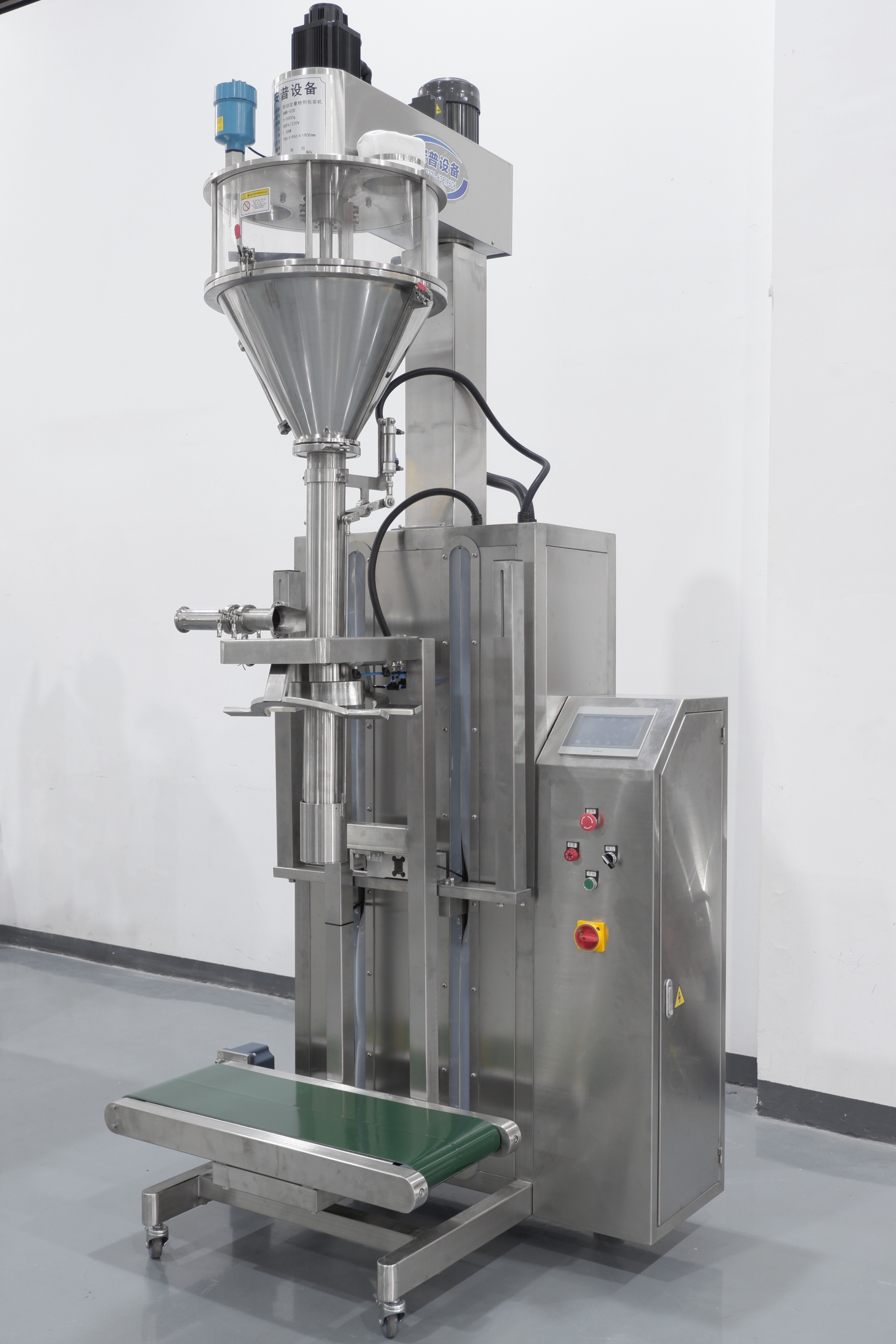

GMB-03C Dust-Proof Weighing Powder Packing Machine

Technical Parameters

Packing Weight

5kg-25kg

Packing Speed

50-120 bags/h

Packing Accuracy

5kg

25kg

≤±10g

≤±20g

Voltage

AC380V

Power

2.7KW

Hopper Volume

70L

Machine Weight

350KG

Dimension

1020×950×2680mm

(The above are standard sizes, all parameters can be customized)


Detailed Introduction

Summary:

It is suitable for quantitative packaging of dry powder and fine powder, such as carbon powder, seasoning, etc.

It can be widely used in food, daily chemicals, veterinary drugs, pesticides, fertilizers, feed, additives and other industries.



Working Principle:

Weighing measurement: Adjust the set 3-level weight parameters of fast, middle and slow (corresponding to the 3-level filling speed of fast, middle and slow) to change the speed of the filling screw rotation, thereby adjusting the filling speed and accuracy:

(1) Fast filling, then start middle filling after reaching the "fast weight"

(2) Middle filling, start slow filling after reaching the "middle weight"

(3) Slow filling, stop filling after reaching the "slow weight"


Advantages and Characteristics

1. Dust-Free: Filling from the bottom of the bag, which reduces the impact force through the lifting structure, achieving dust-free filling.

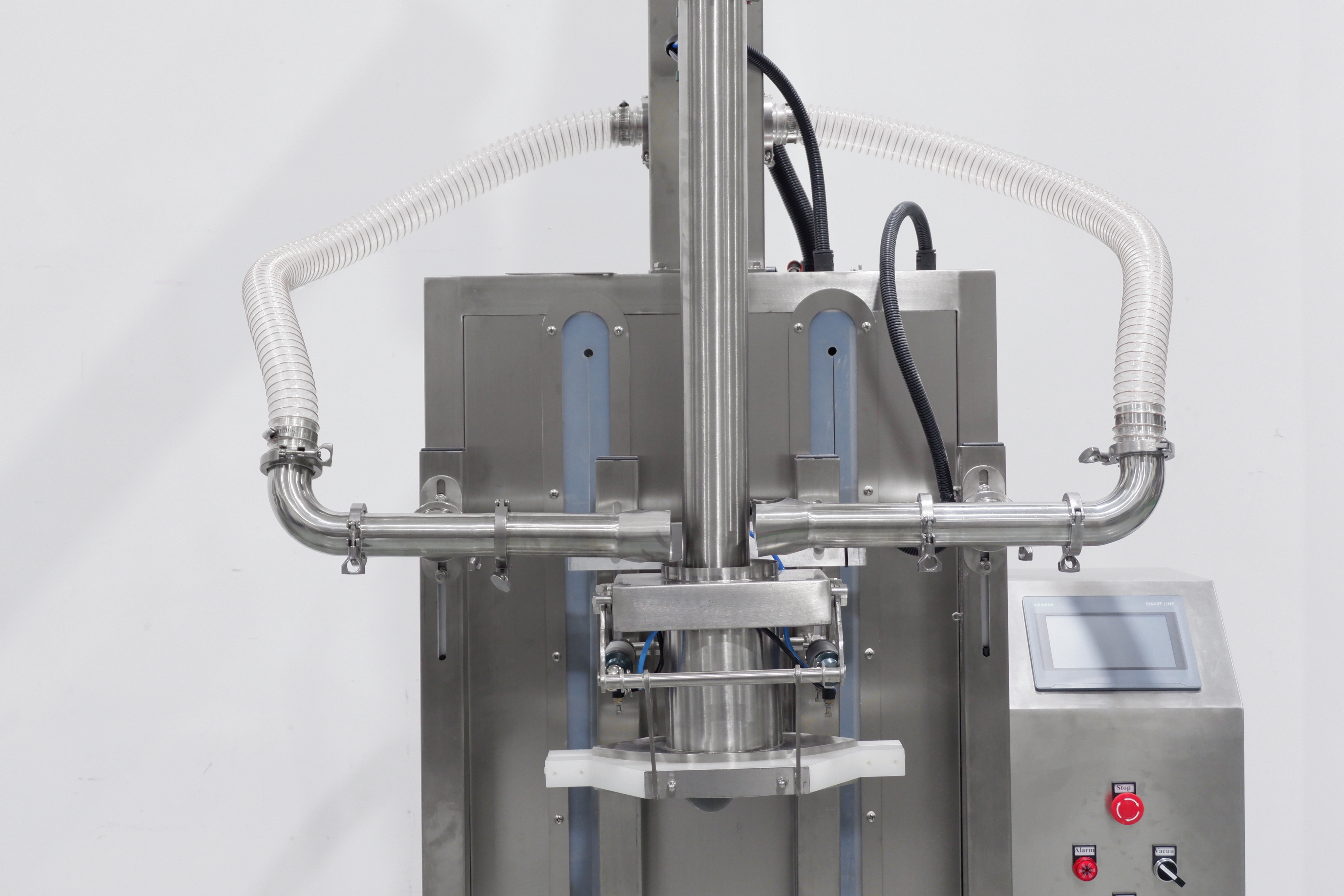

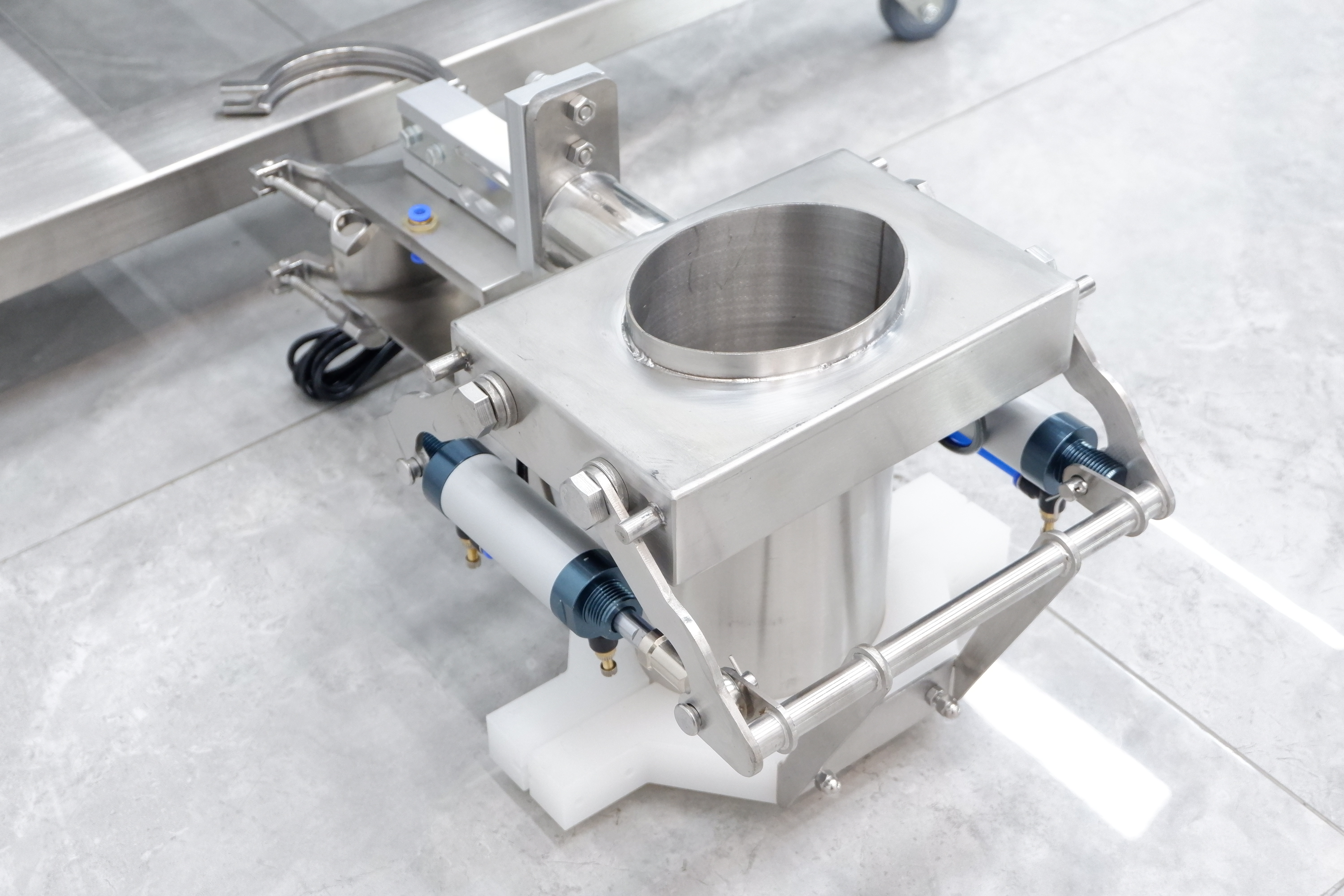

2. Closed Filling: Adapt unique closed bag clamping device, which can achieve closed filling by connecting to a negative pressure system.

3. Accurate packaging: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.

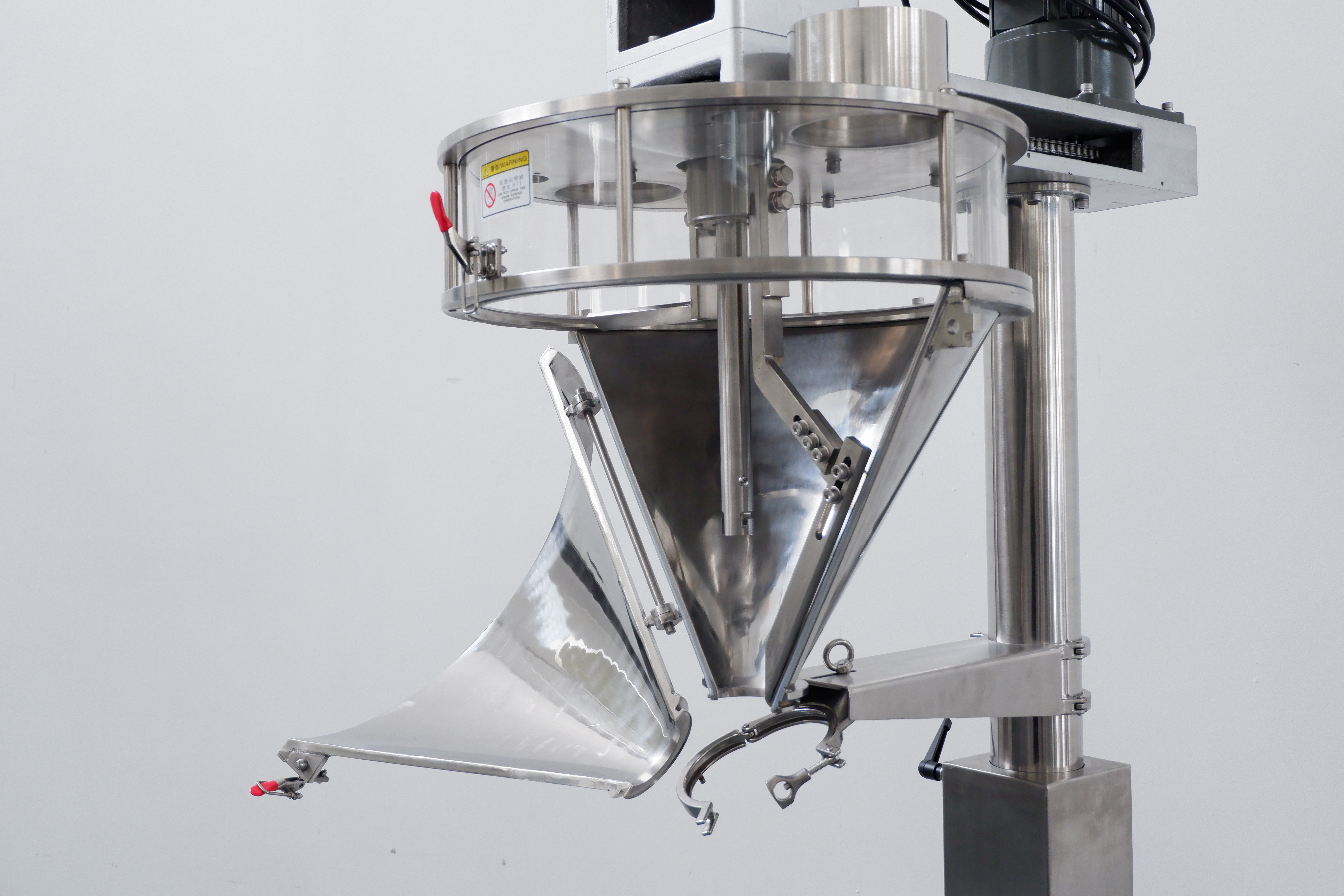

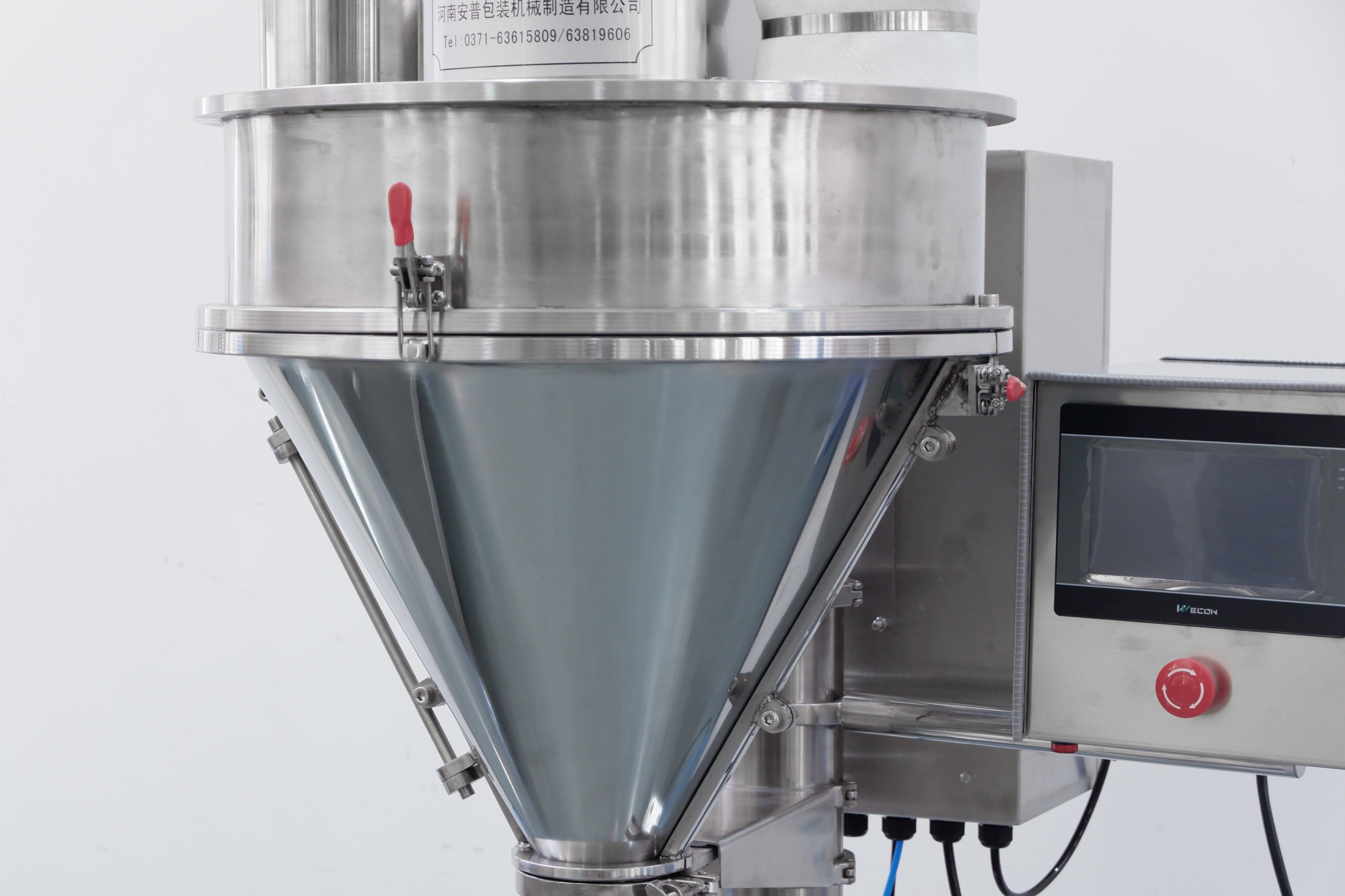

4. Easy to clean: The hopper can be fully opened, which is easy to clean.

5. Convenient installation: Full quick-release clamp connection.

6. Transparent silo: The material operation status is clear at a glance.

7. Stable structure: high-precision processing, perfect mechanical structure, highly concentric components (motor, long shaft, silo, screw, material cup, etc.), high machine operation efficiency, less wear, greatly reducing the failure rate of screw non-concentricity.

8. No leakage: There is a synchronous stirring function, which can solve a large part of the leakage problem of dry, loose and fine materials.

9. Easy maintenance and repair: The hopper can be fully opened, and the internal components of the hopper are clearly visible:

   1) Convenient to adjust the relative position between the agitator and the filling screw

   2) Convenient to maintain and repair each component (agitator, metering screw, long shaft, etc.).

10. Simple operation: Equipped with an electronic touch screen, parameters can be set directly

11. Easy to move: equipped with universal wheels.

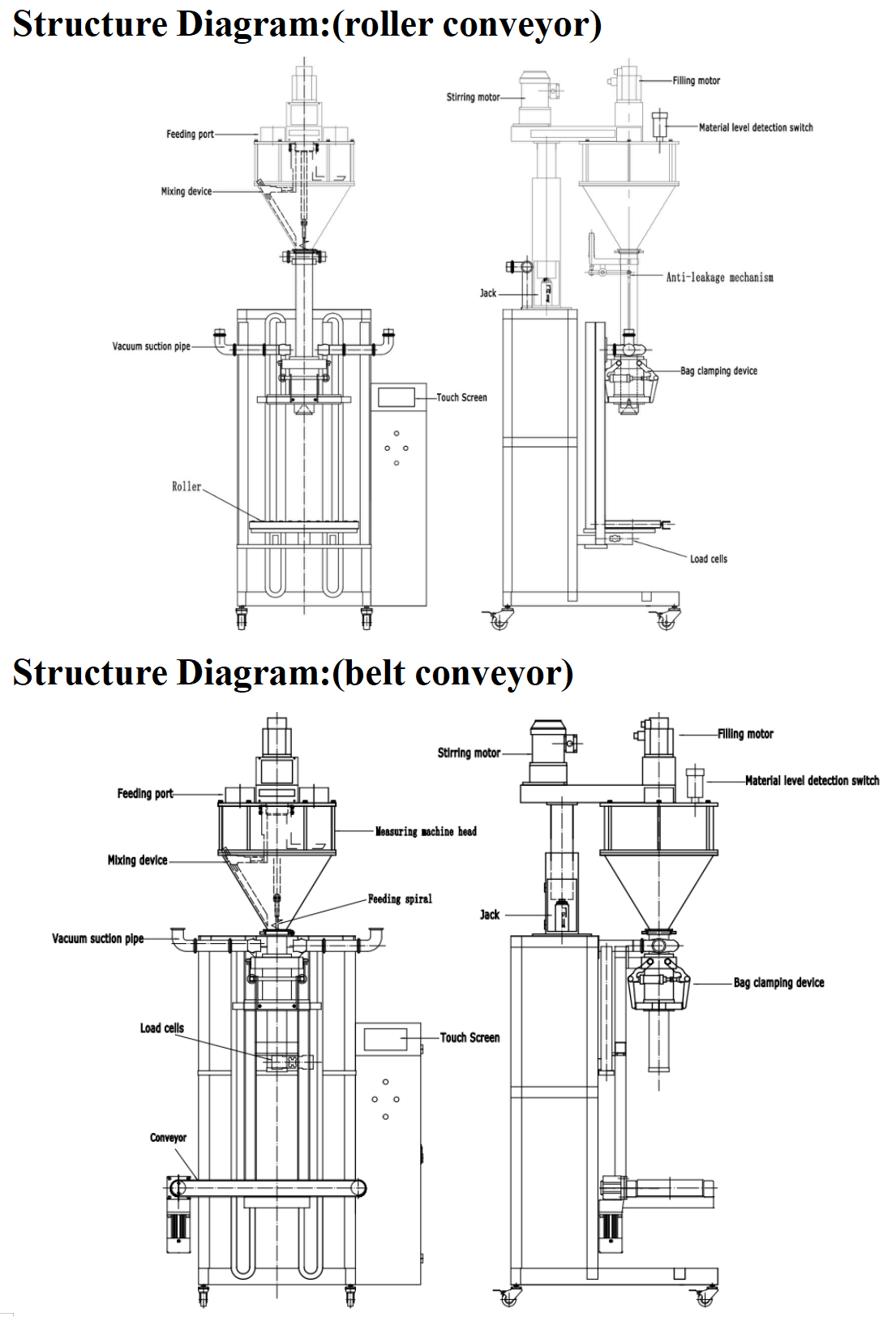

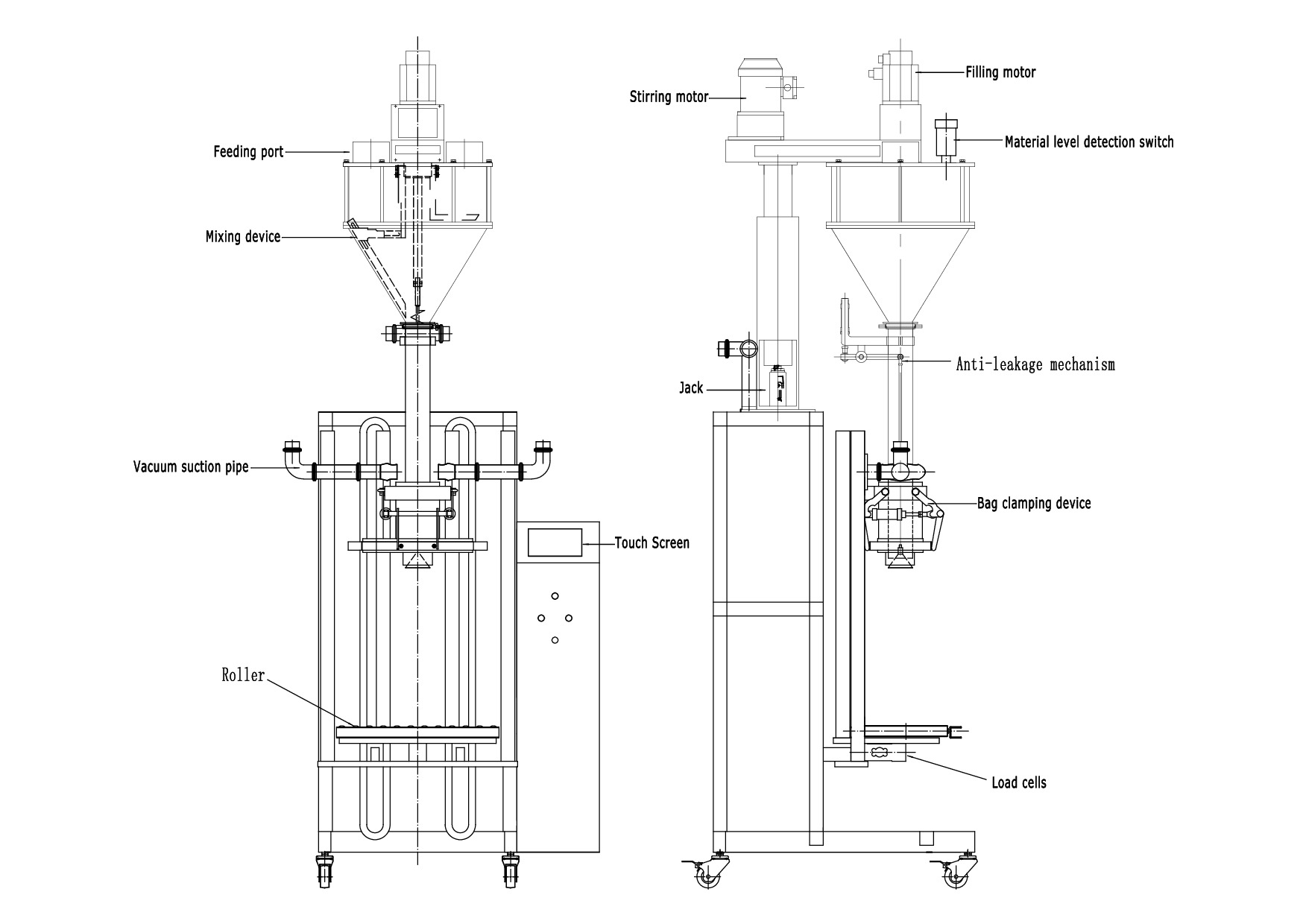

Structure Diagram

GMB-03C Dust-Proof Weighing Powder Packing Machine

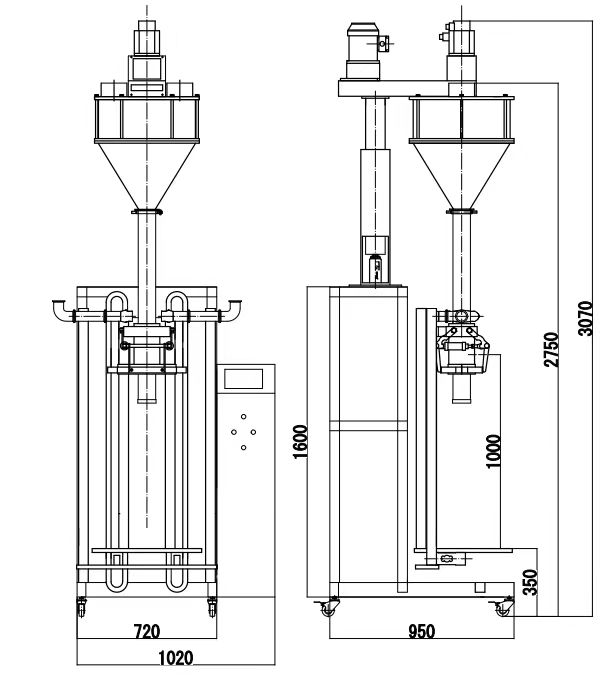

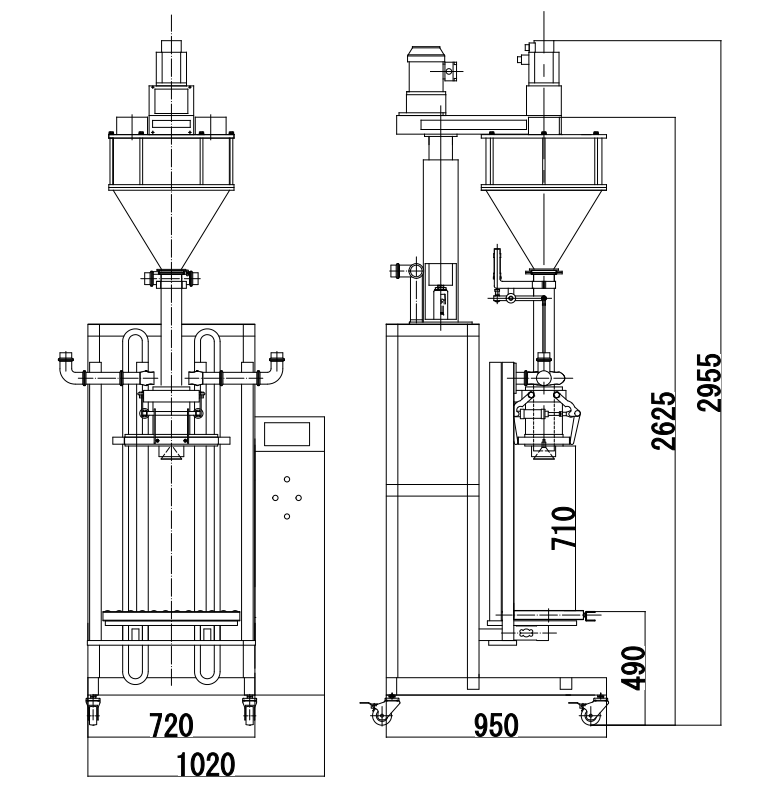

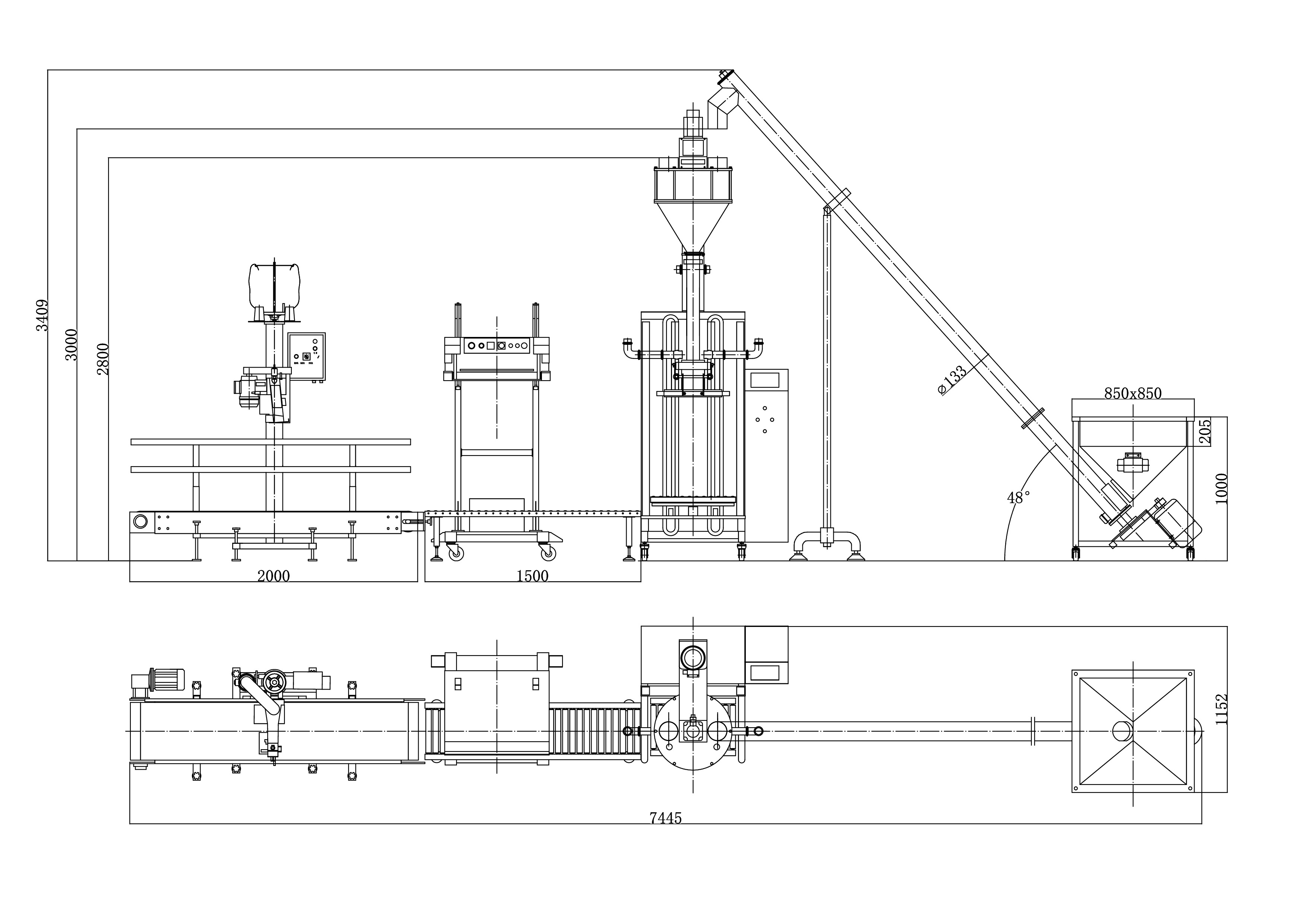

Dimension Diagram

GMB-03C Dust-Proof Weighing Powder Packing Machine

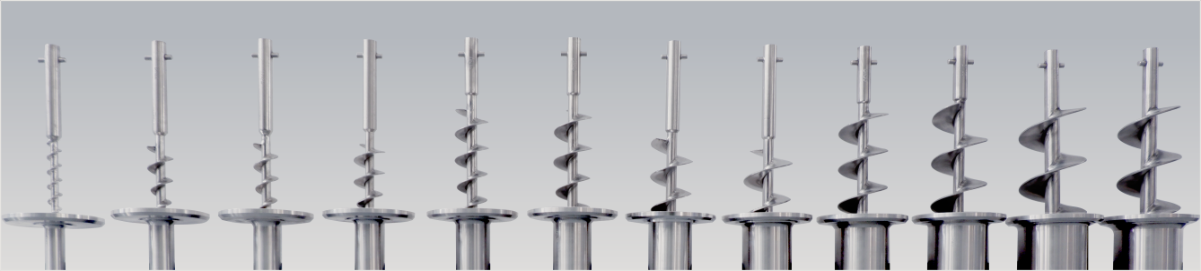

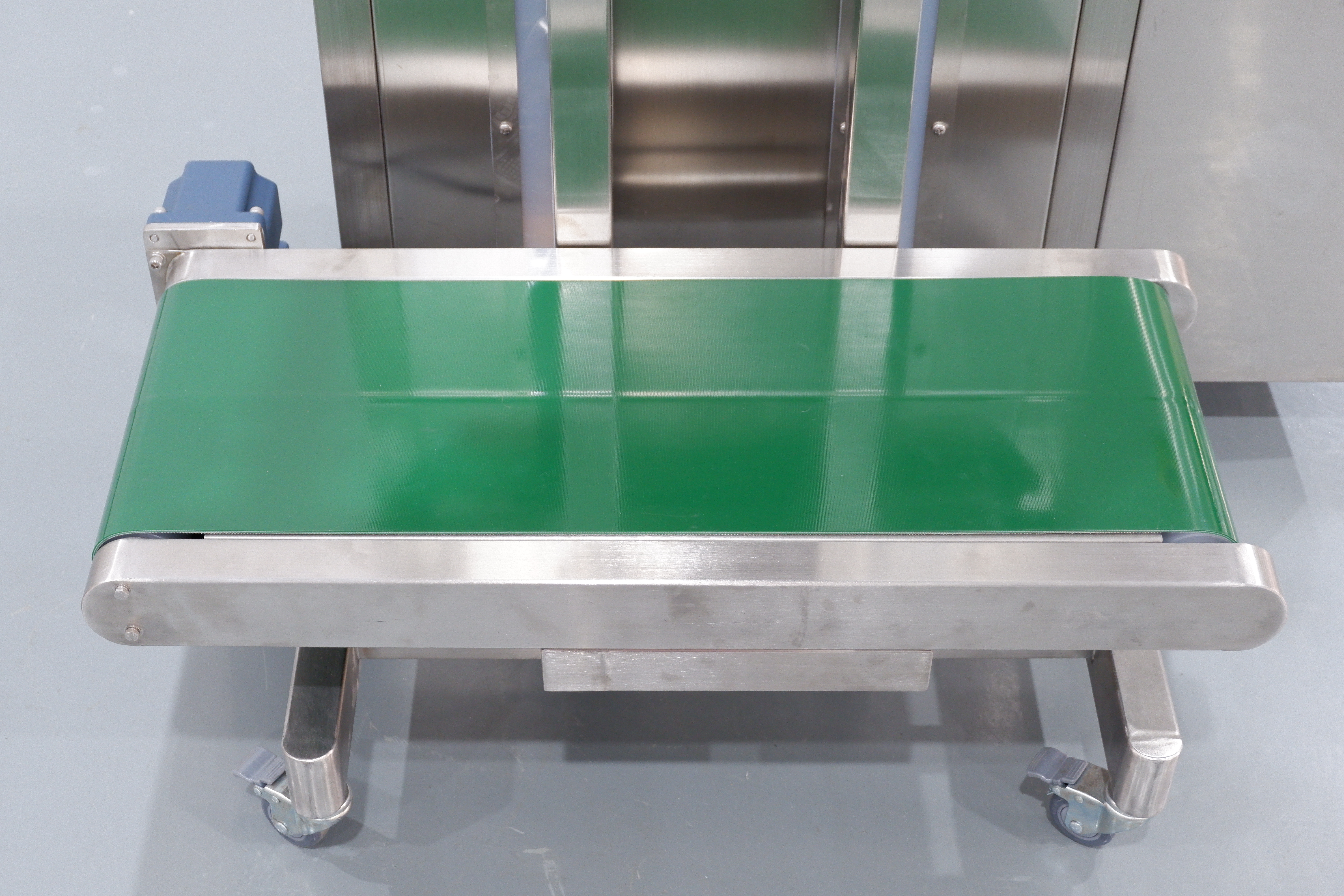

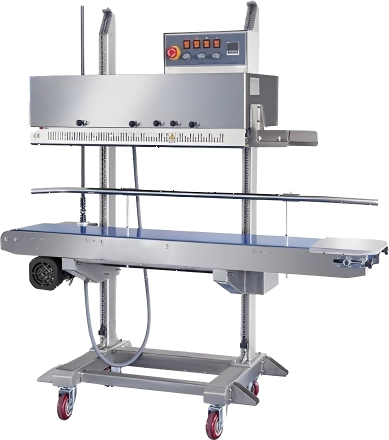

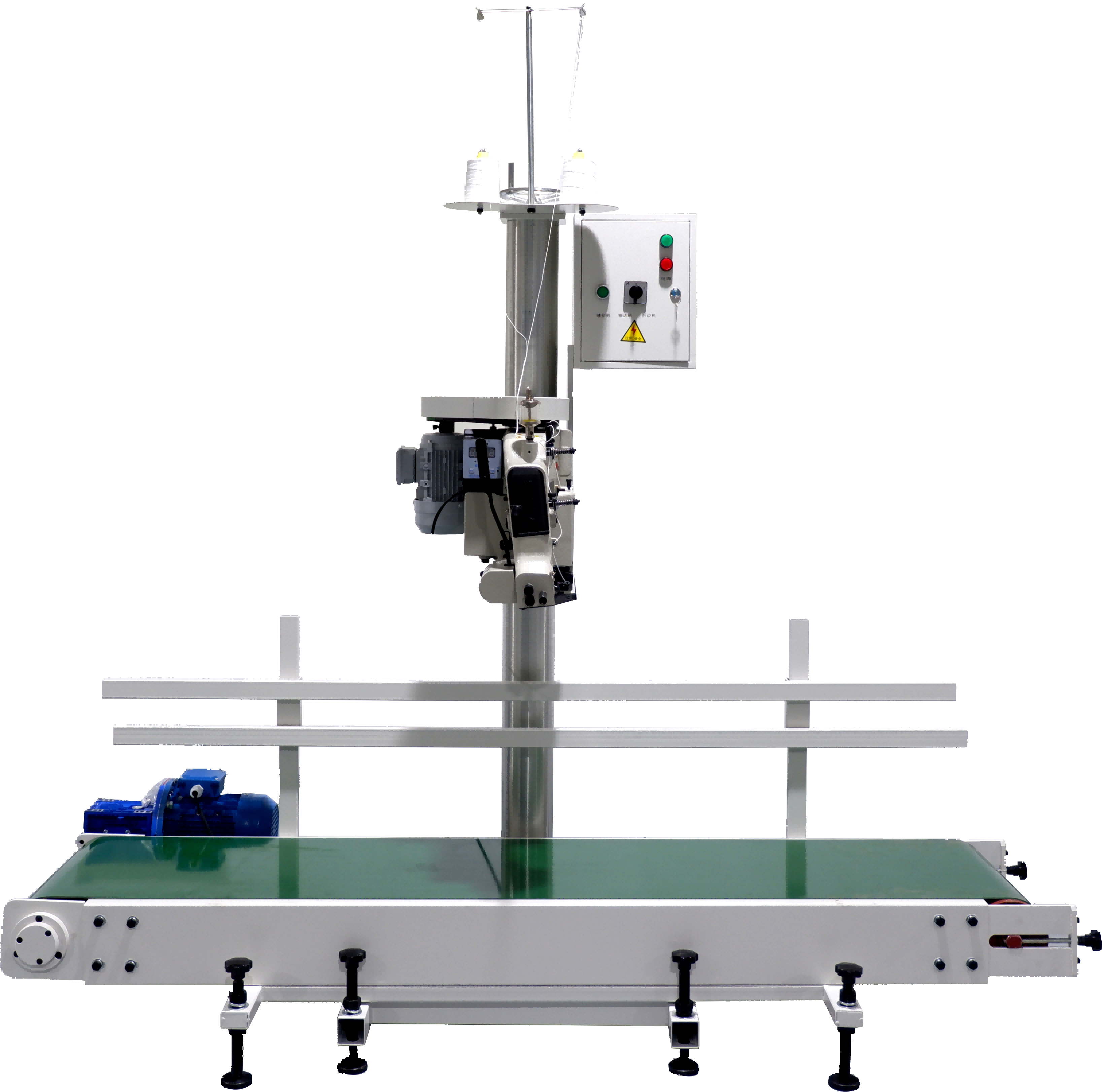

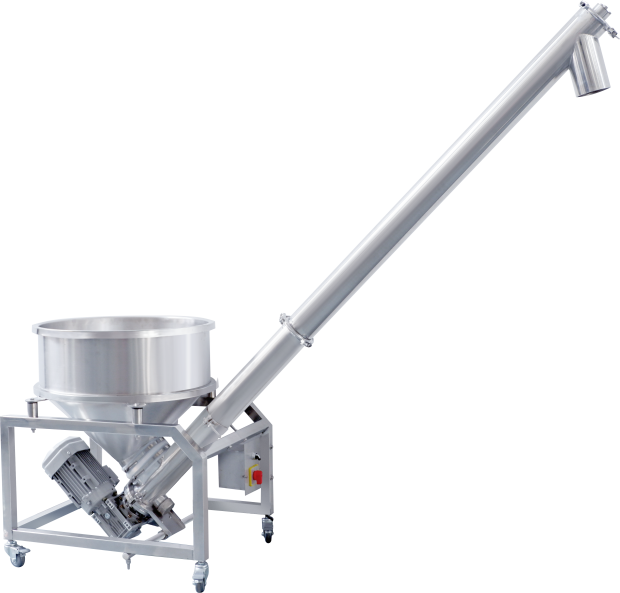

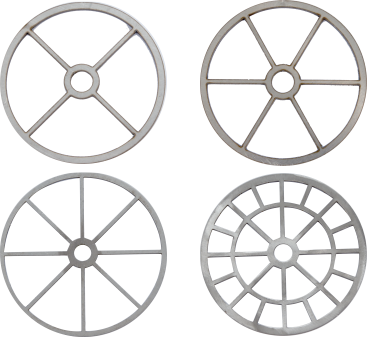

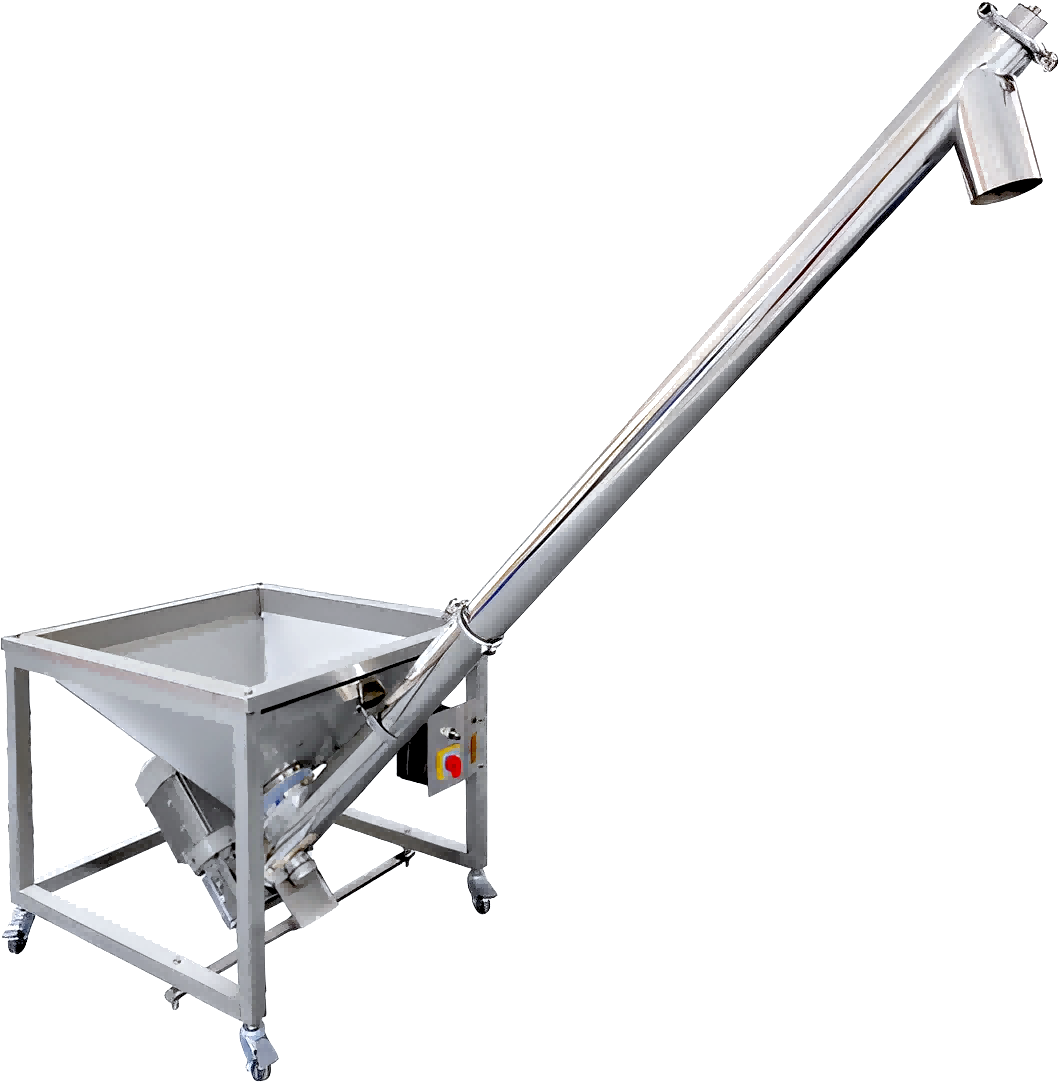

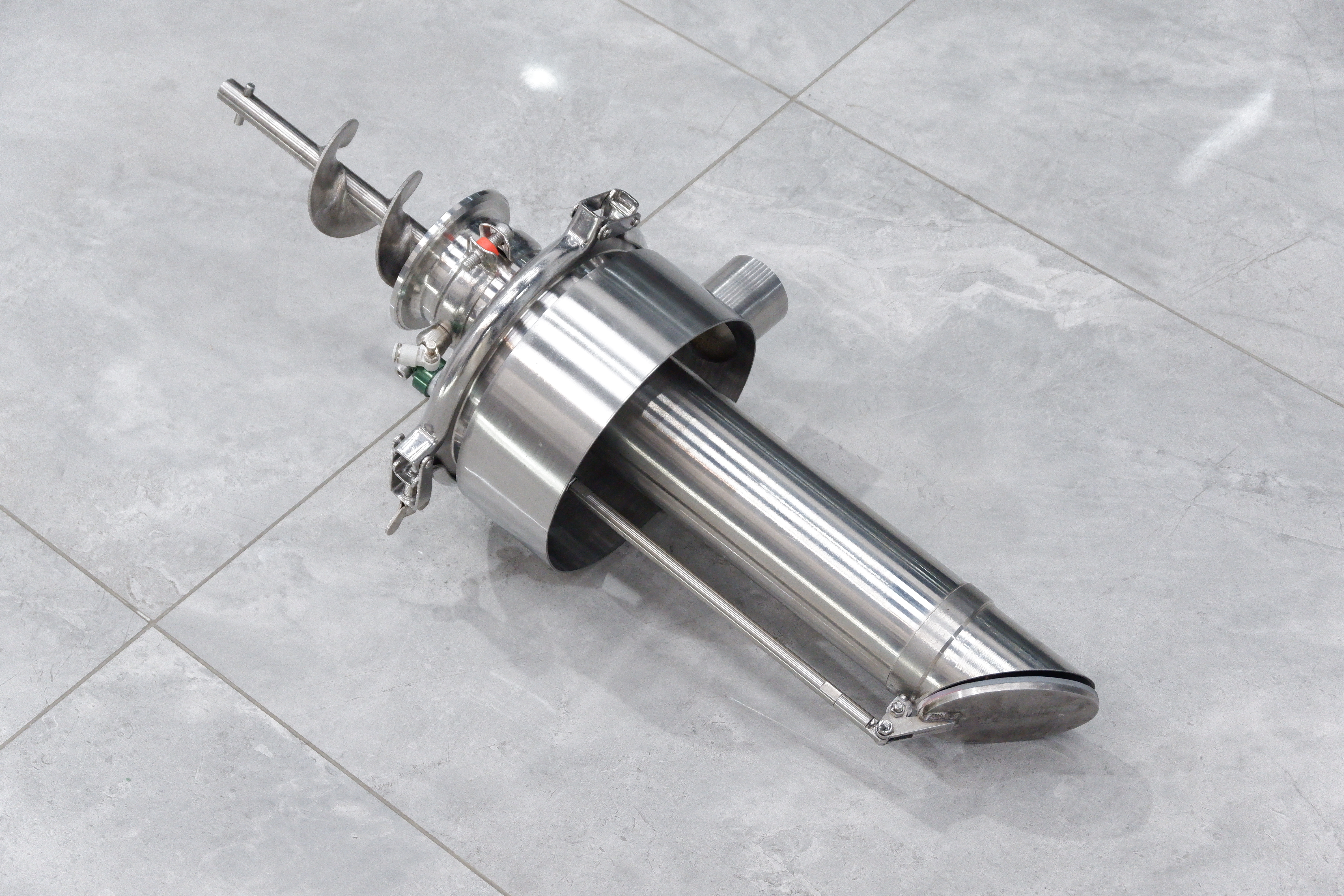

Additional Accessories

图片 9.png

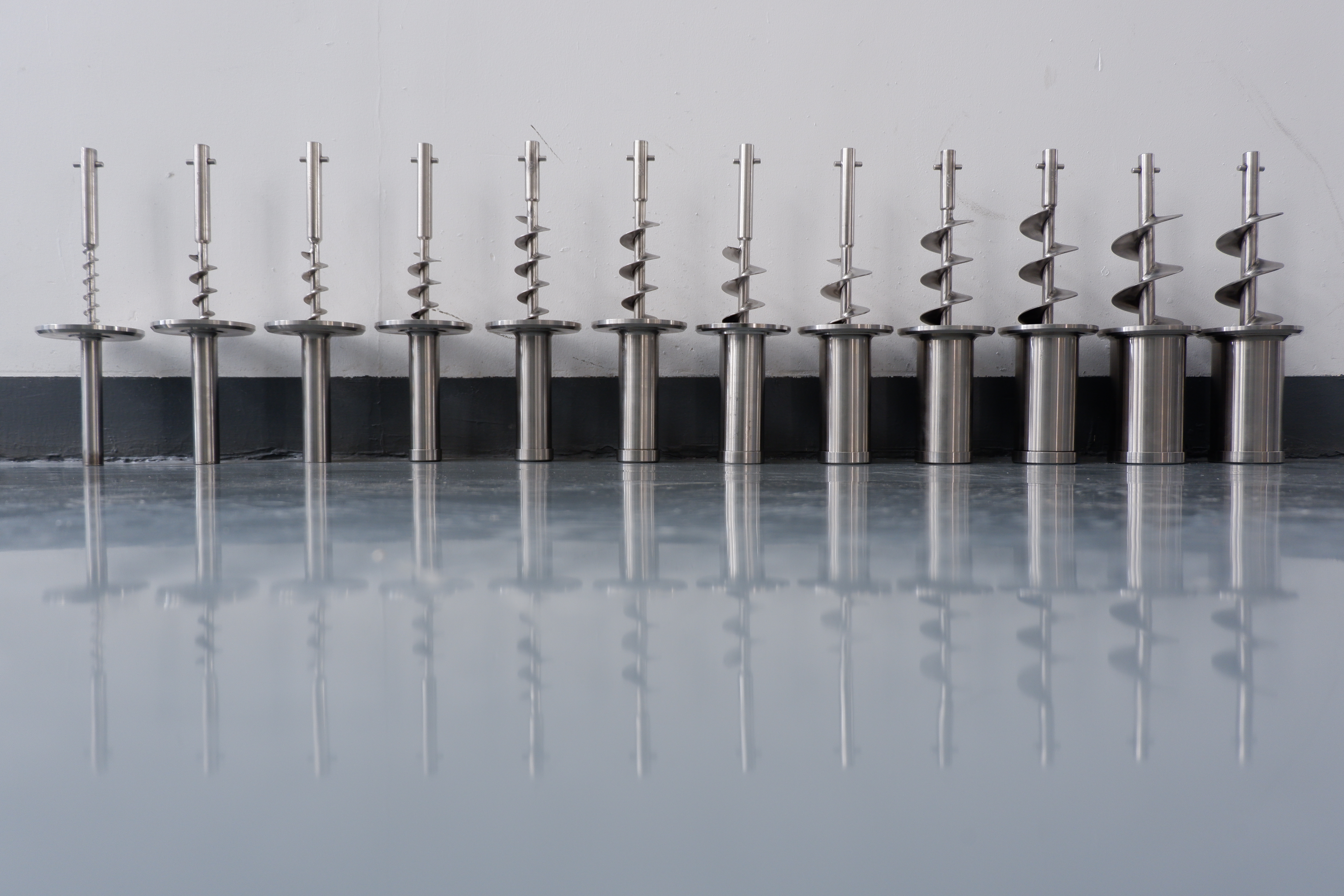

Screw Outer Diameter(mm)

Cup Outer Diameter(mm)

Prevent leakage Outer Diameter(mm)

Packing Size

Bag clamping device Outer Diameter(mm)

Φ60

Φ65

67

1kg-5kg

Φ89

Φ64

Φ69

71

3kg-5kg

Φ89

Φ70

Φ75

77

5kg-50kg

Φ89

Φ89

Φ94

96

5kg-50kg

Φ133

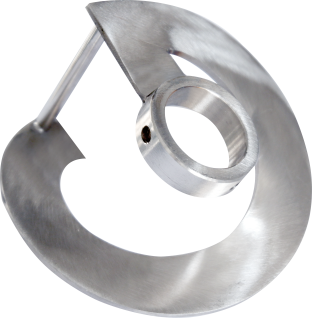

Leak-Proof

Pressure Plate





Leak-Proof

Cylinder
