Roll Film Bag Packing Machine
Technical Parameters
Detailed Introduction
Advantages and Characteristics
1. Automatically complete measuring, bag making, filling, sealing, cutting, coding and other work.
2. Servo motor film drawing, accurate positioning; Double belt film pulling, fast speed.
3. Gas path control and circuit control are independent of each other, and the noise is small.
4. Equipped with dual axis PLC, strong anti-interference.
5. External piercing mechanism, easy to install.
6. Adjusting the deviation of the bag only needs to be operated on the color touch screen, which is simple and convenient.
7. The whole machine adopts a closed mechanism to block dust.
Structure Diagram
Dimension Diagram
Additional Accessories
Main Components:
No. | Name | Brand | Origin |
1 | PLC | Schneider | German |
2 | Touch Screen | Schneider | German |
3 | Servo Motor | Schneider | German |
5 | Cylinder | AirTAC | Taiwan |
6 | Solenoid Valve | AirTAC | Taiwan |
7 | Triad | AirTAC | Taiwan |
8 | Photoelectric Sensor | AUTONICS | Korea |
9 | Power Switch | MEAN WELL | Taiwan |
10 | Solid Relay | FOTEK | Taiwan |
11 | Intermediate Relay | Omron | Japan |
12 | Temperature Control | AISET | China |
13 | Level Sensor | LEIKE | China |
14 | Switch | Schneider | German |
Accessories:
No. | Name | Qty |
1 | Horizontal Seal Heating Pipe | 2 |
2 | Vertical Seal Heating Pipe | 1 |
3 | Belt | 2 |
4 | Date Print | 1 |
5 | Sealing Knife | 1 |
Common Tools:
No. | Name | Qty |
1 | Open deadhead wrench | 1 |
2 | Allen wrench | 1 |
3 | Copper brush | 1 |
4 | Oil can | 1 |
5 | Thermocouple | 2 |
Roll Film Bag Packing Machine
Technical Parameters
Detailed Introduction
Advantages and Characteristics
1. Automatically complete measuring, bag making, filling, sealing, cutting, coding and other work.
2. Servo motor film drawing, accurate positioning; Double belt film pulling, fast speed.
3. Gas path control and circuit control are independent of each other, and the noise is small.
4. Equipped with dual axis PLC, strong anti-interference.
5. External piercing mechanism, easy to install.
6. Adjusting the deviation of the bag only needs to be operated on the color touch screen, which is simple and convenient.
7. The whole machine adopts a closed mechanism to block dust.
Structure Diagram
Dimension Diagram
Additional Accessories
Main Components:
No. | Name | Brand | Origin |
1 | PLC | Schneider | German |
2 | Touch Screen | Schneider | German |
3 | Servo Motor | Schneider | German |
5 | Cylinder | AirTAC | Taiwan |
6 | Solenoid Valve | AirTAC | Taiwan |
7 | Triad | AirTAC | Taiwan |
8 | Photoelectric Sensor | AUTONICS | Korea |
9 | Power Switch | MEAN WELL | Taiwan |
10 | Solid Relay | FOTEK | Taiwan |
11 | Intermediate Relay | Omron | Japan |
12 | Temperature Control | AISET | China |
13 | Level Sensor | LEIKE | China |
14 | Switch | Schneider | German |
Accessories:
No. | Name | Qty |
1 | Horizontal Seal Heating Pipe | 2 |
2 | Vertical Seal Heating Pipe | 1 |
3 | Belt | 2 |
4 | Date Print | 1 |
5 | Sealing Knife | 1 |
Common Tools:
No. | Name | Qty |
1 | Open deadhead wrench | 1 |
2 | Allen wrench | 1 |
3 | Copper brush | 1 |
4 | Oil can | 1 |
5 | Thermocouple | 2 |
Powder Filling Machine
Technical Parameters
Packing Accuracy | ≤1% (Depends on materials and packing size) |
Power | 1.5kw |
Machine Weight | 80kg |
Dimension | L 780×W 880×H 1900mm |
(These are standard above, all parameters can be customized)
Detailed Introduction
Working Principle:
Volume measurement: adjust the pulse value to change the number of revolutions of the filling screw, thereby changing the filling weight (the larger the pulse, the more material is fed). When filling, use an electronic scale to feedback the weight, and the system will automatically adjust the pulse value.
Advantages and Characteristics
1. Accurate packaging: Adopting high quality screw, stable and accurate.
2. Easy to clean: The hopper can be fully opened, which is easy to clean.
3. Convenient installation: Full quick-release clamp connection.
4. Transparent silo: The material operation status is clear at a glance.
5. Stable structure: high-precision processing, perfect mechanical structure, highly concentric components (motor, long shaft, silo, screw, material cup, etc.), high machine operation efficiency, less wear, greatly reducing the failure rate of screw non-concentricity.
6. No leakage: There is a synchronous stirring function, which can solve a large part of the leakage problem of dry, loose and fine materials.

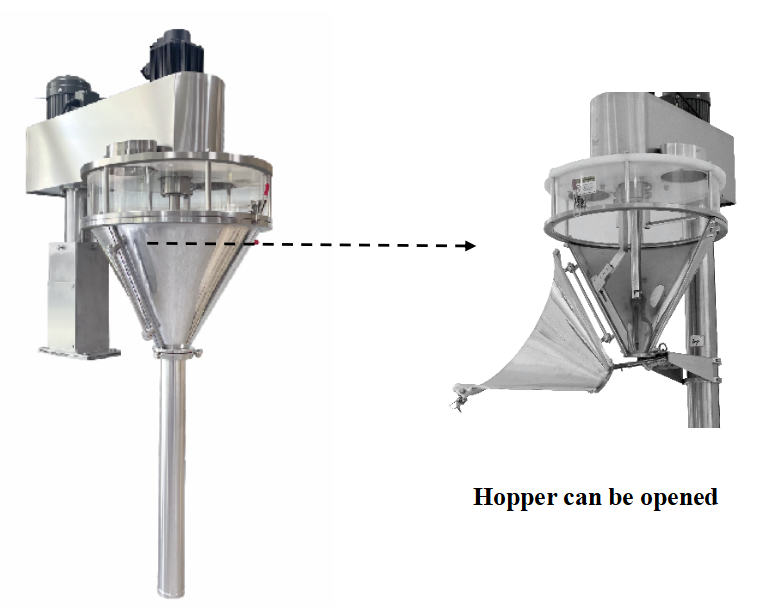

7. Easy maintenance and repair: The silo can be fully opened, and the internal components of the silo are clearly visible:
a) Convenient to adjust the relative position between agitator and screw.
b) Convenient to maintain and repair each component.

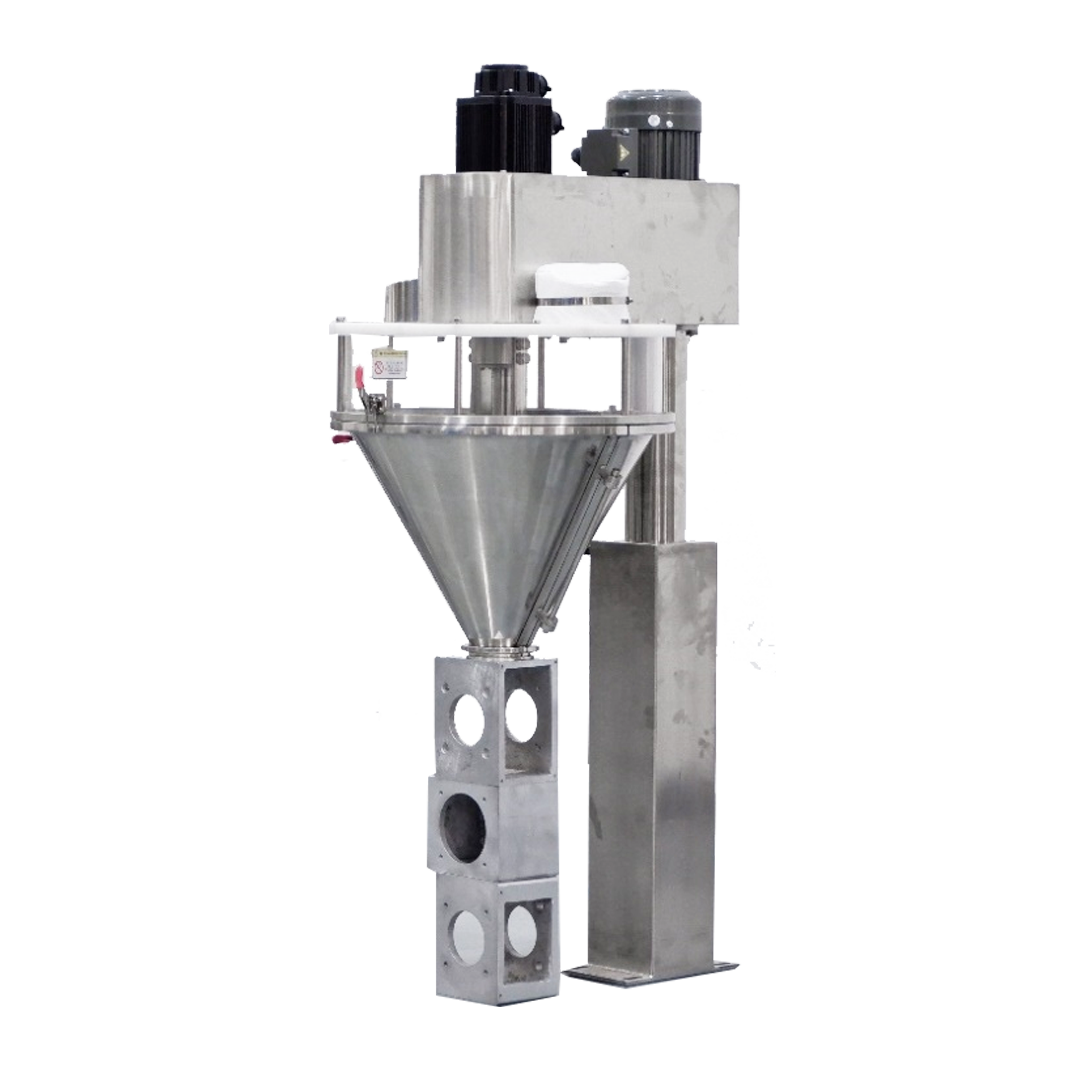

Structure Diagram

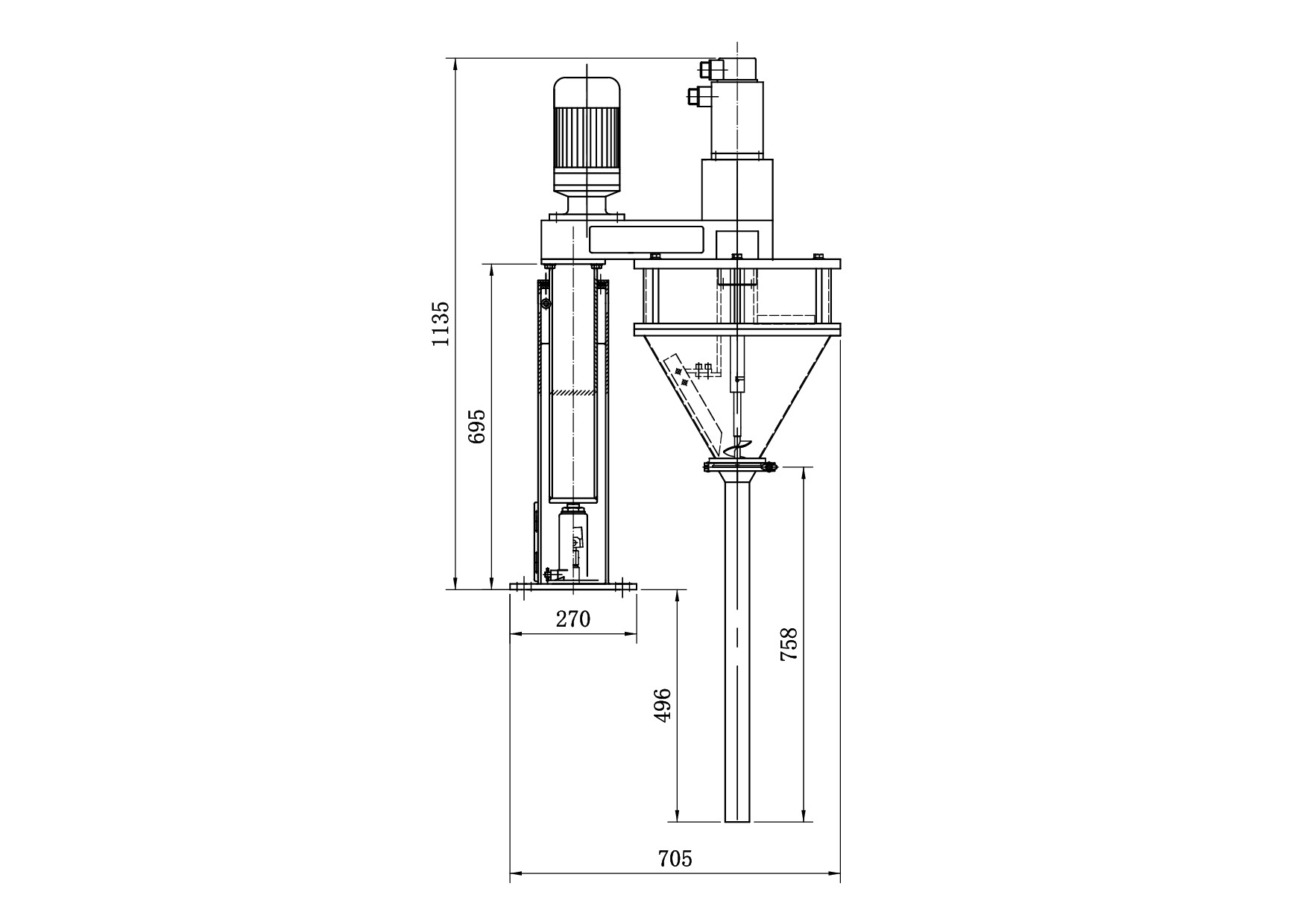

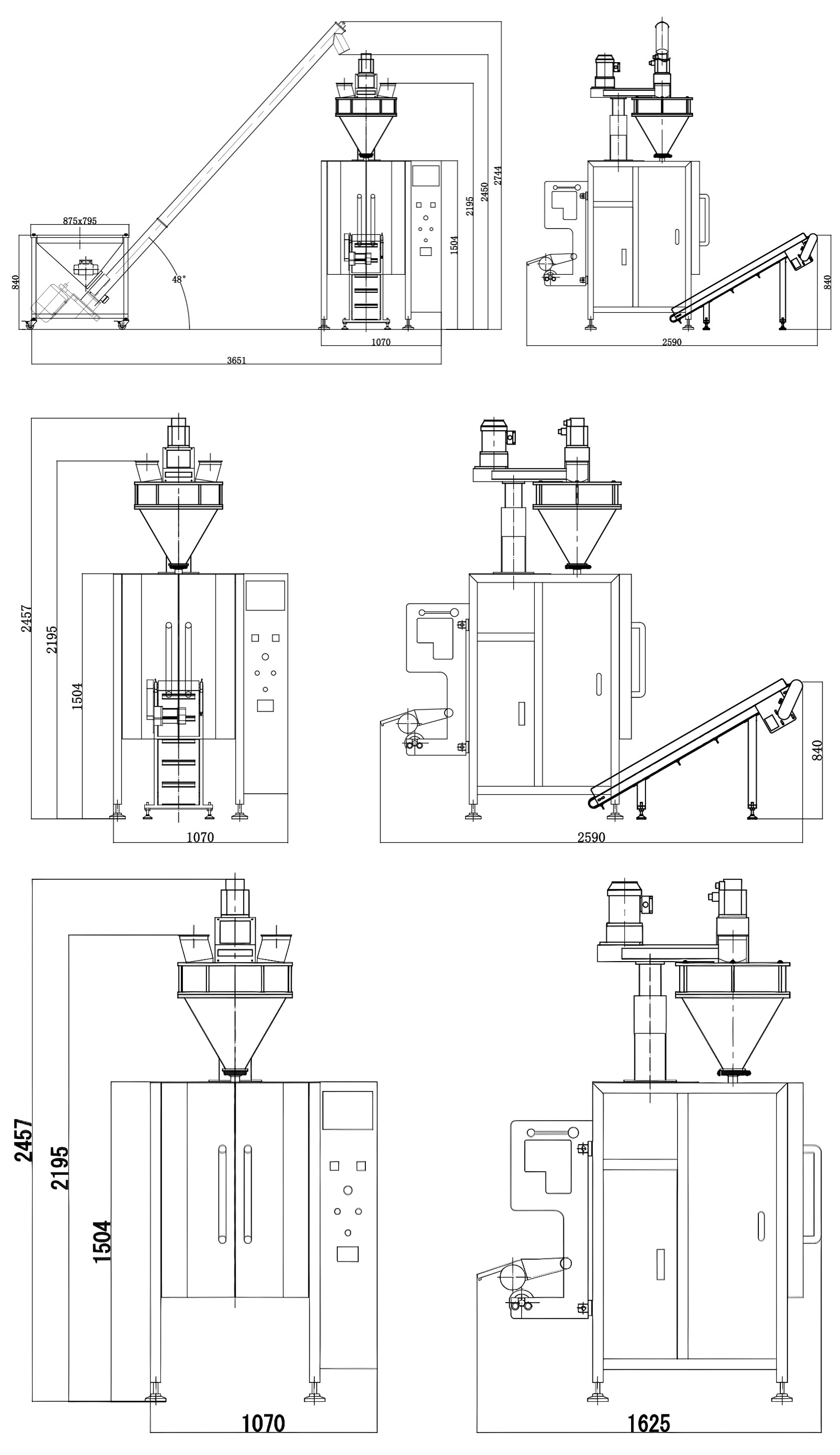

Dimension Diagram
