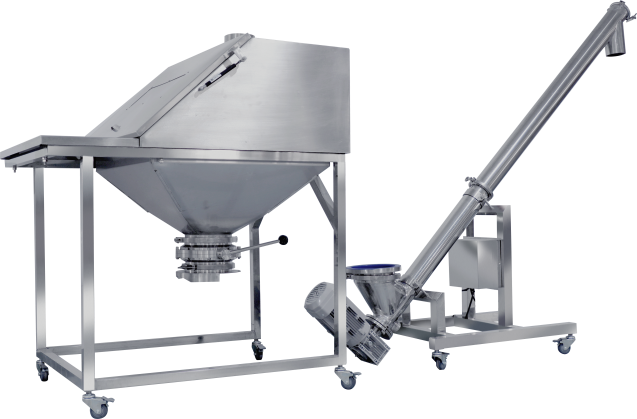

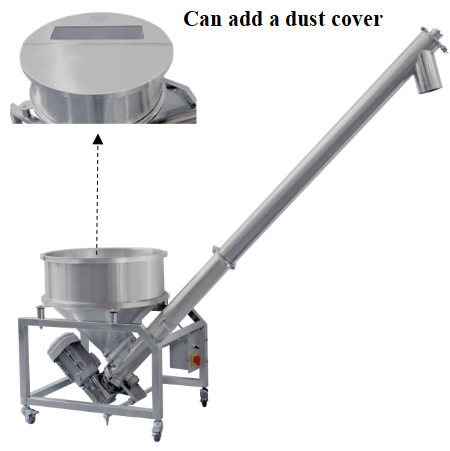

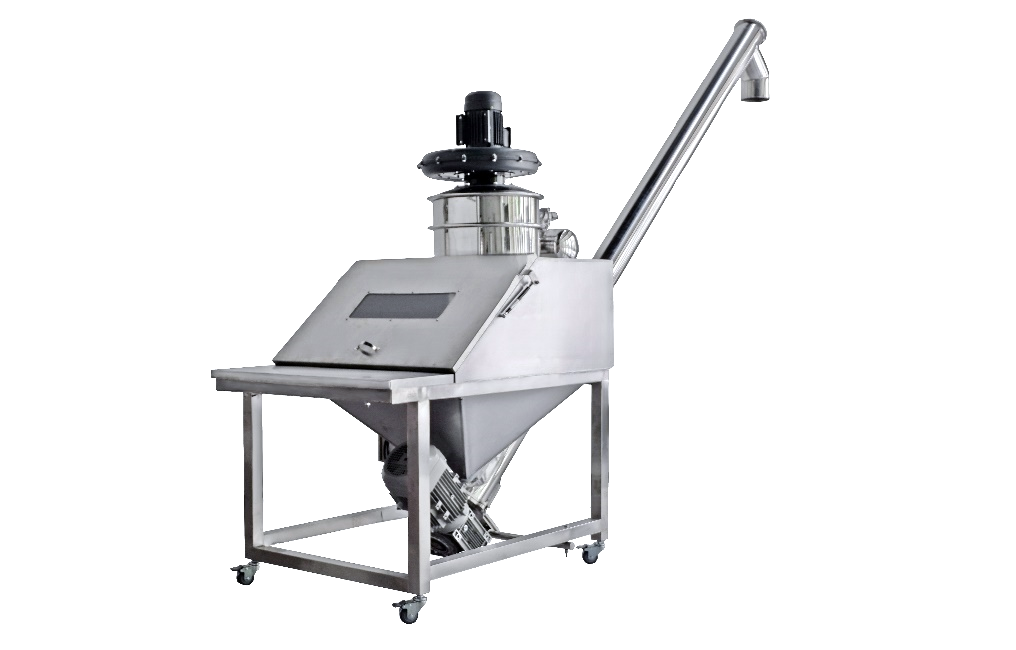

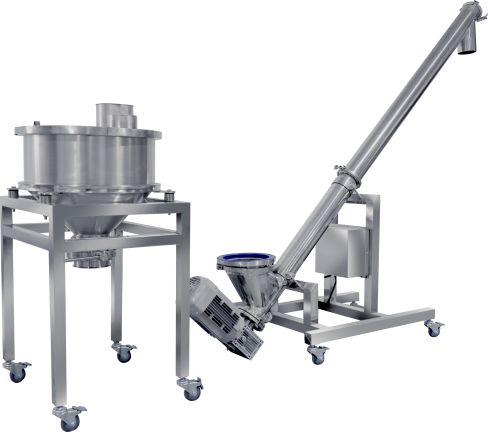

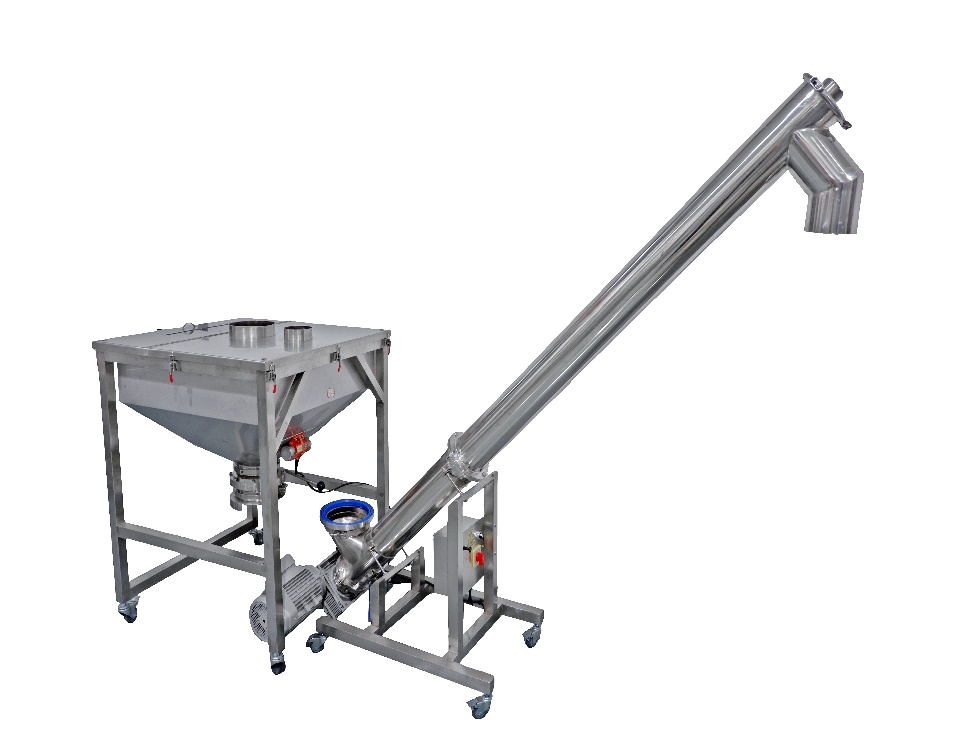

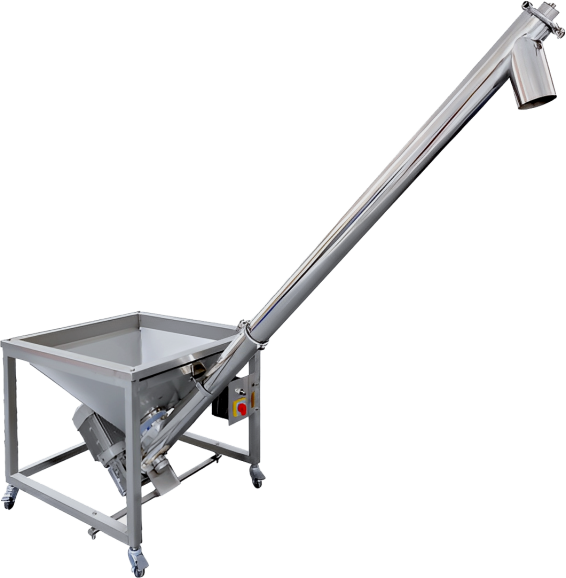

Screw Feeding Machine（APT-T3）
Technical Parameters
Machine Type | APT-T2 | APT-T3 | APT-T6 |
Transport Capacity | 1000-3000kg/h | ||
Silo Volume | 120L | ||
Voltage | AC380V | ||
Power | 1.6kw | 2.5kw | |
Machine Weight | 150kg | ||
Silo Height | 750mm | 865mm | 750 |
Dimension | 2370×875×2200mm | 2300×700×2200mm | 2560×900×1900mm |
(This is standard size above, all parameters can be customized.)
Detailed Introduction
Main Configuration:
No. | Name | Brand | Origin |
1 | Feeding Motor(Gear Motor) | SANKAI | China Zhejiang |
2 | Vibration Motor | ANBO | China Zhejiang |
3 | Forward and Reversal Switch | JINGYI | China Shanghai |
4 | Power Switch | CHINT | China Zhejiang |
Random Accessories:
No. | Name | Quantity |
1 | Clamp | 2 |
2 | Gasket | 2 |
3 | Soft Connection | 1 |
Advantages and Characteristics
1. Gear motor power: The power is connected by a gear motor, and the bottom is a hinge flange connection to prevent powder jamming.
2. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.
3. Prevent material bridging: The silo wall is equipped with a vibration motor.
4. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.
5. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clean the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.
6. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.
7. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.
8. Good quality: All 304 stainless steel, auger blades are 3mm thick,not easy to deform.
9. Movable: Install universal wheels with brakes, easy to move, no noise.

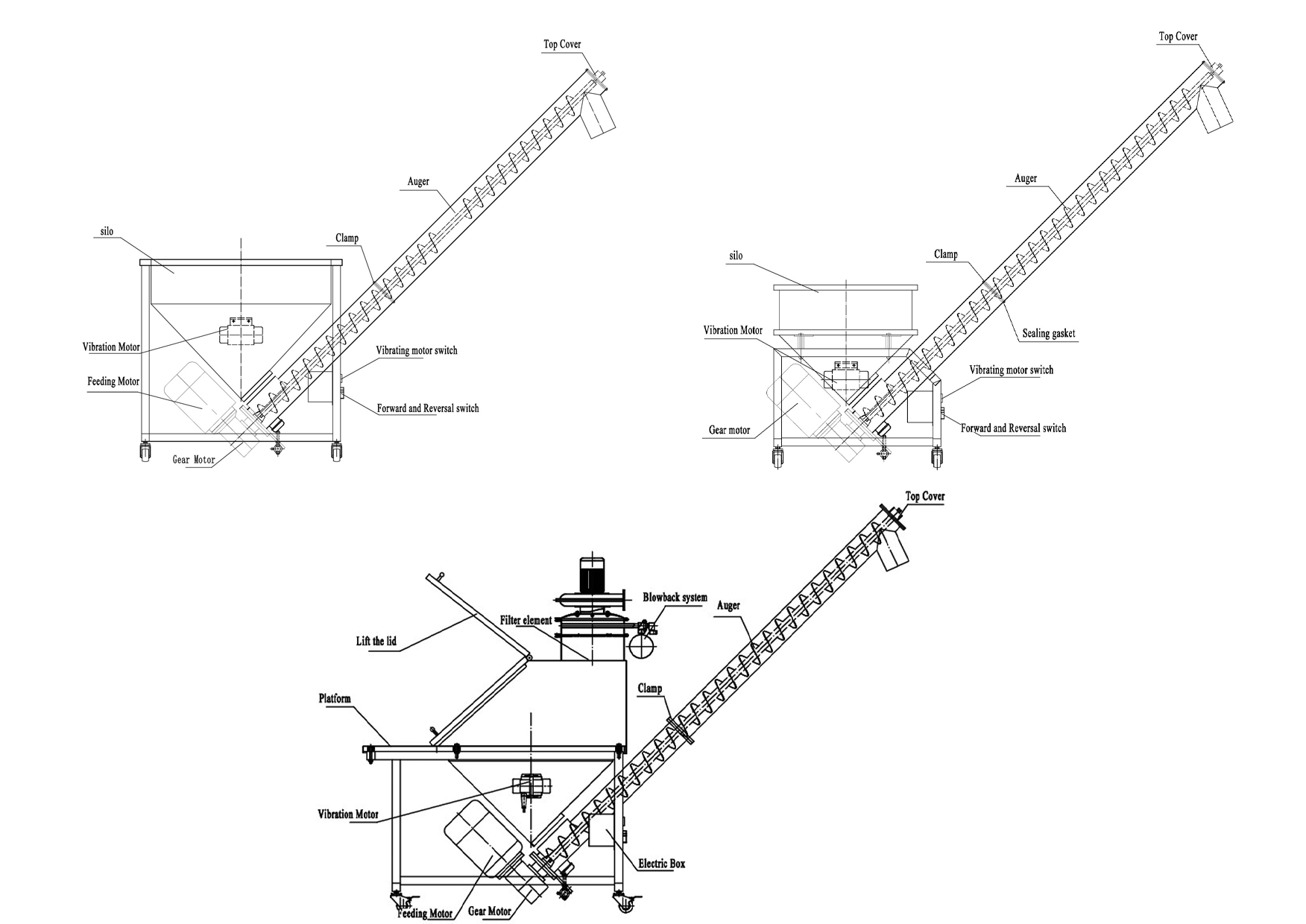

Structure Diagram

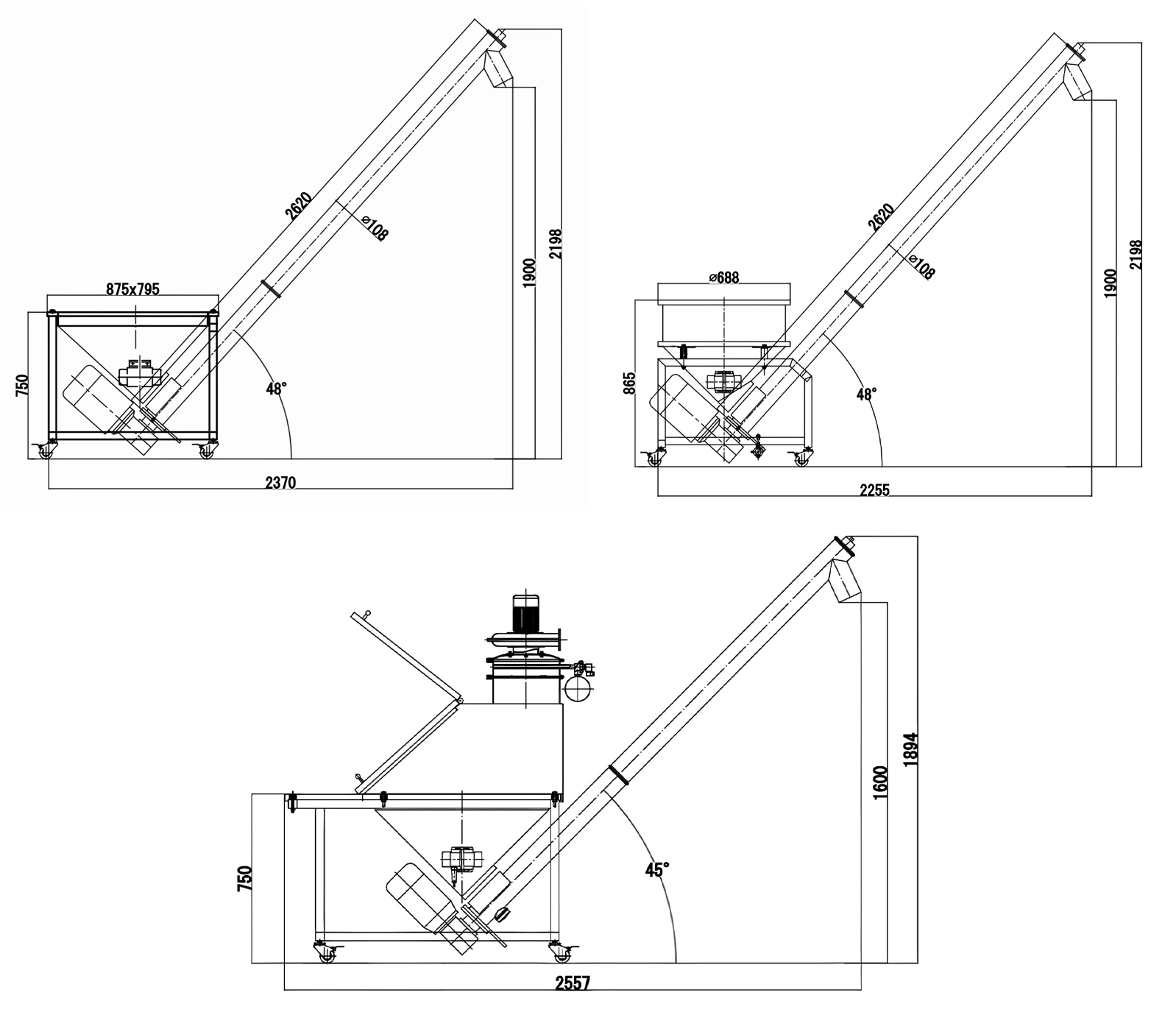

Dimension Diagram
