APG-02 Rotary Filling Machine

Technical Parameters

Packing Weight

100g-25kg

Precision

≤0.2%

Packing Speed

240-1200 bottles/h

(2 nozzles)

Voltage

AC220V

Air Pressure

04-0.6mpa

Power

3kw

Machine Weight

120kg

Dimension

L 790 × W730 × H1700mm

(These are standard parameters above, all can be customized)


Detailed Introduction

It has a wide range of applications and can be used to fill viscous and non-viscous liquids.

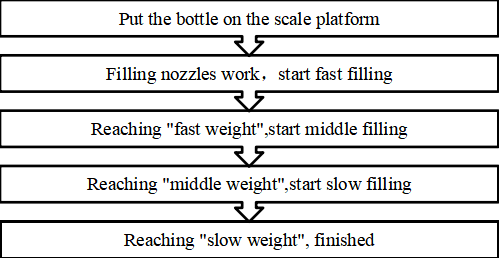

It adopts the weighing quantitative filling principle, monitors the current filling volume in real time and feeds back to the controller, which outputs fast, medium and slow filling signals according to the set data to achieve fast filling of larger specifications.




Advantages and Characteristics

1) Accurate packaging: weighing type measurement, each filling head can be fast, medium and slow filling, with high precision.

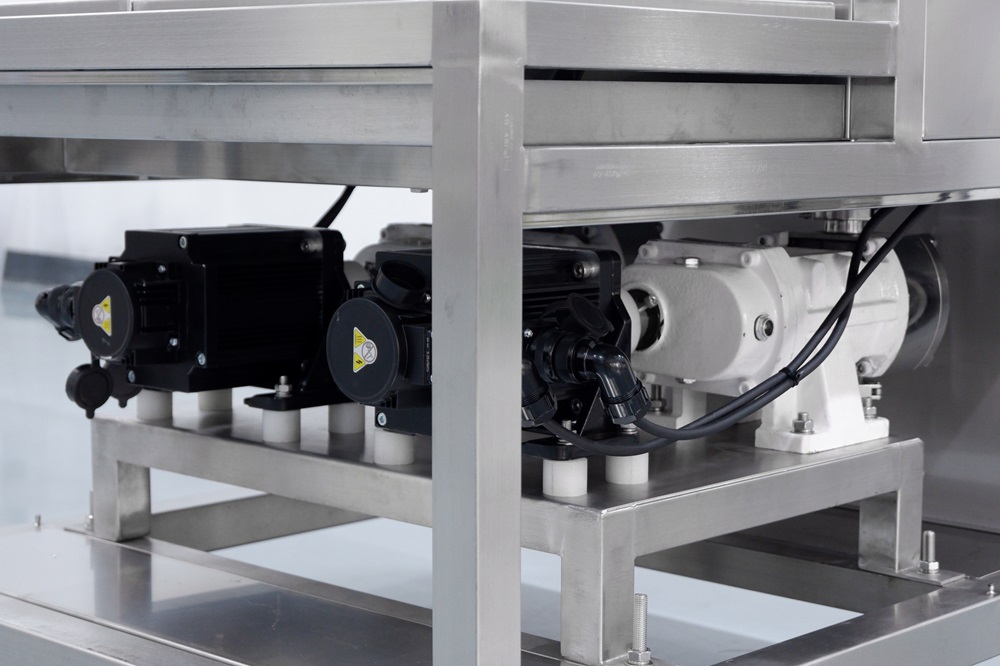

2) Stable structure: each filling head is driven by a separate servo motor.

3) Strong anti-interference: the filling heads can be used independently or simultaneously without affecting each other.

4) Wide range of applications: can fill viscous and non-viscous liquids.

5) High raw material utilization: the
liquid inlet pipe is directly inserted into the original liquid barrel,
and there is no need to pump it into the high-level tank for filling.

6) Various bottle specifications: the position of the filling head can be adjusted up and down, left and right to adapt to different bottles.

7) No foam: submerged filling, the servo motor can be infinitely adjusted to avoid the generation of foam.

8) No dripping: there is a closing device at the outlet of the pneumatic valve to prevent liquid dripping after filling.

9) Easy to clean: insert
the liquid inlet pipe directly into the clean water bucket, and it can
be thoroughly cleaned after several cycles of filling.

10) Adjustable filling speed: You can adjust the parameters directly on the touch screen to control the speed of the servo motor.

11) Simple operation: Equipped
with a touch screen, directly input parameters, and the system
automatically adjusts the fast, medium, and slow additions.

12) Strong anti-interference: The control system is an industrial-grade PLC.

13) Strong corrosion resistance: The filling valve uses a pneumatic valve with Swiss technology, and the machine uses 304/316 and polytetrafluoroethylene.

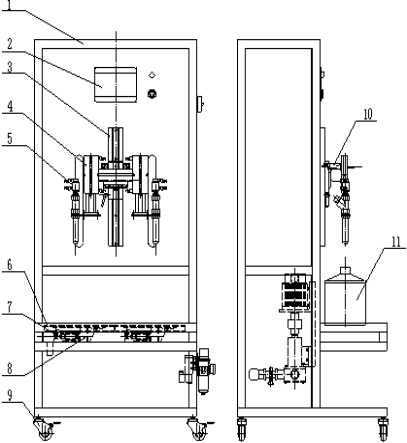

Structure Diagram

APG-02 Rotary Filling Machine

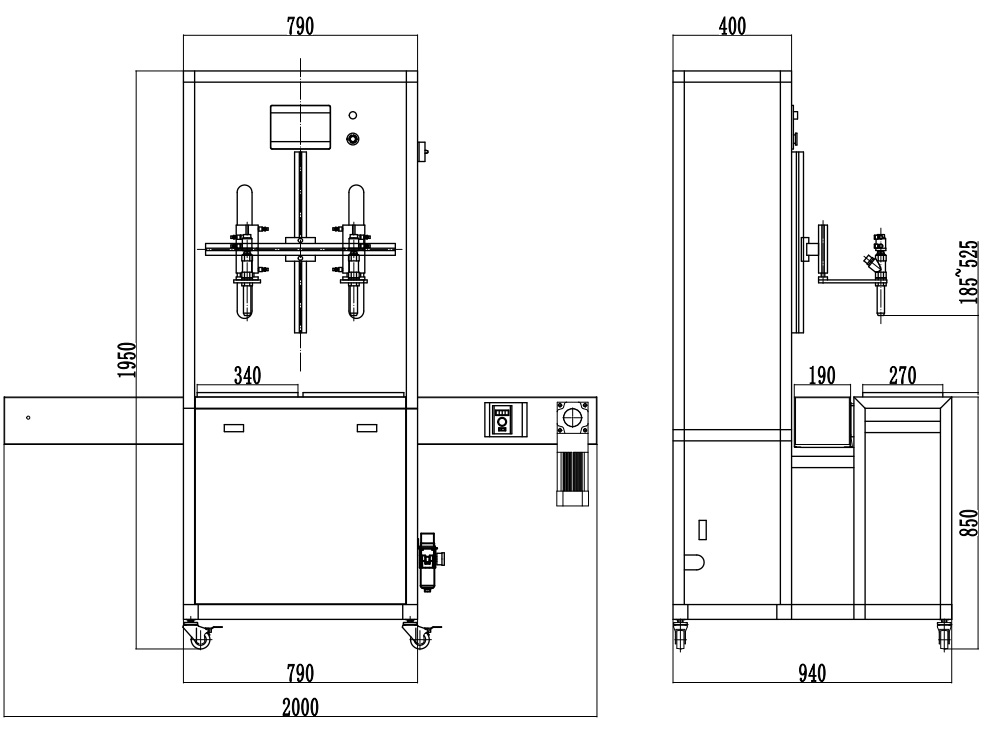

Dimension Diagram

APG-02 Rotary Filling Machine
