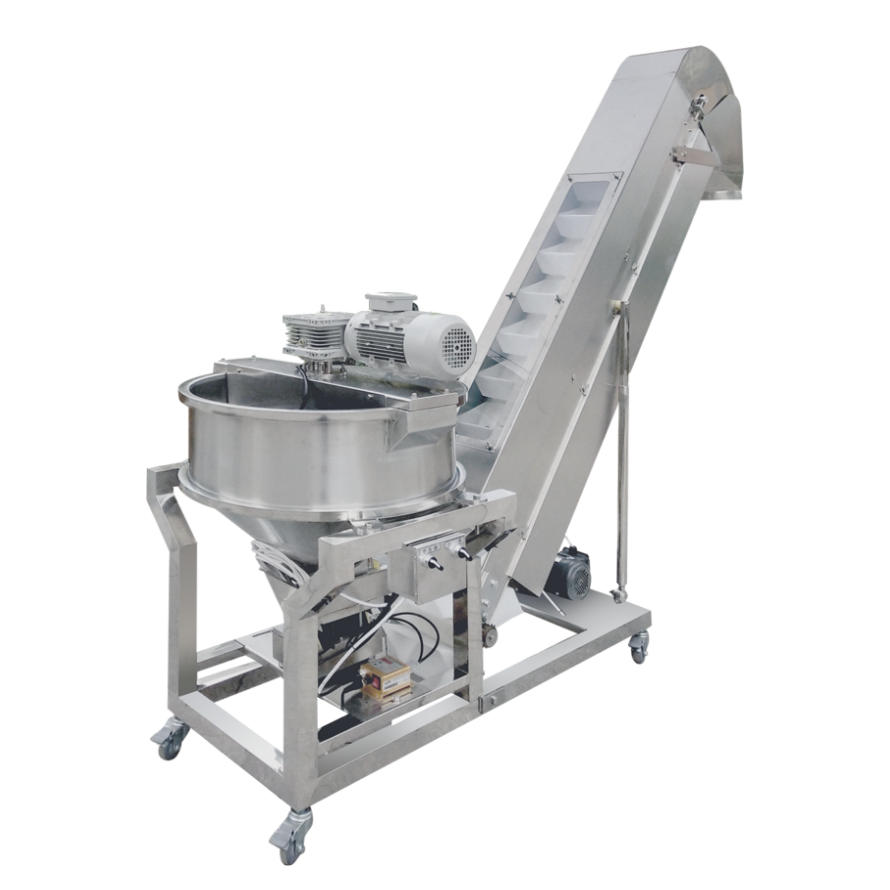

Bucket Feeding Machine (Stirring Function)

Technical Parameters

Feeding Pipe Diameter

108mm

Transport Capacity

1000-3000kg/h (depends on material)

Silo Volume

120L

Voltage

AC380V

Power

2kw

Machine Weight

300kg

Silo Height

990mm

Feeding Height

1600mm

Dimension

L 2320×W 85H 2200mm

(This is standard size, all parameters can be customized.)


Detailed Introduction

Advantages and Characteristics

1. Belt power: The power is connected by motor and belt with high speed.

2. Prevent material bridging: The silo is equipped with a stirrer.

3. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.

4. Good quality: Corrosion-resistant, auger blades are 3mm thick and not easy to deform.

5. Movable: Install universal wheels with brakes, easy to move, no noise.

6. Less overflow: Vibration conveying from the silo to the hopper.

7. Stable: The vibration regulator has an automatic voltage stabilization function to avoid inaccurate measurement caused by unstable voltage.

8. Adjustable Speed: The speed is continuously adjustable.

9. No sliding down: It is equipped with an anti-reversal device.

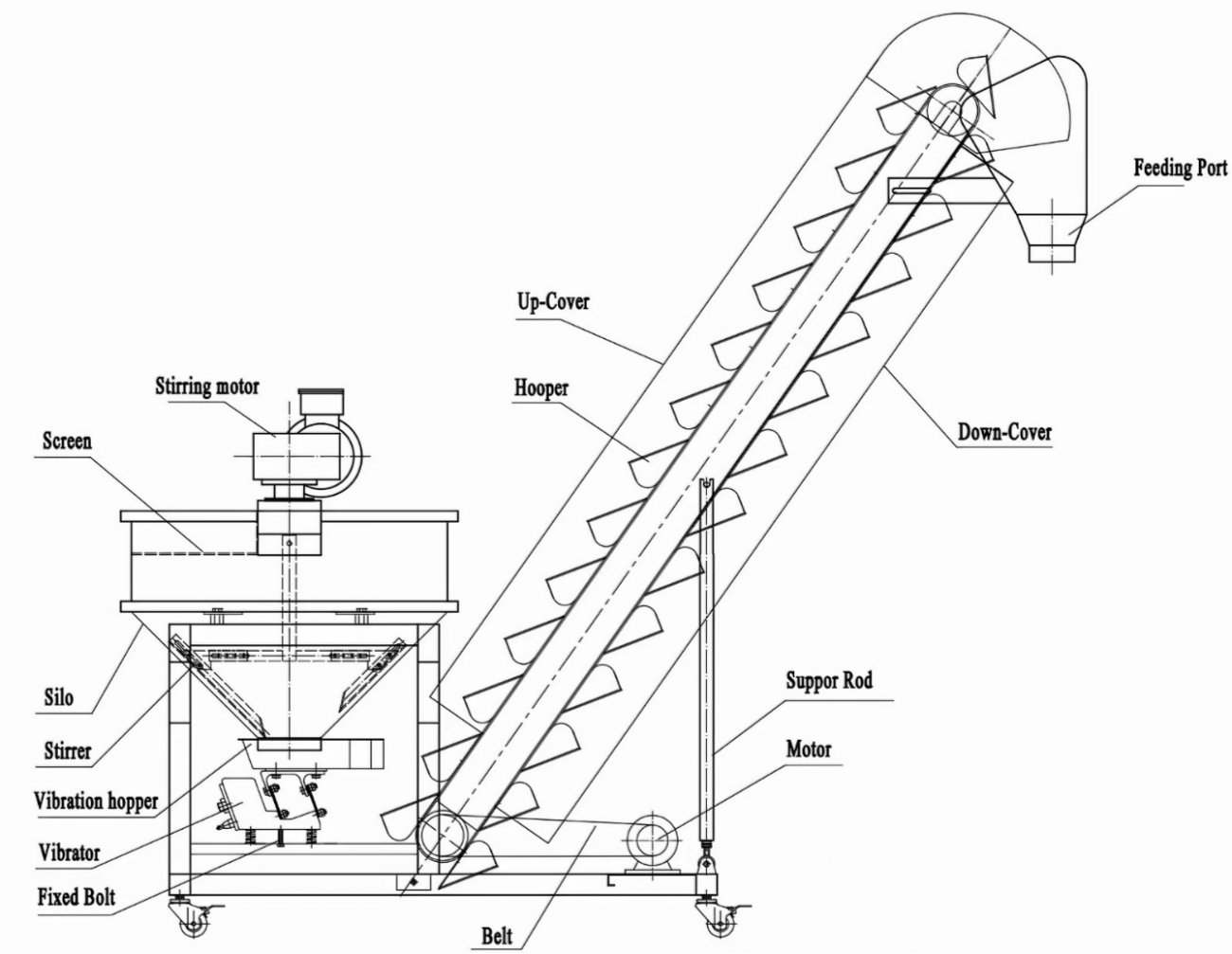

Structure Diagram

Bucket Feeding Machine (Stirring Function)

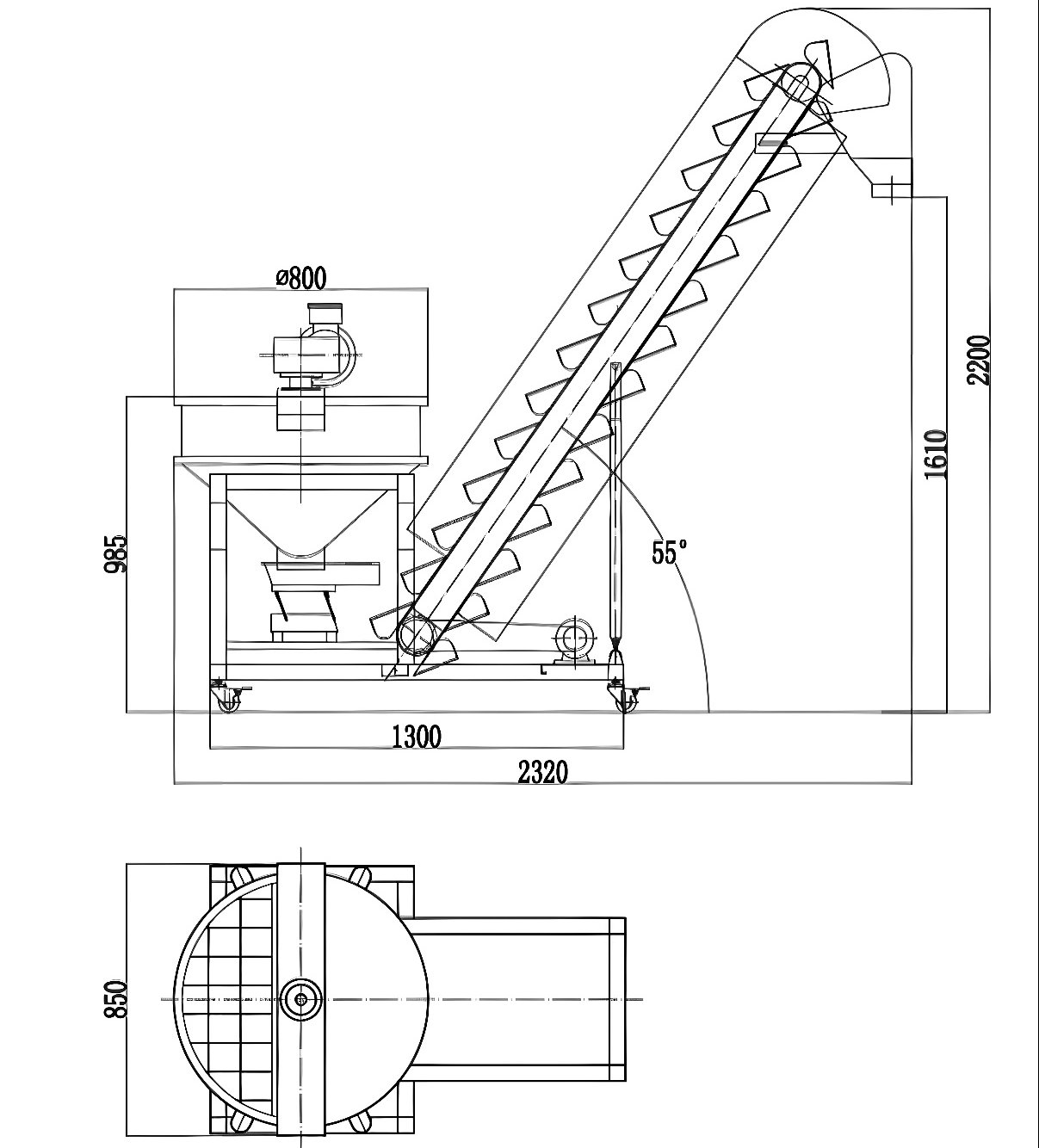

Dimension Diagram

Bucket Feeding Machine (Stirring Function)
