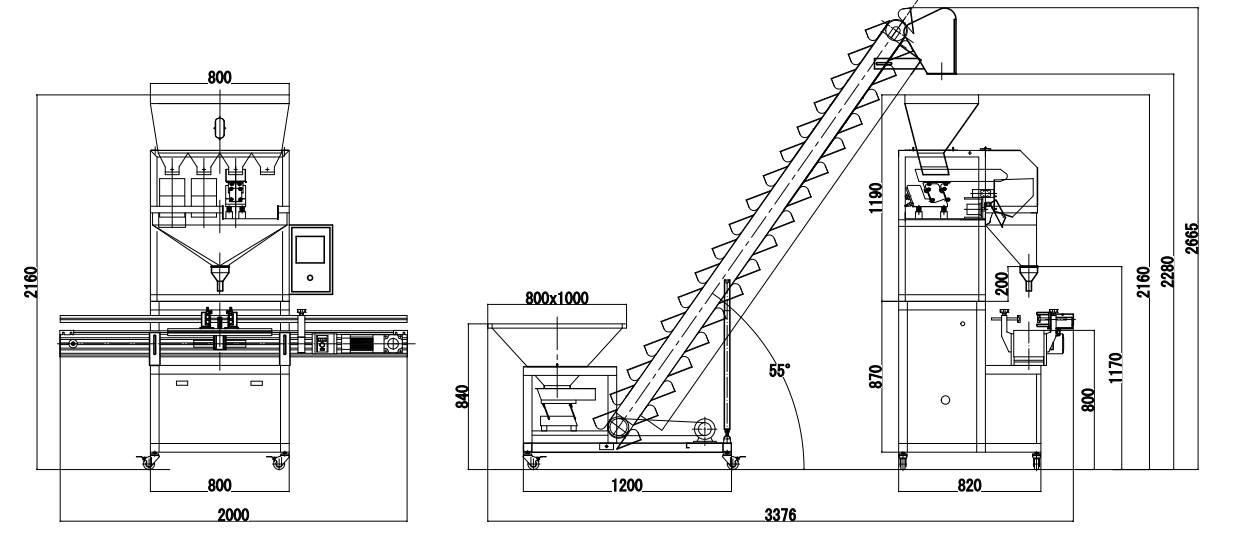

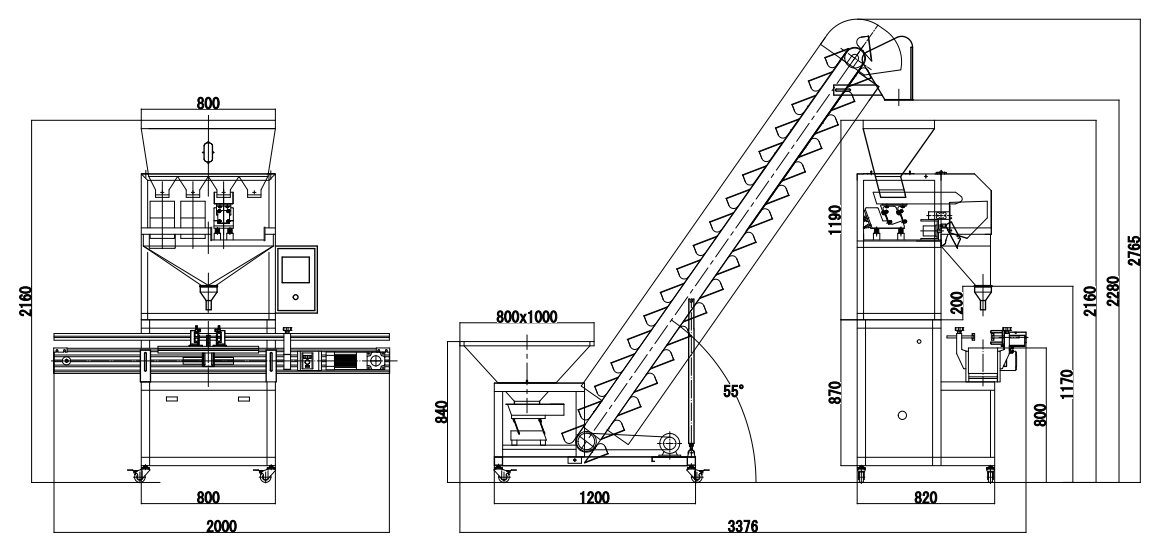

Packing Line Diagram
Technical Parameters
Detailed Introduction
Advantages and Characteristics
Structure Diagram
Dimension Diagram
Additional Accessories
GMB-02C-Granule Filling Machine (Four Scales)
Technical Parameters
Packing Weight | 5g-2KG (Depends on Material) |
Hopper Volume | 3.5L |
Hopper QTY | 4 |
Packing Speed | 1200-3600 bottles/h |
Packing Accuracy | ≤±0.3% (Depends on Material) |
Power | AC220V 0.8KW |
Machine Weight | 200KG |
Dimensions | L800 × W820 × H2160mm |
(The above is standard size, all can be customized)
Detailed Introduction
Working Principle:(Weighing Measurement)
0-190g: Fast Filling(Weighing) Material enters into vibration feeder. Vibration starts fast filling until reaching the "fast weight" |
190-200g: Slow Filling(Weighing) Vibration starts slow filling until reaching the "slow weight" |
“190g” “200g” is just an example,the specific setting depends on the situation. |
Advantages and Characteristics
1. Stability: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.
2. Fast speed: Combining gravity feeding and vibration feeding, four weighing buckets measure and discharge alternately.
3. High accuracy: Step-type multi-speed feeding, small error.
4. Auto Calculation: The system can automatically calculate the fast and slow weight, and correct the error value.
5. Stable structure: One weighing bucket corresponds to one vibrator and one weighing sensor, which are independent of each other.
6. Simple operation: Equipped with electronic touch screen, weight parameters can be directly input.
7. Easy to clean: The surrounding open design, the dust cover can be opened, and the interior is easy to clean.

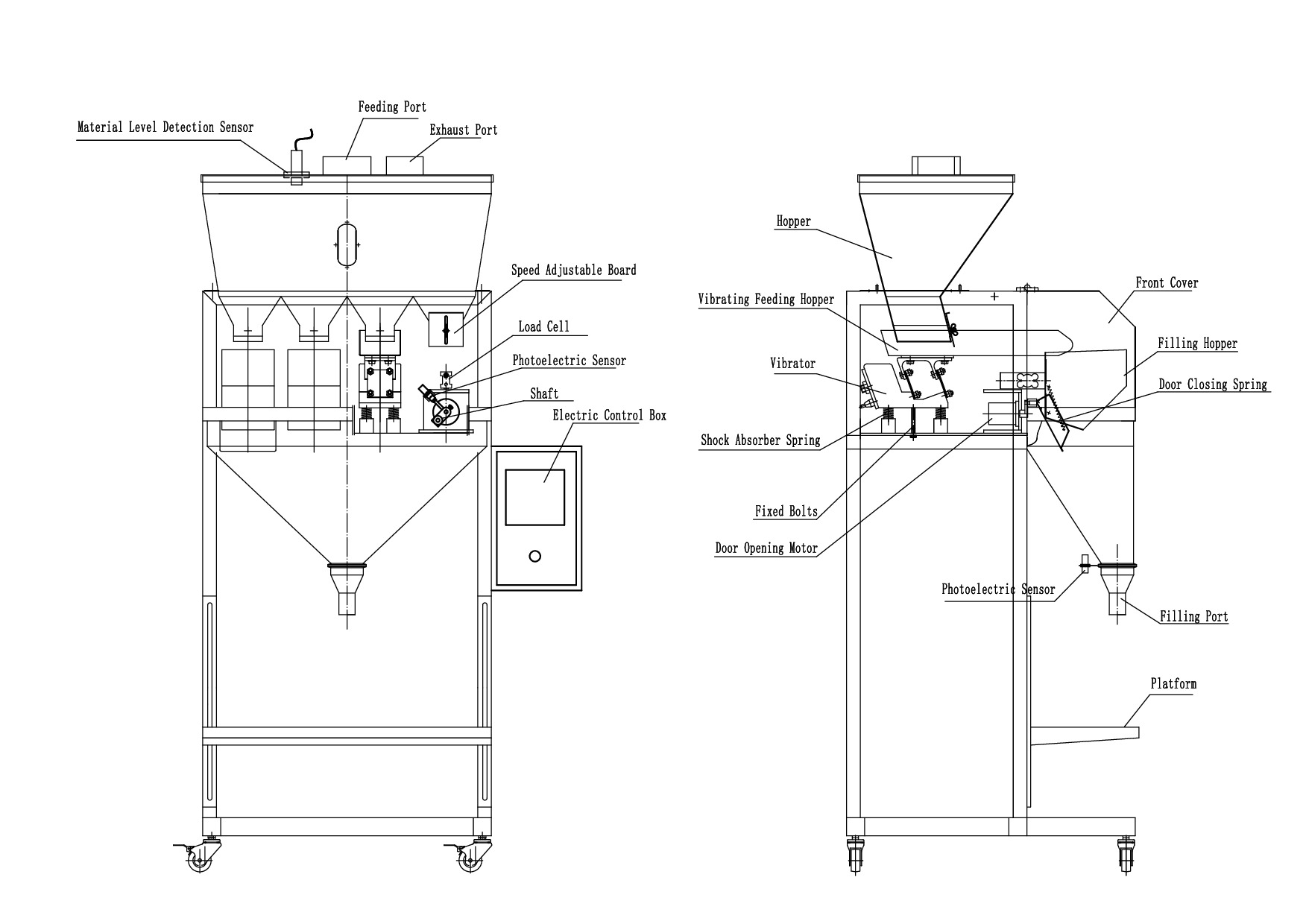

Structure Diagram

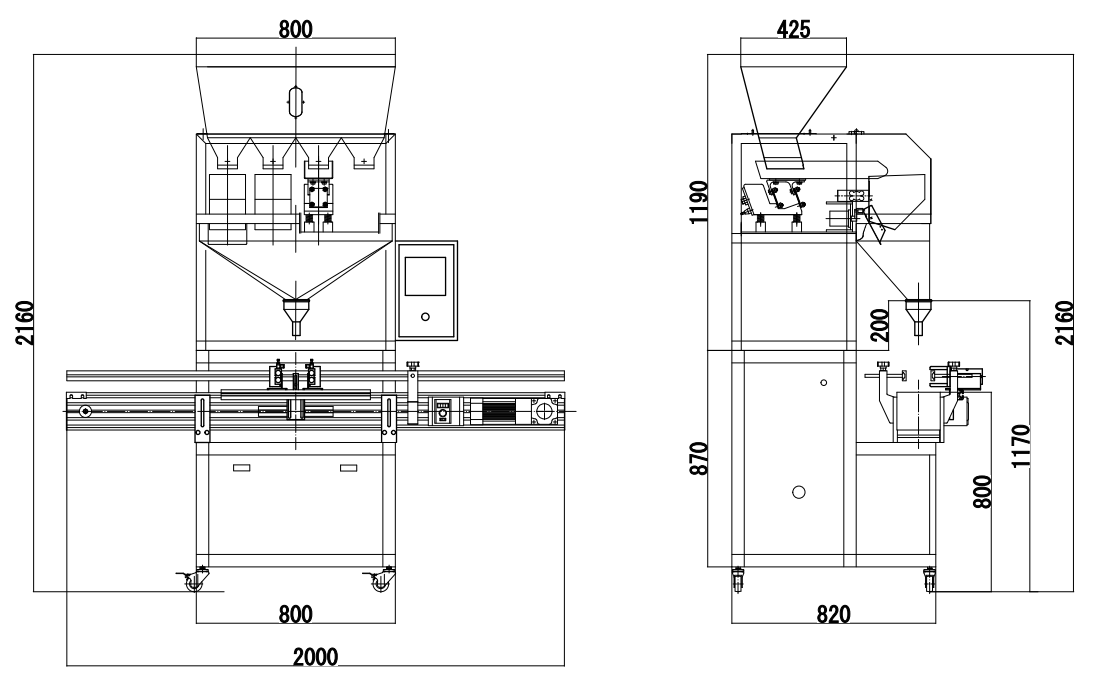

Dimension Diagram
Additional Accessories

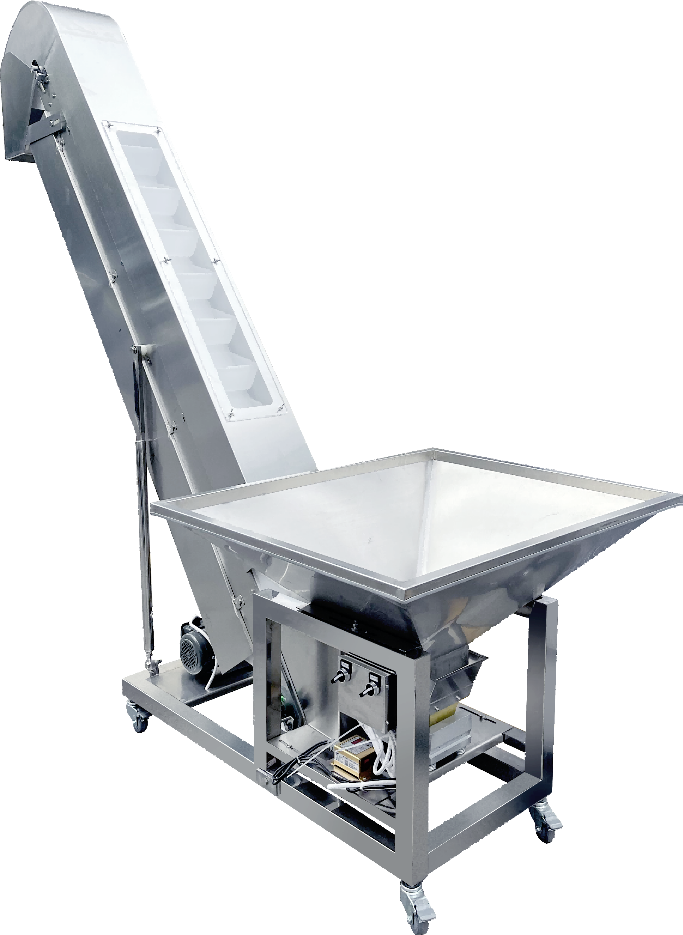

Bucket Feeding Machine
Technical Parameters
Model | With upper cover | Without upper cover |
Transport Capacity | 1000-3000kg/h (Depend on Materials) | |
Silo Volume | 120L | |
Voltage Power | AC220V 1KW | |
Weight | 200kg | |
Feeding Height | 1860mm | |
Silo Height | 840mm | |
(The above are standard sizes, all parameters can be customized)
Detailed Introduction
Advantages and Characteristics
1. Vibration conveying from the silo to the hopper, less overflow.
2. The vibration regulator has an automatic voltage stabilization function to avoid inaccurate measurement caused by unstable voltage.
3. The conveying speed is continuously adjustable.
4. It has a material level control function, and when used with a filling machine, it can realize automatic feeding and stopping.
5. It is equipped with an anti-reversal device to prevent the material from sliding down.

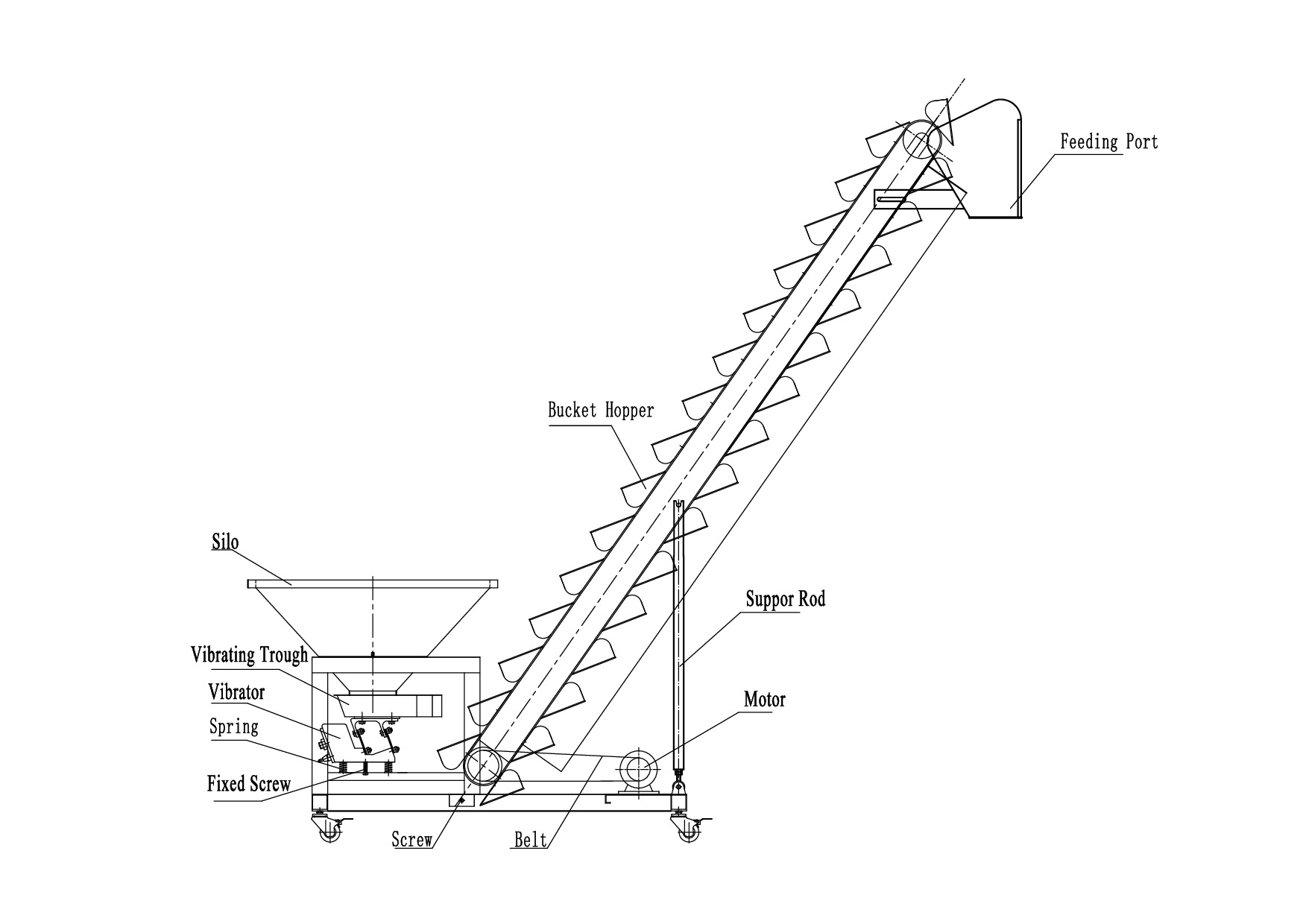

Structure Diagram

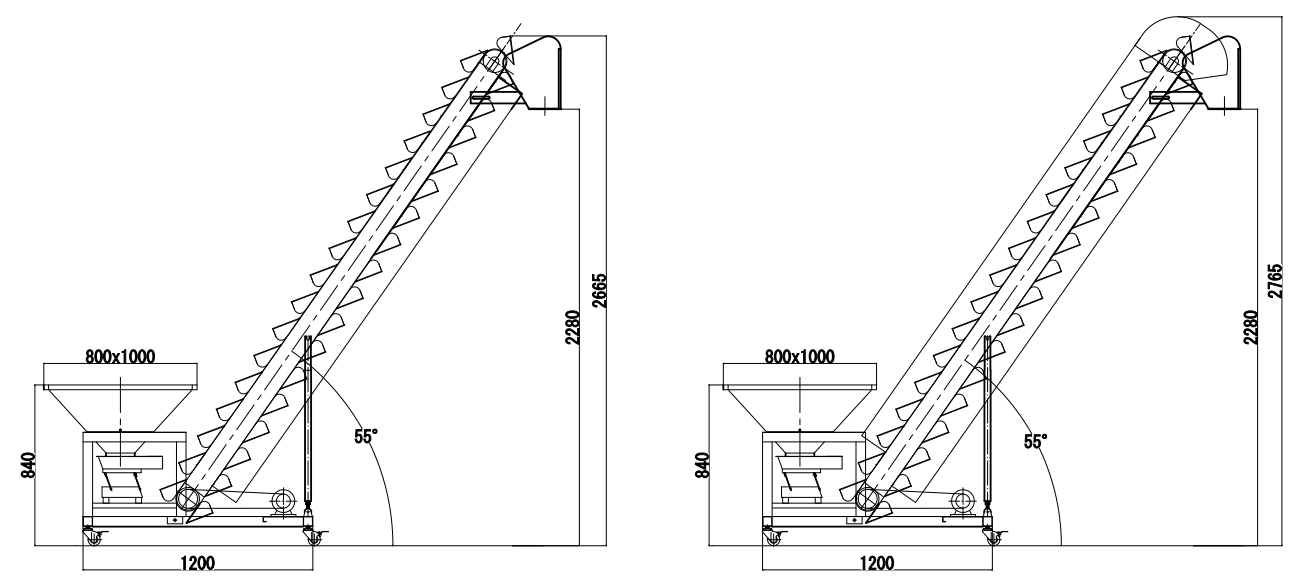

Dimension Diagram
