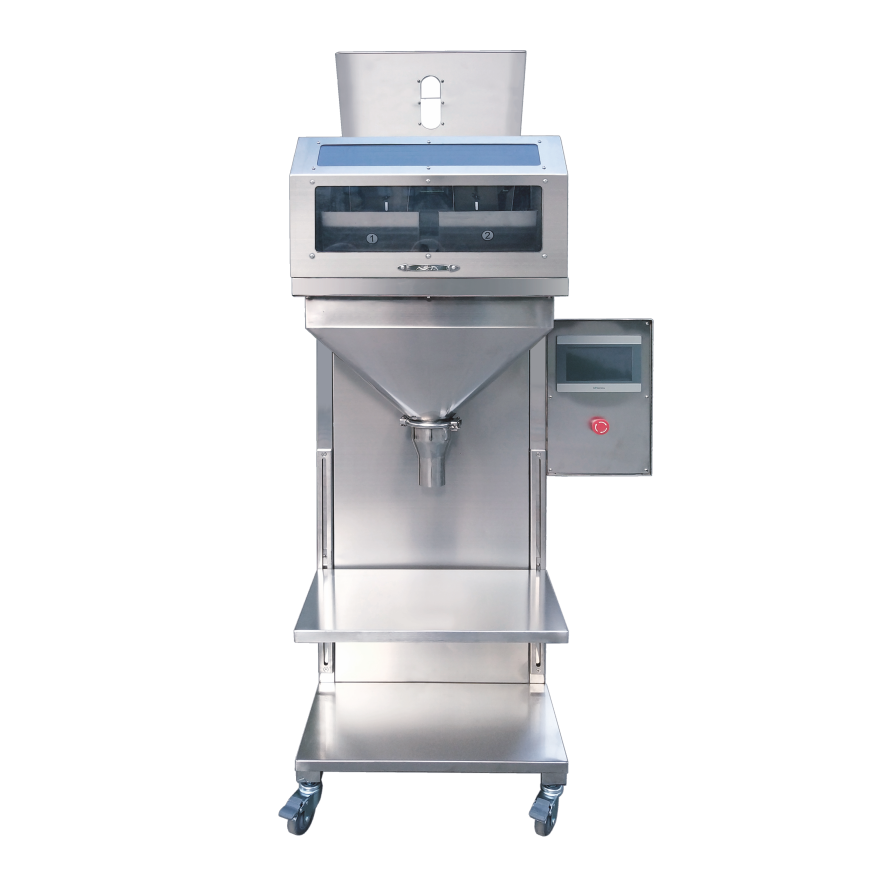

GMB-02B Powder Filling Machine
Technical Parameters

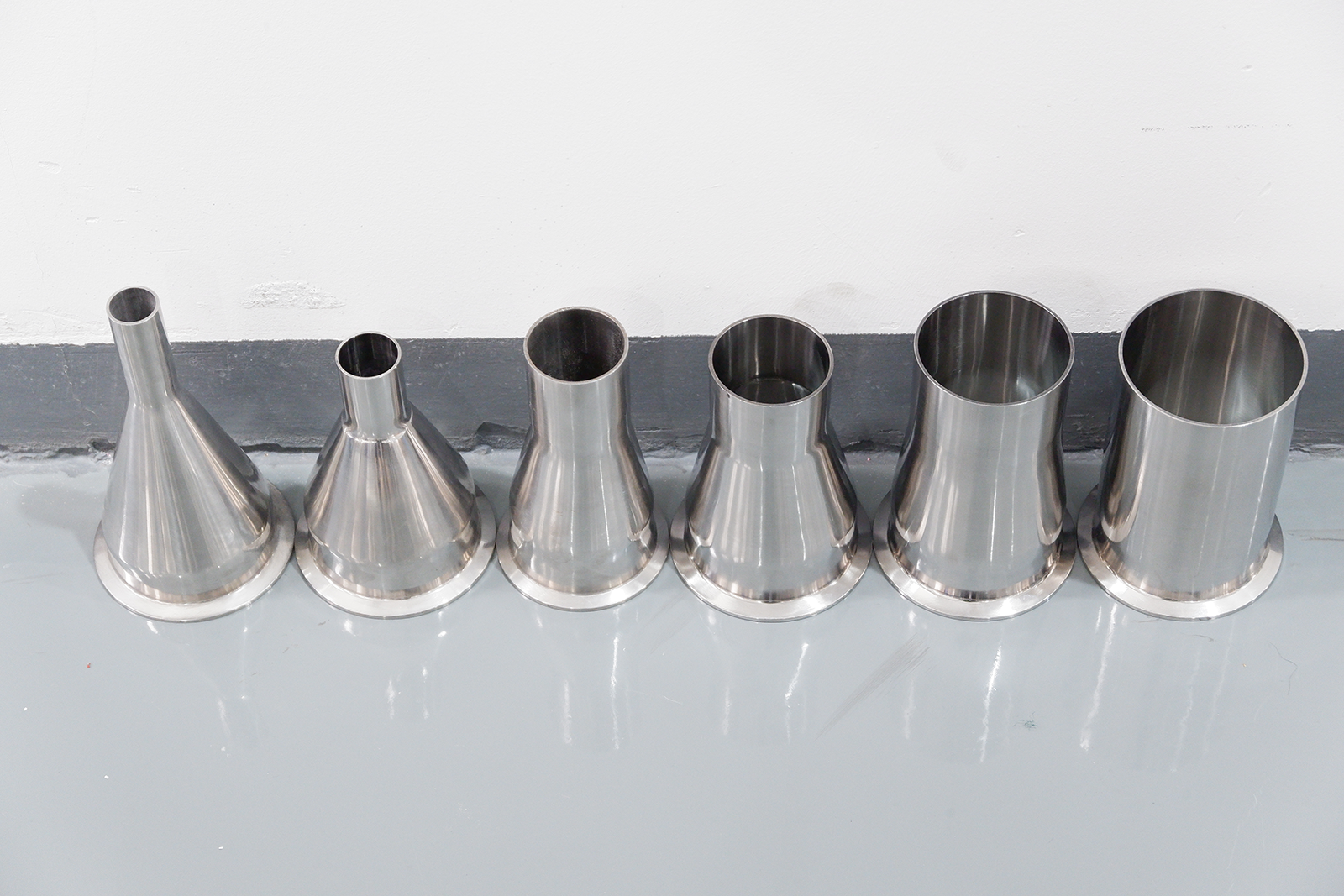

Filling Port | 22mm/32mm/45mm 60mm/76mm/89mm | |||||
Packing Weight | 5g-6KG (Depends on Material) | |||||
Hopper Volume | 5L | |||||
Hopper QTY | 2 | |||||
Packing Speed | 1200-1800bags/h | |||||
Packing Accuracy | ≤±0.3% (Depends on Material) | |||||
Power | AC220V 0.8KW | |||||
Machine Weight | 120KG | |||||
Dimensions | L850 × W800 × H2000mm | |||||
(The above is standard size, all can be customized)
Detailed Introduction
0-2.8KG: Fast Filling(Weighing) Material enters into vibration feeder. Vibration starts fast filling until reaching the "fast weight" |
2.8-3KG: Slow Filling(Weighing) Vibration starts slow filling until reaching the "slow weight" |
“2.8KG” “3KG” is just an example,the specific setting depends on the situation. |
Advantages and Characteristics
1. Stability: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.
2. Fast speed: Combining gravity feeding and vibration feeding, double weighing buckets measure and discharge alternately.
3. High accuracy: Step-type multi-speed feeding, small error.
4. Auto Calculation: The system can automatically calculate the fast and slow weight, and correct the error value.
5. Stable structure: One weighing bucket corresponds to one vibrator and one weighing sensor, which are independent of each other.
6. Simple operation: Equipped with electronic touch screen, weight parameters can be directly input.
7. Two feeding methods: photoelectric induction and foot switch feeding are compatible.
8. Easy to clean: The surrounding open design, the dust cover can be opened, and the interior is easy to clean.

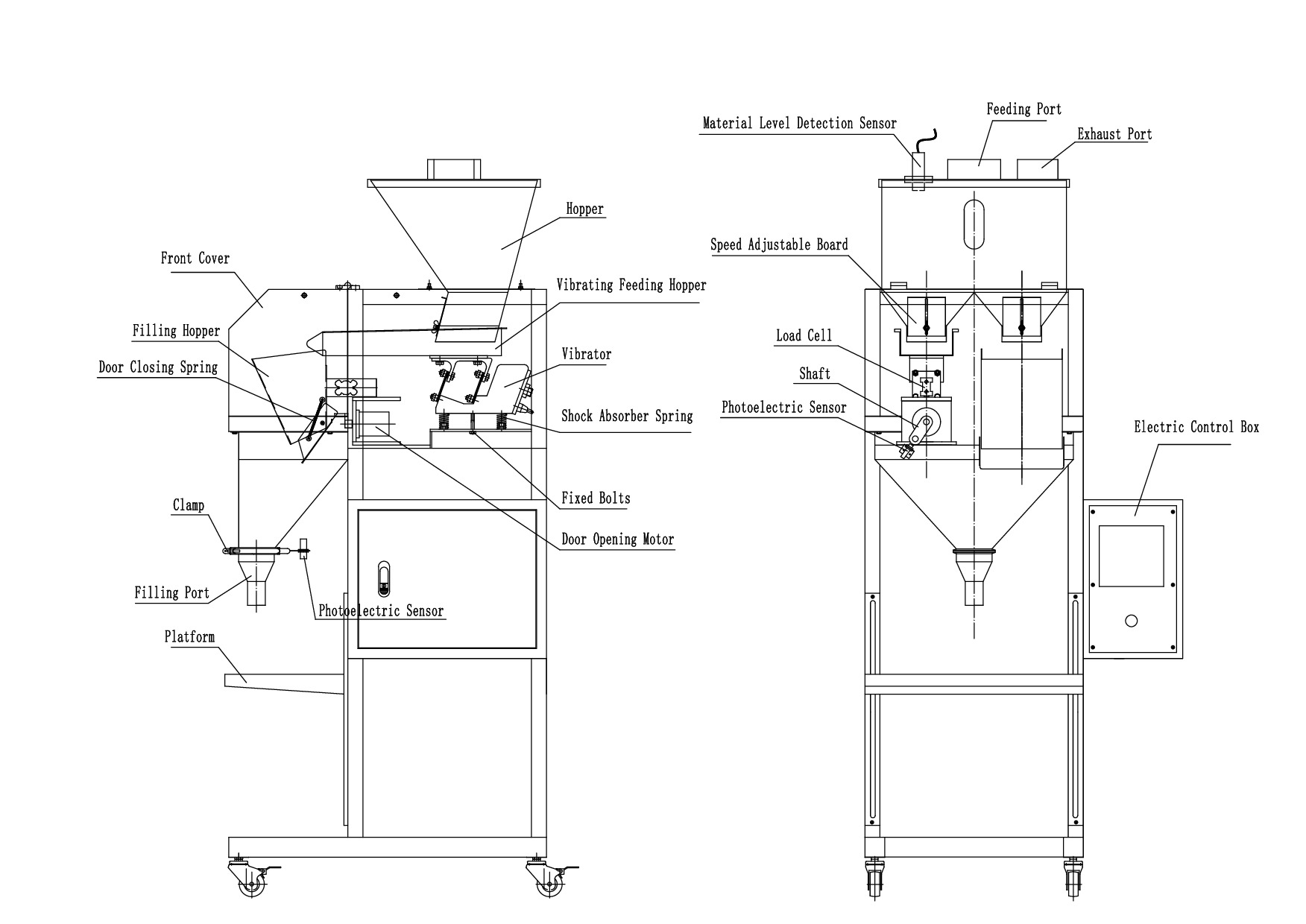

Structure Diagram

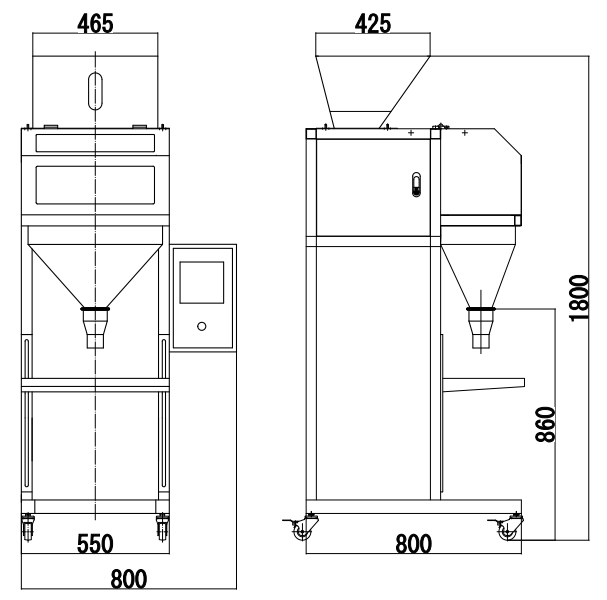

Dimension Diagram
