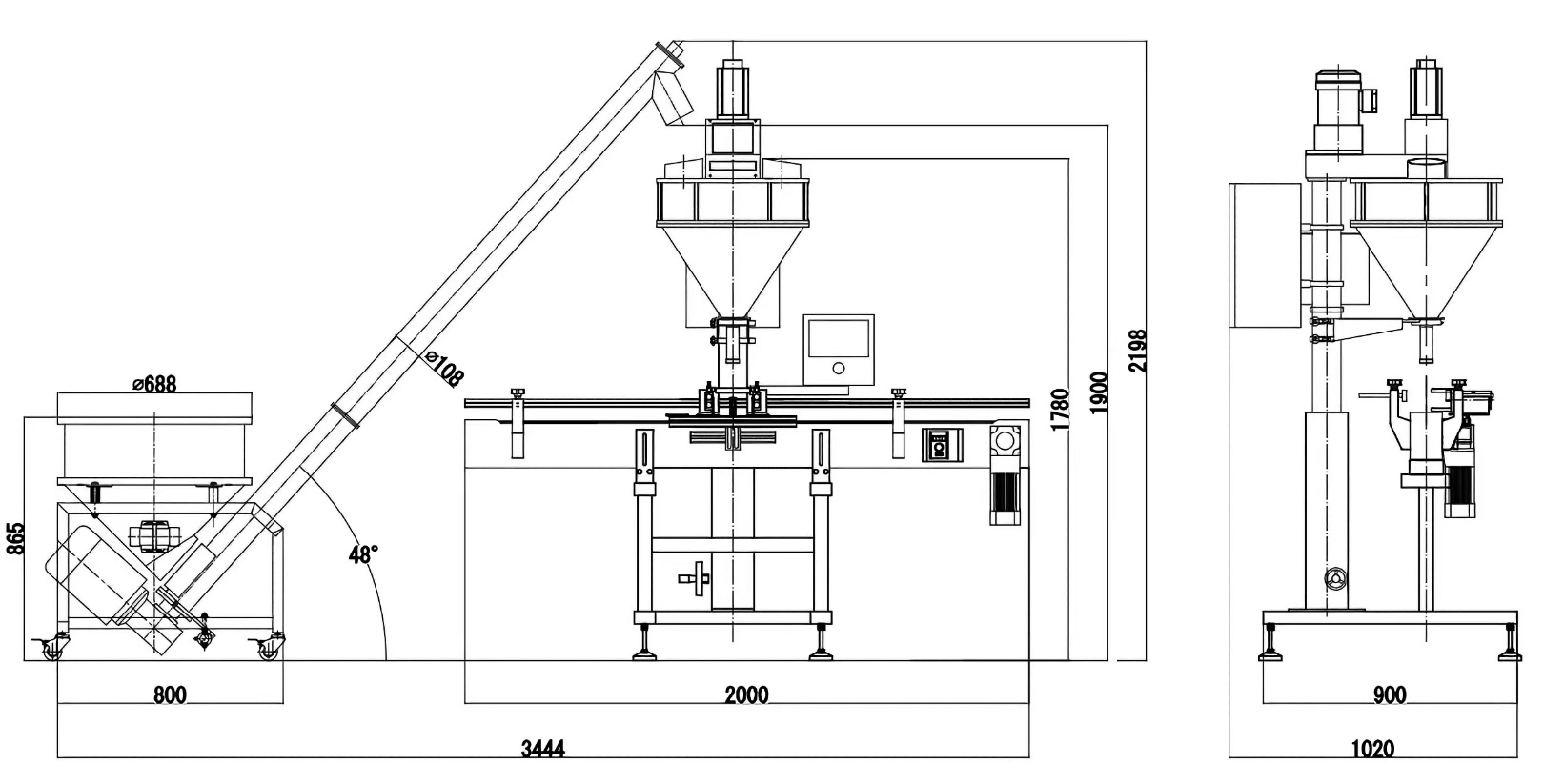

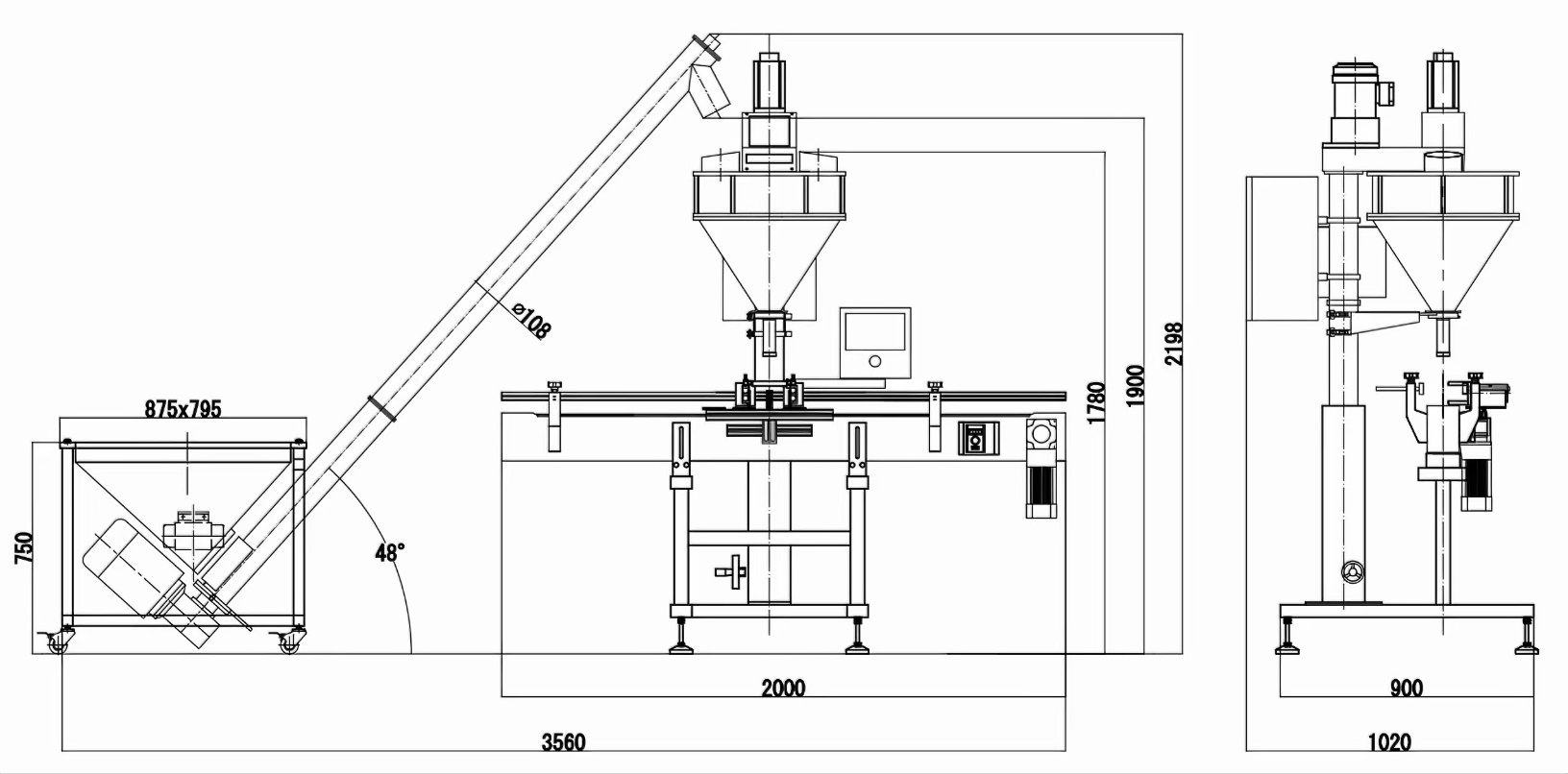

APG-01B Packing Line Diagram
Technical Parameters
Detailed Introduction

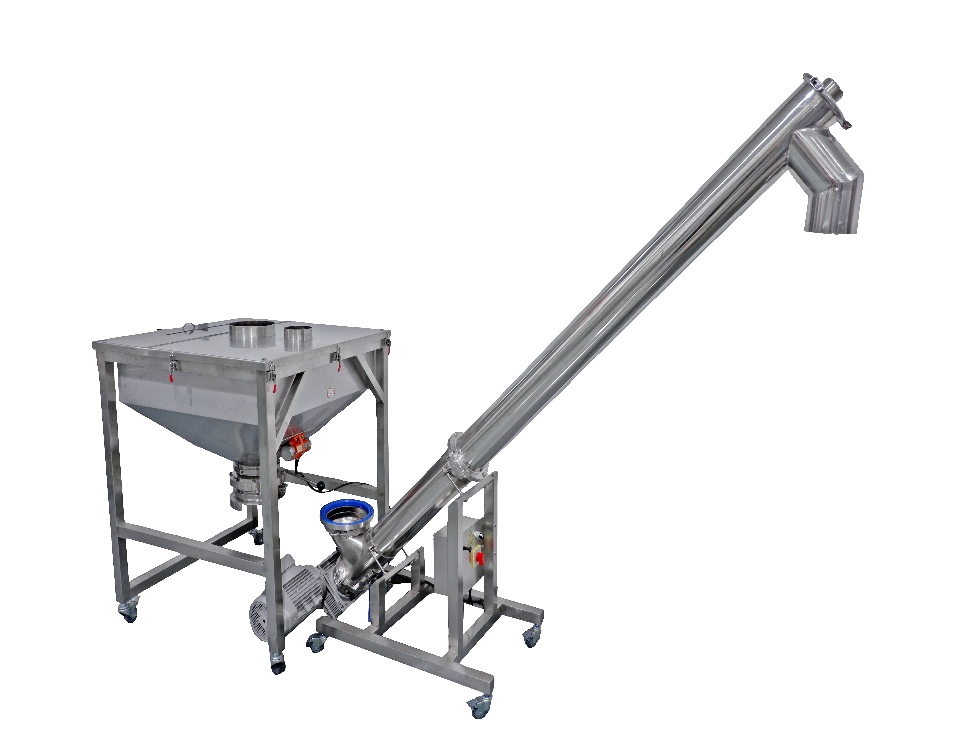

APT-T2 Square Silo

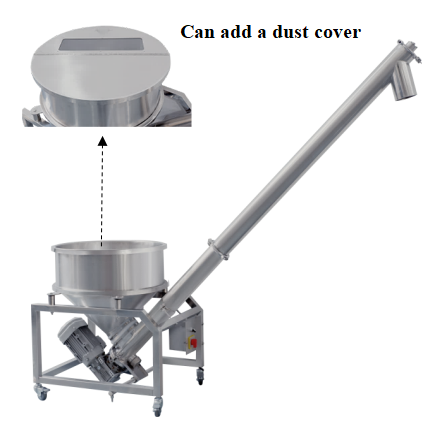

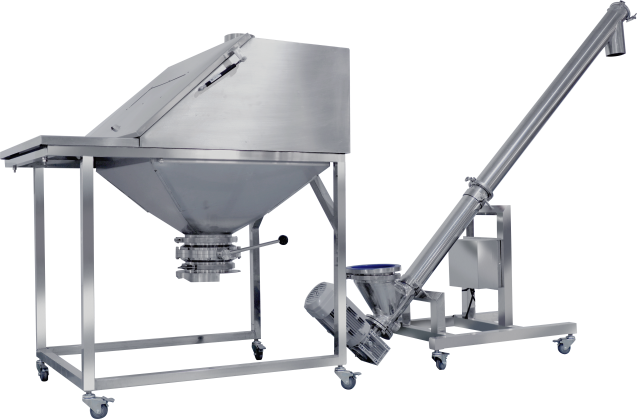

APT-T3 Round Silo
Advantages and Characteristics
Structure Diagram
Dimension Diagram
Additional Accessories
Powder Filling Machine
Technical Parameters
Measuring | Volume | Weight |
Packing Weight | 10g-1000g (Depend on materials) | 10g-5000g (Depend on materials) |
Packing Speed | 20-40(bottles/min) | 5-25(bottles/min) |
Packing Accuracy | ≤1% | ≤0.3% |
Power | 1.2kw | |
Air Pressure | 5-8kg/cm2 | |
Machine Weight | 220kg | |
Dimension | 2000×1050×2150mm | |
Detailed Introduction
Summary：
1、 This machine can form a complete filling line with bottle unscrambler, capping machine, labeling machine, etc.
2、 It is suitable for packaging powder and small granular materials, such as powder, medicine, veterinary medicine, glucose, condiments, solid beverages, carbon powder, talcum powder, pesticides, etc.
Dust collection device or leak prevention device can be added according to different materials, and three-nozzle, and four-nozzle equipment can be produced according to the requirements of packaging

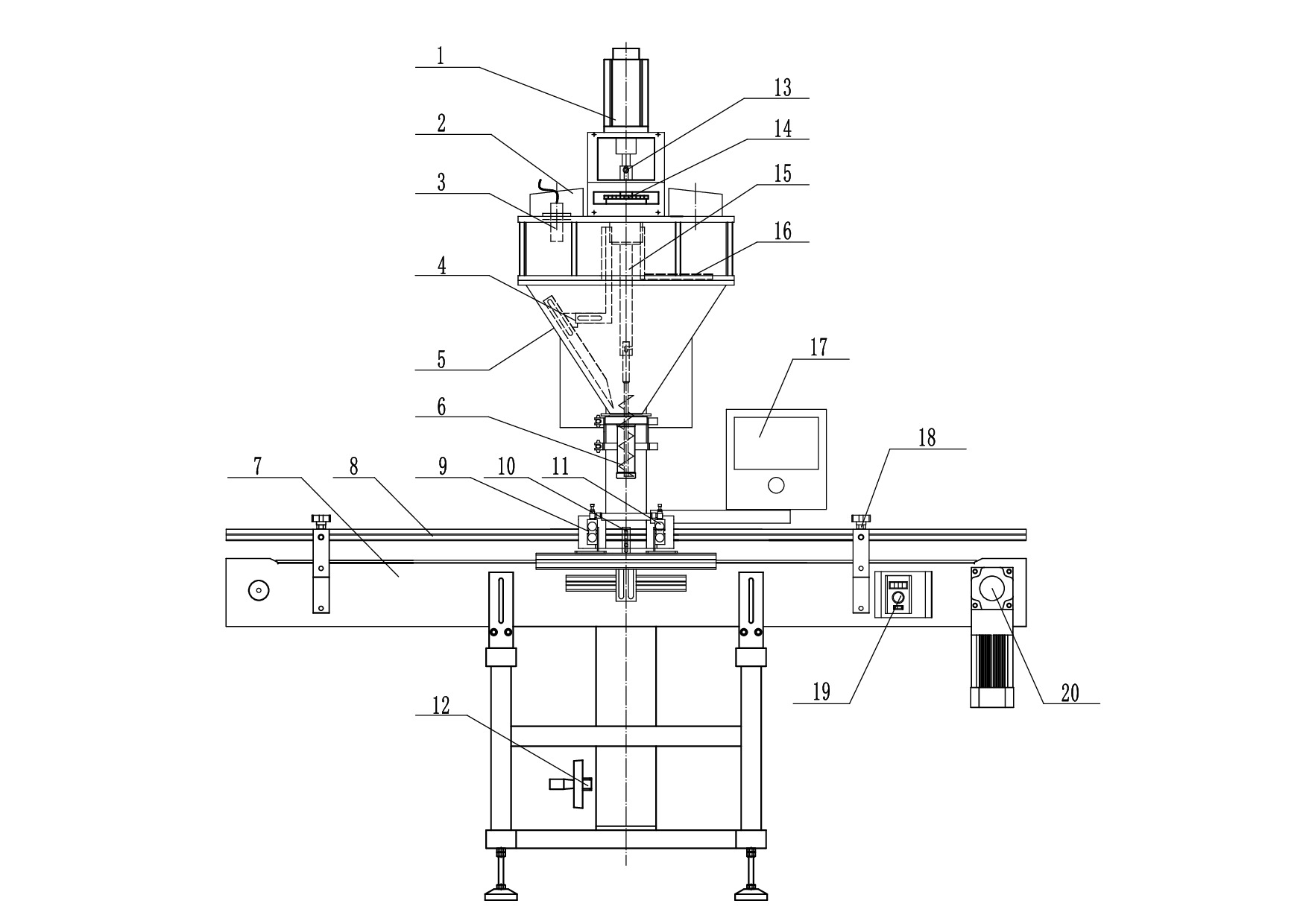

Structure Diagram (Single Nozzle):
1 | Servo Motor | 2 | Feeding Port |
3 | Detection Sensor | 4 | Stirrer |
5 | Hopper | 6 | Filling Screw |
7 | Conveyor | 8 | Guardrail |
9 | Block Cylinder | 10 | Photoelectric Sensor |
11 | Positioning Cylinder | 12 | Handle (adjust height) |
13 | Fixed Screw | 14 | Chain |
15 | Shaft | 16 | Stirrer |
17 | Touch Screen | 18 | Guardrail Adjustment Device |
Advantages and Characteristics
1、 Automatic positioning, filling and metering of bottles can be realized.
2、 Vibration device can be added to conveyor belt to ensure uniform filling .

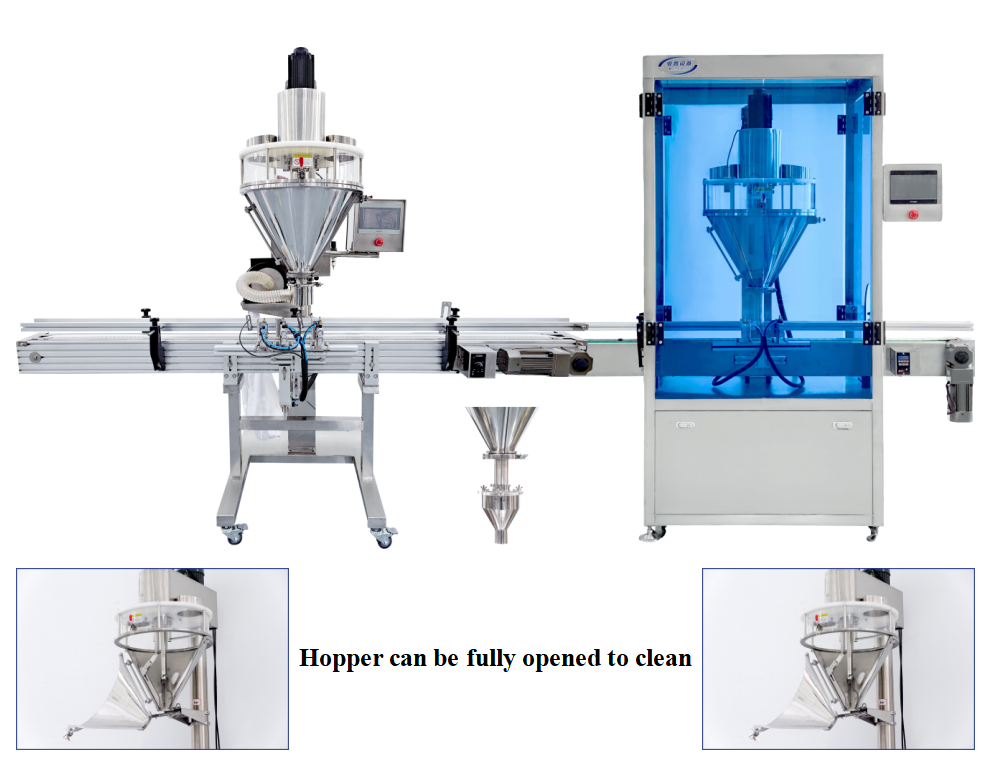

3、 The hopper can be fully opened, convenient to disassemble and clean.
4、 The servo motor is used to drive the screw, which is not easy to wear, accurate positioning, adjustable speed, stable performance, etc.
5、 PLC control system is adopted, which has the advantages of stable operation, anti-interference, and high weighing accuracy.
6、 All 304 stainless steels, all quick clamp connections, easy installation.
7、 The touch screen clearly displays each working status, operation instructions, fault status and production statistics, etc., and the operation is simple and intuitive.
8、 The screw accessories can be replaced, which can be used for a variety of materials from ultra-fine powder to small particles.
9、 High-precision processing, perfect mechanical structure, high concentricity of each component, high operating efficiency, and less wear.
10、 The silo can be fully opened, and the status of the internal components of the silo is clear at a glance:
1) Convenient to adjust the position between the agitator and screw.
2) Convenient maintenance and inspection of various components.
Structure Diagram
Dimension Diagram

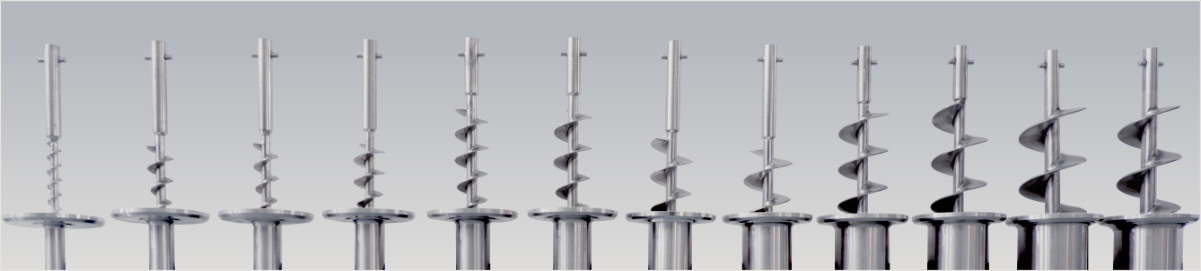

Additional Accessories
Screw Diameter (mm) | Cup Diameter (mm) | Leak-Proof Diameter (mm) | Range |
17 | 21 | / | 5g-30g |
22 | 26 | / | 20g-50g |
28 | 32 | / | 30g-100g |
34 | 39 | 41 | 50g-200g |
38 | 43 | 45 | 100g-300g |
45 | 50 | 52 | 200g-500g |
50 | 55 | 57 | 300g-1kg |
55 | 60 | 62 | 500g-2kg |
|
|

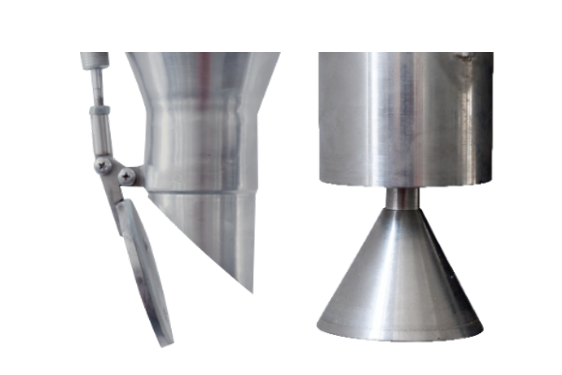

Leakage Prevention Device | Pressure Plate |
|
|

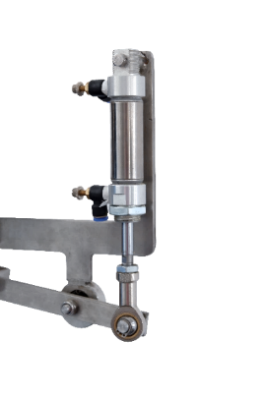

Stop Valve | Cylinder Device |
|
|
Dust Collecting Cover | Centrifugal Leakage Prevention |

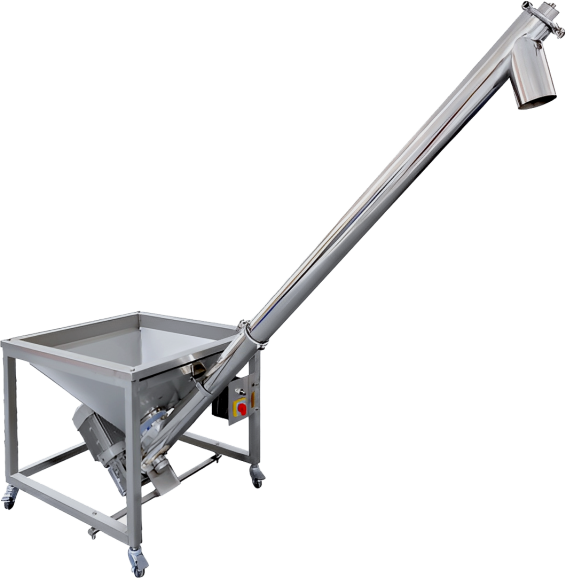

Screw Feeding Machine
Technical Parameters
Machine Type | APT-T2 | APT-T3 | APT-T6 |
Transport Capacity | 1000-3000kg/h | ||
Silo Volume | 120L | ||
Voltage | AC380V | ||
Power | 1.6kw | 2.5kw | |
Machine Weight | 150kg | ||
Silo Height | 750mm | 865mm | 750 |
Dimension | 2370×875×2200mm | 2300×700×2200mm | 2560×900×1900mm |
(This is standard size above, all parameters can be customized.）
Detailed Introduction
Main Configuration:
No. | Name | Brand | Origin |
1 | Feeding Motor(Gear Motor) | SANKAI | China Zhejiang |
2 | Vibration Motor | ANBO | China Zhejiang |
3 | Forward and Reversal Switch | JINGYI | China Shanghai |
4 | Power Switch | CHINT | China Zhejiang |
Random Accessories:
No. | Name | Quantity |
1 | Clamp | 2 |
2 | Gasket | 2 |
3 | Soft Connection | 1 |
Advantages and Characteristics
1. Gear motor power: The power is connected by a gear motor, and the bottom is a hinge flange connection to prevent powder jamming.
2. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.
3. Prevent material bridging: The silo wall is equipped with a vibration motor.
4. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.
5. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clen the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.
6. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.
7. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.
8. Good quality: Corrosion-resistant, auger blades are 3mm thick and not easy to deform.
9. Movable: Install universal wheels with brakes, easy to move, no noise.

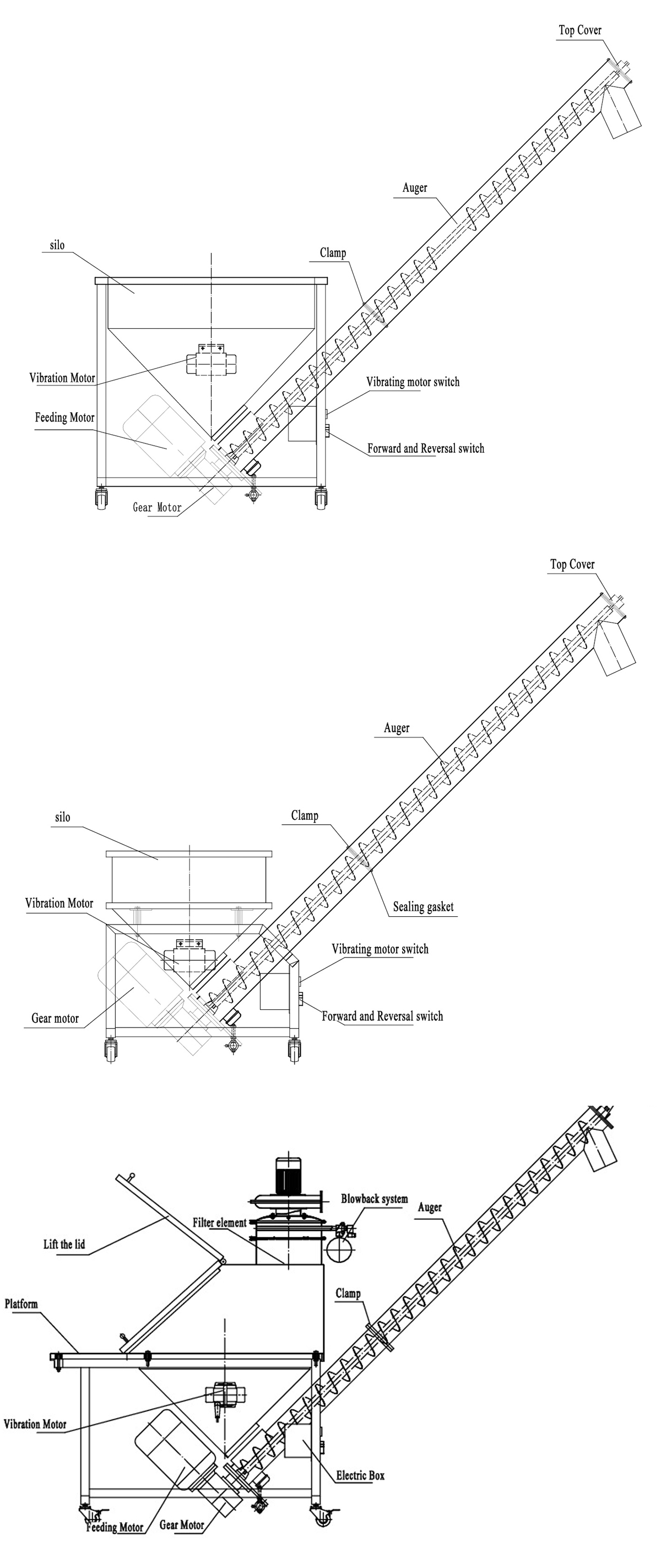

Structure Diagram

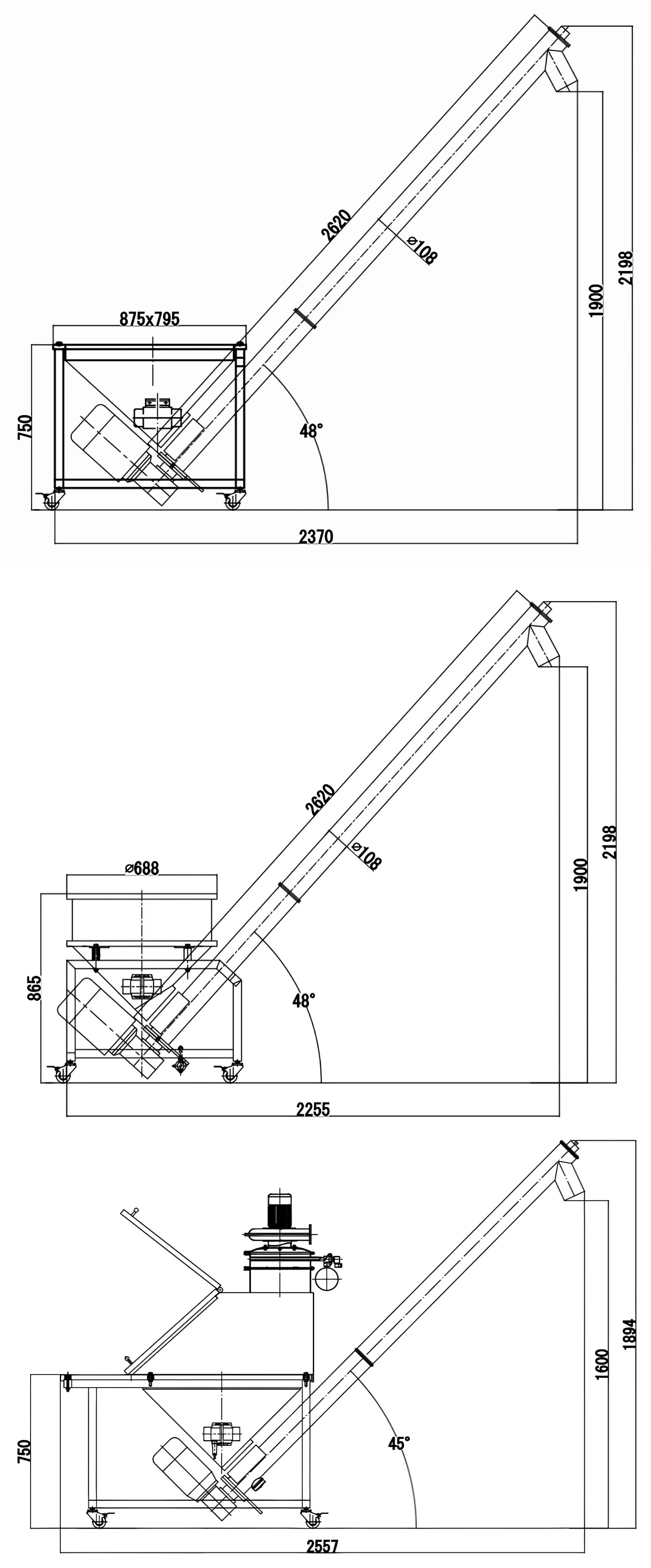

Dimension Diagram
