Quantative Powder Packaging Machine
Technical Parameters
Packaging Weight | 5kg-50kg (Depend on materials) |
Accuracy | ≤0.2% (Depend on materials) |
Speed | 120-300 bags/h (Depend on materials) |
Voltage | AC380V AC220V |
Power | 2.7kw |
Weight | 280kg |
Hopper Volume | 70L |
Feeding Height | 2080mm |
Dimension | L 1040×W 960×H 2400mm |
(The above are standard sizes, all parameters can be customized)
Detailed Introduction
Summary:

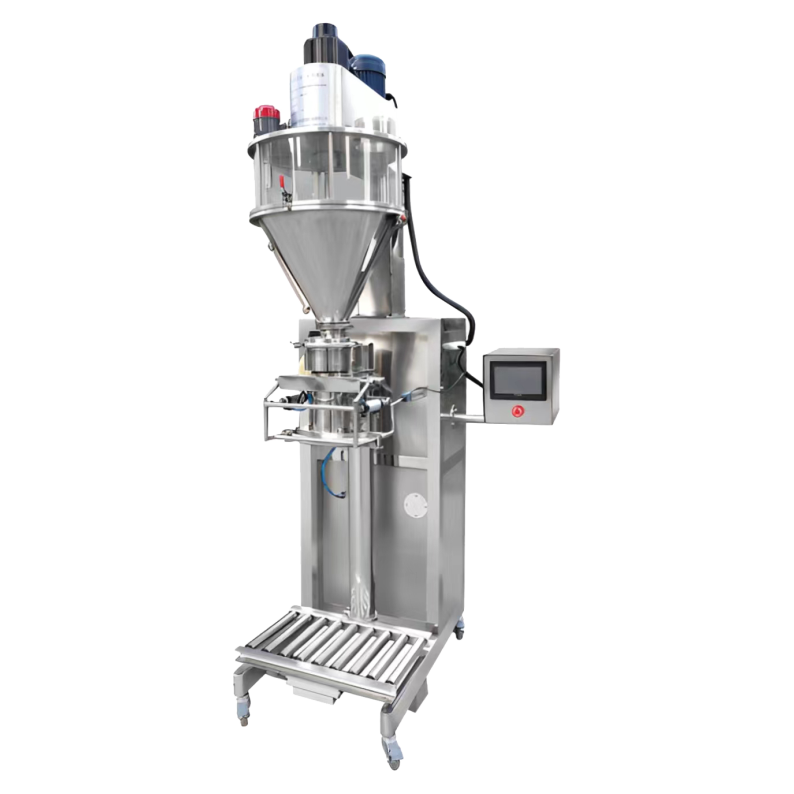

The machine is suitable for quantitative packaging of powdery, granular and pellet materials. It can be widely used in food, daily chemicals, veterinary drugs, pesticides, fertilizers, feed, additives and other industries.
It can form a production line with a feeder and a sealing machine.
Working Principle:
Weighing measurement: Adjust the set three-level weight parameters of fast, middle and slow (corresponding to the three-level filling speed of fast, middle and slow) to change the speed of the filling screw rotation, thereby adjusting the filling speed and accuracy:
(1) Fast filling, then start middle filling after reaching the "fast weight"
(2) Middle filling, start slow filling after reaching the "middle weight"
(3) Slow filling, stop filling after reaching the "slow weight"
Notes:
1. Two electric boxes: The strong and weak electricity are separate.
2. Roller conveyor can be moved up and down to adapt different sizes of bags.
3. Dust collecting cover can be connected with a dust cleaner.
4. Adjusting the height with a jack.
5. There is a stirrer in the hopper to help with filling.
6. There is a emergency stop switch.
Advantages and Characteristics
1. Accurate packaging: Adopting industrial-grade weighing module and PLC control system, weighing is stable and accurate.
2. Easy to clean: The hopper can be fully opened, which is easy to clean.
3. Convenient installation: Full quick-release clamp connection, simple installation.
4. Stable filling: The filling system is equipped with a time function, and the material level switch can also be fed normally when it fails; the material level switch can be installed not only in the hopper, but also on the outside to prevent the switch from failing.
5. Transparent silo: The material operation status is clear at a glance.
6. Stable structure: high-precision processing, perfect mechanical structure, highly concentric components (motor, long shaft, silo, screw, material cup, etc.), high machine operation efficiency, less wear, greatly reducing the failure rate of screw non-concentricity.
7. No leakage: There is a synchronous stirring function, which can solve a large part of the leakage problem of dry, loose and fine materials.

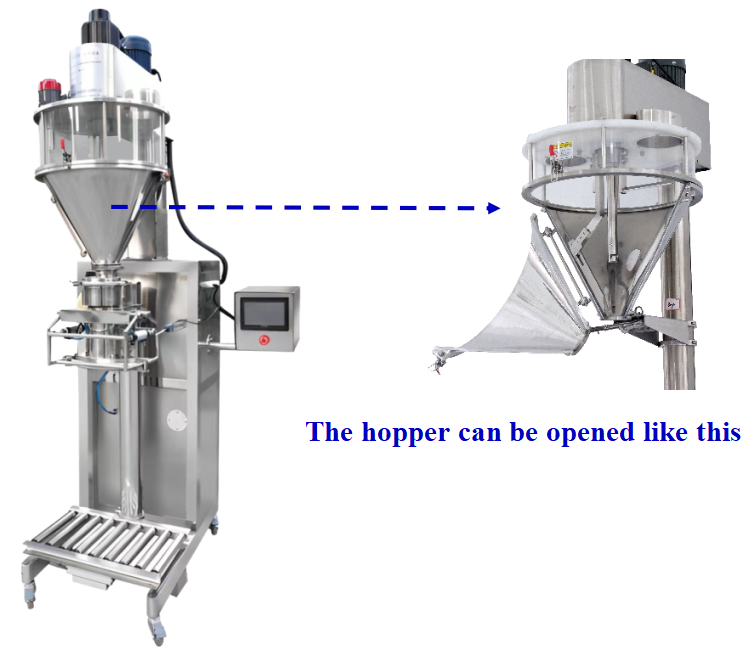

8. Easy maintenance and repair: The hopper can be fully opened, and the internal components of the hopper are clearly visible:
a) Convenient to adjust the relative position between the agitator and the filling screw
b) Convenient to maintain and repair each component (agitator, metering screw, long shaft, etc.).
9. Simple operation: Equipped with an electronic touch screen, parameters can be set directly
10. Easy to move: equipped with universal wheels.

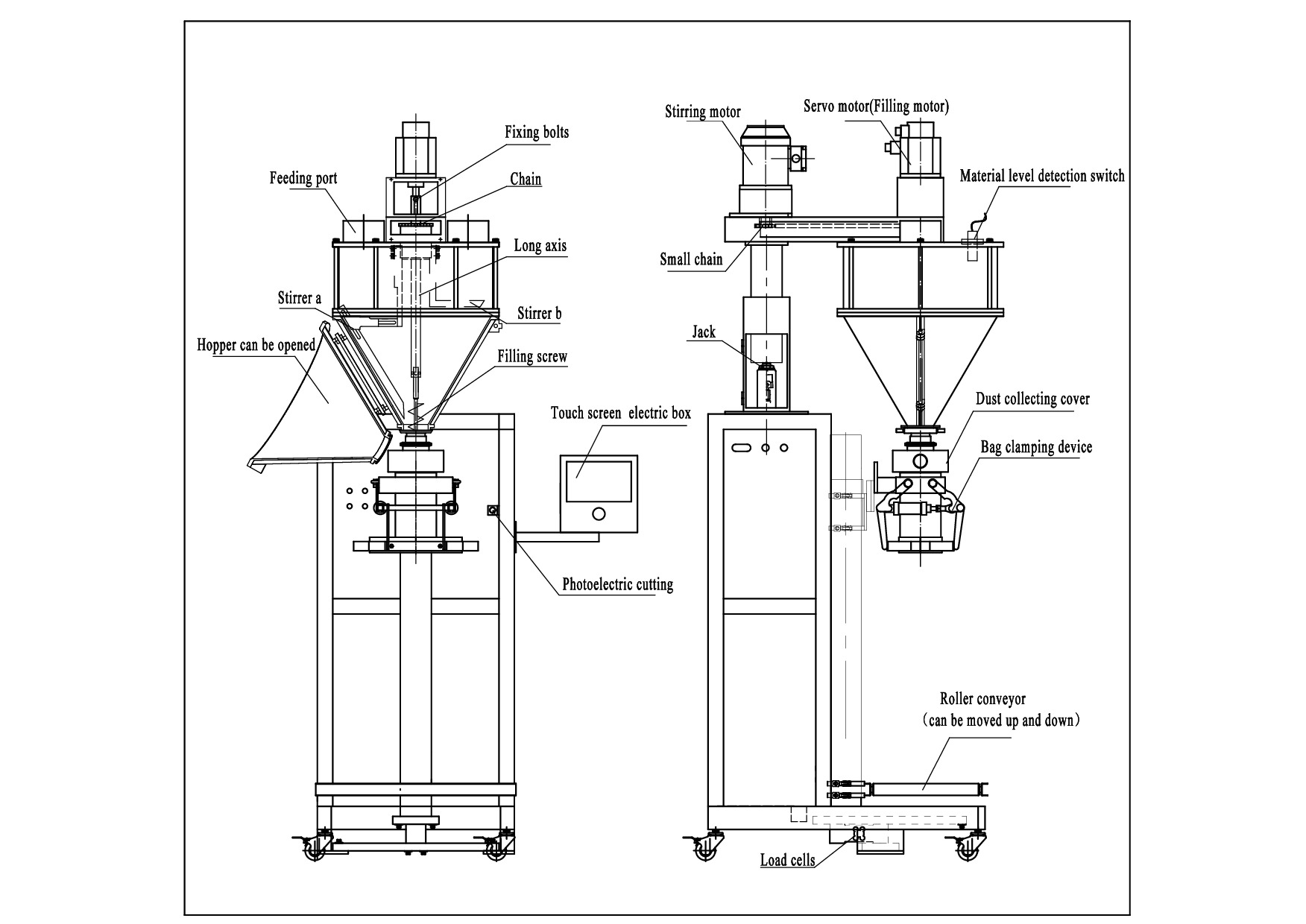

Structure Diagram

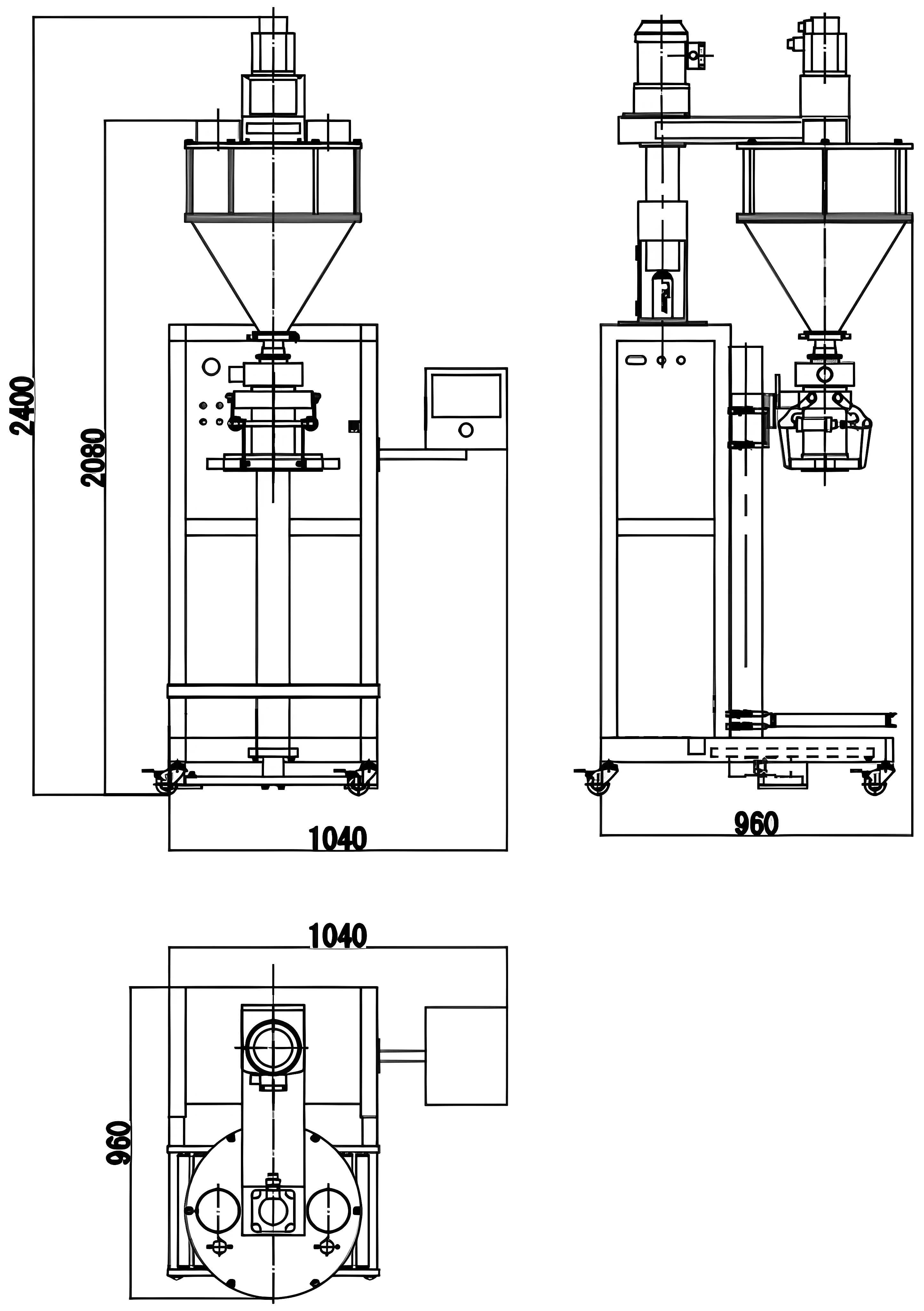

Dimension Diagram
Additional Accessories

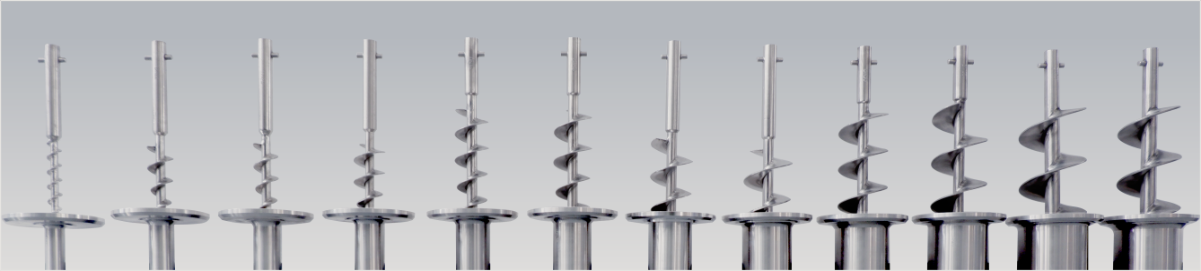

Screw Outer Diameter(mm) | Cup Outer Diameter(mm) | Prevent leakage Outer Diameter(mm) | Packing Size | Bag clamping device Outer Diameter(mm) |
Φ50 | Φ55 | 57 | 300g-1kg | Φ70 |
Φ55 | Φ60 | 62 | 500g-2kg | Φ76 |
Φ60 | Φ65 | 67 | 1kg-5kg | Φ89 |
Φ64 | Φ69 | 71 | 3kg-5kg | Φ89 |
Φ70 | Φ75 | 77 | 5kg-50kg | Φ89 |
The screw outer diameter can also be customized: 89mm
|
|
Leakage Prevention Device | Pressure Plate |
|
|
Stop Valve | Cylinder |
|
|

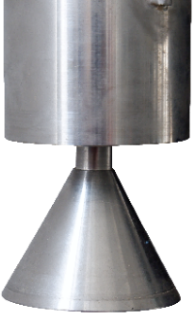

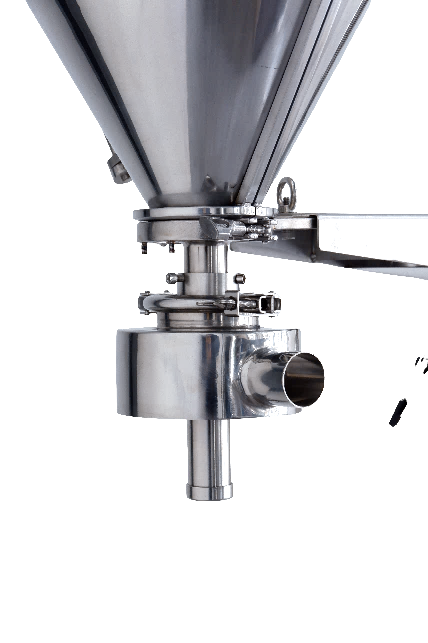

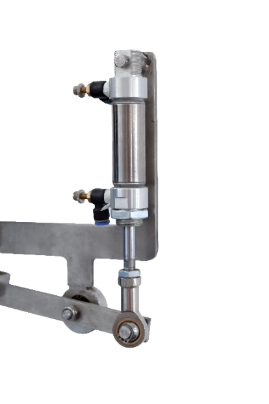

Dust Collecting Cover | Centrifugal Leakage Prevention Device |
