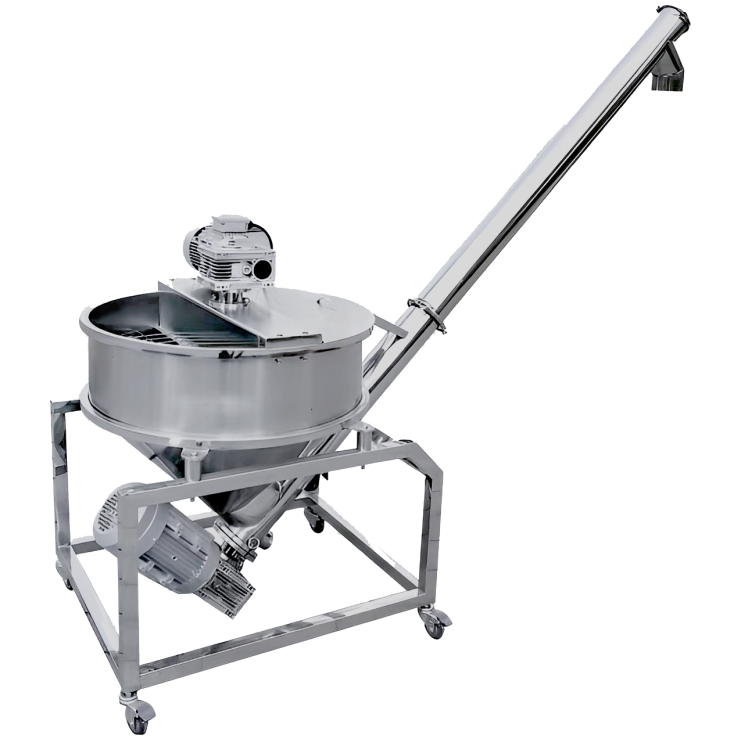

Screw Feeding Machine (Stirring Function)

Technical Parameters

Feeding Pipe Diameter

108mm

Transport Capacity

1000-3000kg/h (depends on material)

Silo Volume

150L

Voltage

AC380V

Power

4kw

Machine Weight

180kg

Silo Height

910mm

Feeding Height

1600mm

Dimension

L 2135×W 85H 1900mm

(This is standard size, all parameters can be customized.


Detailed Introduction

Advantages and Characteristics

1. Gear motor power: The power is connected by a gear motor, and the bottom is a hinge flange connection to prevent powder jamming.

2. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.

3. Prevent material bridging: The silo is equipped with a stirrer.

4. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.

5. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clen the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.

6. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.

7. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.

8. Good quality: Corrosion-resistant, auger blades are 3mm thick and not easy to deform.

9. Movable: Install universal wheels with brakes, easy to move, no noise.

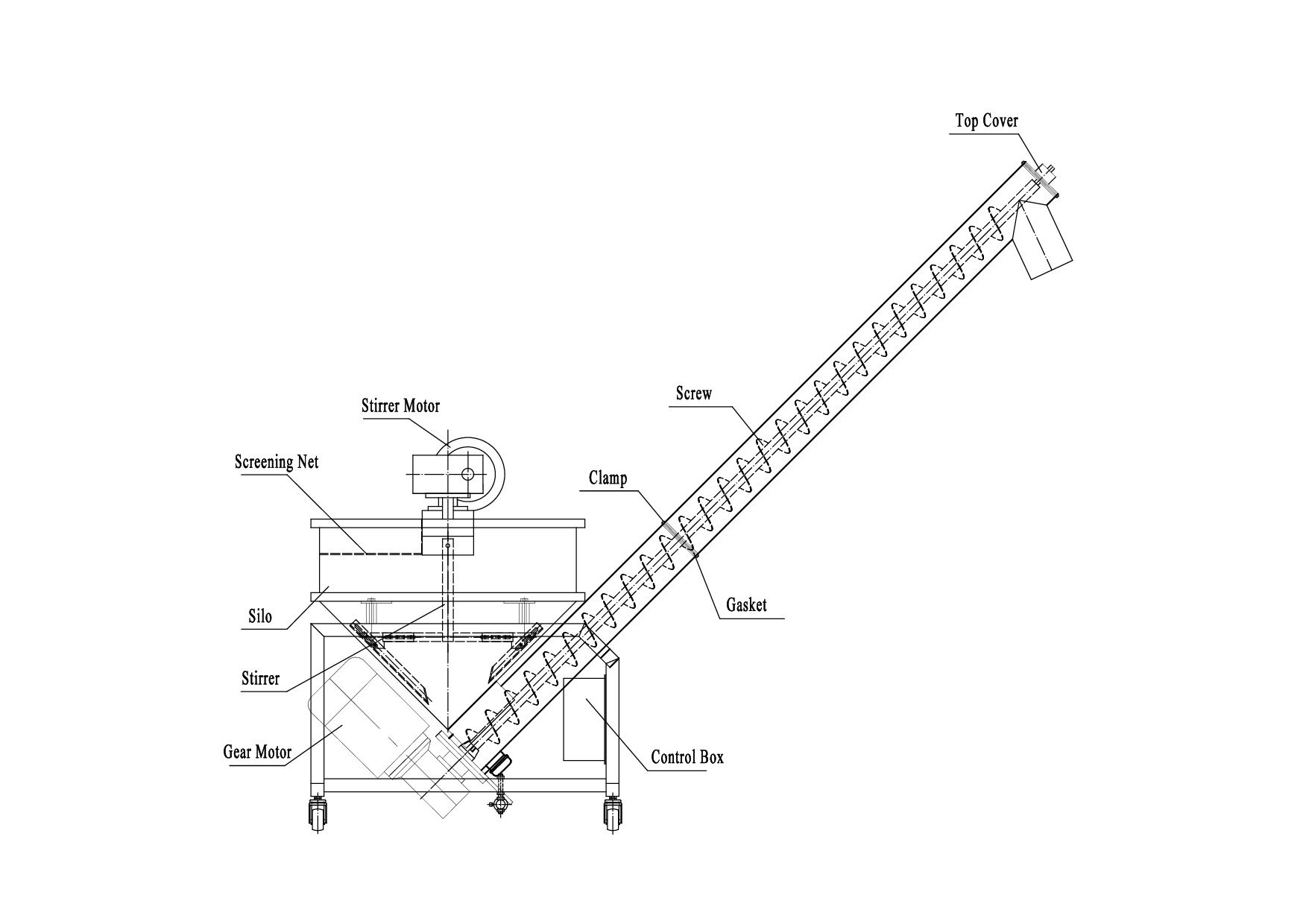

Structure Diagram

Screw Feeding Machine (Stirring Function)

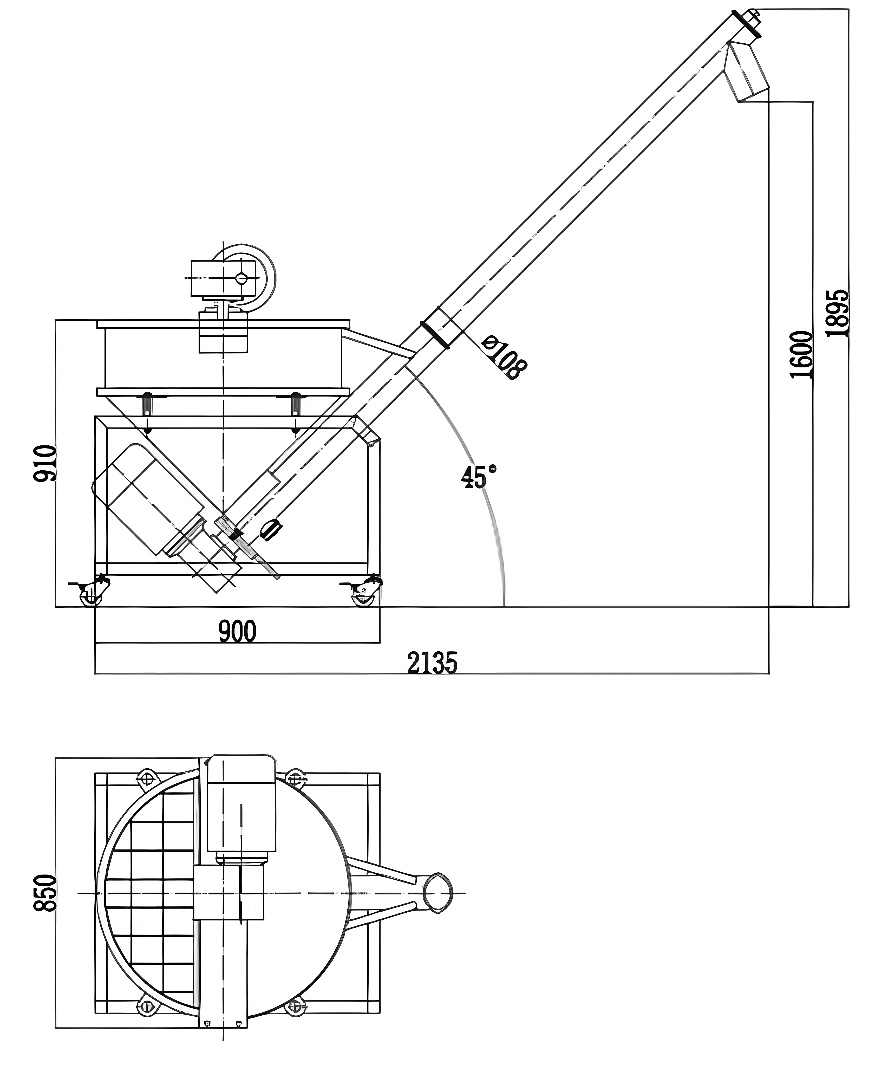

Dimension Diagram

Screw Feeding Machine (Stirring Function)
