Screw Feeding Machine (Dust Proof)

Technical Parameters

Feeding Pipe Diameter

108mm

Transport Capacity

1000-3000kg/h (depends on material)

Silo Volume

120L

Voltage

AC380V

Power

2.5kw

Weight

180kg

Feeding Height

1600mm

Silo Height

750mm

Dimension

L2560×W900×H1895mm

(The above are standard sizes, all parameters can be customized)


Detailed Introduction

Advantages and Characteristics

1. Gear motor power: The power is connected by a gear motor, and the bottom is a hinge flange connection to prevent powder jamming.

2. Prevent Dust: Installed with dust collecting motor and dust proof cover.

3. Adjustable transport capacity: The feeding port is equipped with an adjustable gate to control the flow of feeding.

4. Prevent material bridging: The silo wall is equipped with a vibration motor.

5. Convenient cleaning: There is a forward and reversal switch. Turn on the reversal switch to clean and forward switch to feed.

6. Convenient disassembly and installation: Full quick-install connection, no tools are required to thoroughly clean the residual material; silicone connection between the silo and the material tube; the barrel can be disassembled into two sections.

7. No powder jamming: The bearing adopts a unique sealing method, no powder is fed in, and no overflow is allowed.

8. Automatic work: It can be automatically controlled by the matching filling machine without manual intervention.

9. Good quality: Corrosion-resistant, auger blades are 3mm thick and not easy to deform.

10. Movable: Install universal wheels with brakes, easy to move, no noise.

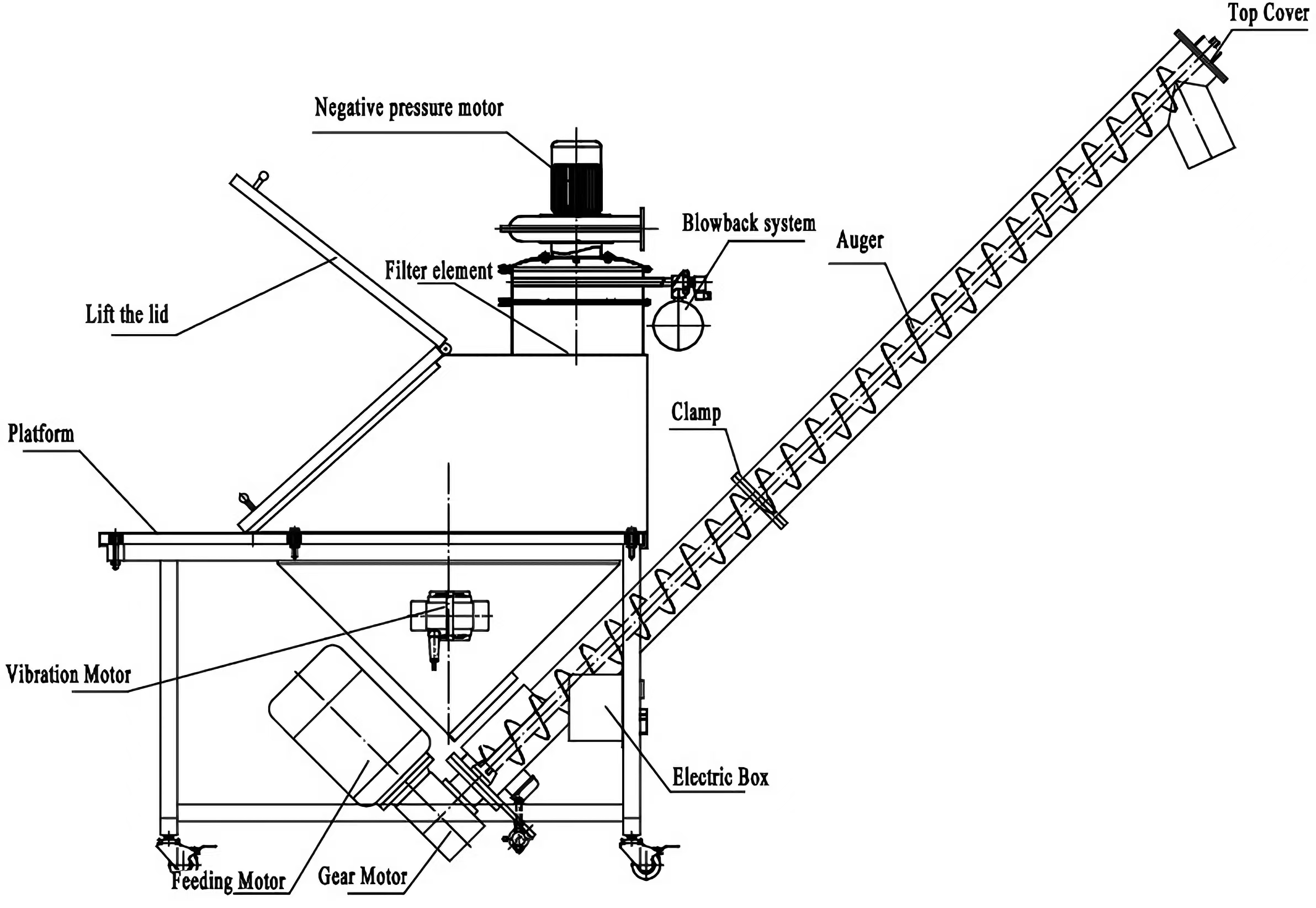

Structure Diagram

Screw Feeding Machine (Dust Proof)

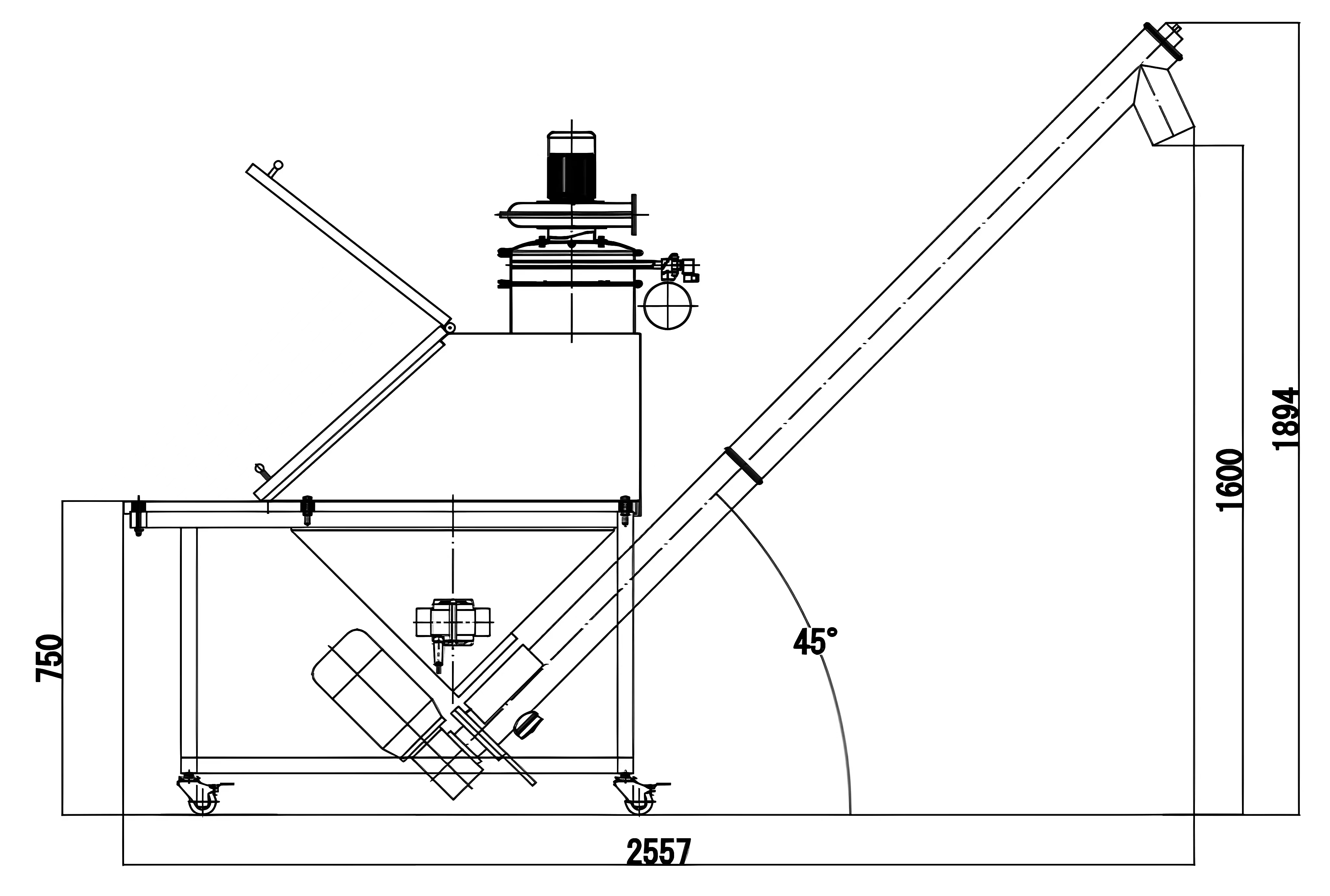

Dimension Diagram

Screw Feeding Machine (Dust Proof)

Additional Accessories
