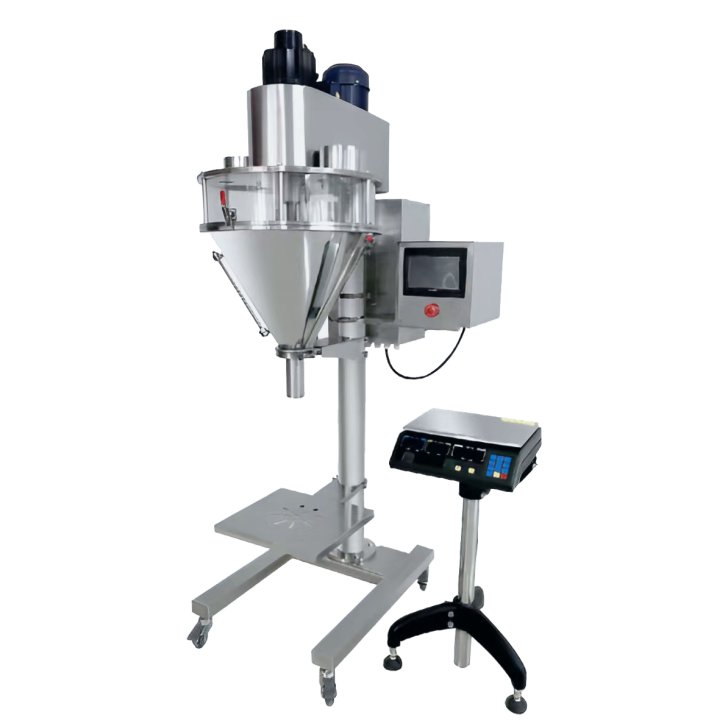

GMB-01A Powder Filling Machine
Technical Parameters
Packing Weight | 0.5g-5kg (Depends on Materials) |
Packing Speed | 1200-3500bags/h (Depends on Materials) |
Packing Accuracy | ≤1% (Depends on Materials) |
Voltage | AC380V |
Power | 1.5kw |
Hopper Volume | 50L |
Machine Weight | 180kg |
Dimension | L 780×W 880×H 1900mm |
(These are standard above, all parameters can be customized)
Detailed Introduction
Usually, Small scale uses volume , big scale uses weighing:
Volume measurement: adjust the pulse value to change the number of revolutions of the filling screw, thereby changing the filling weight (the larger the pulse, the more material is fed). When filling, use an electronic scale to feedback the weight, and the system will automatically adjust the pulse value.
Weighing measurement: Adjust the set 2-level weight parameters of fast and slow (corresponding to the 2-level filling speed of fast and slow) to change the speed of the filling screw rotation, thereby adjusting the filling speed and accuracy:
(1) Fast filling, then start middle filling after reaching the "fast weight"
(2) Slow filling, stop filling after reaching the "slow weight"
Advantages and Characteristics
1. Accurate packaging: Adopting high quality screw and PLC control system, weighing is stable and accurate.

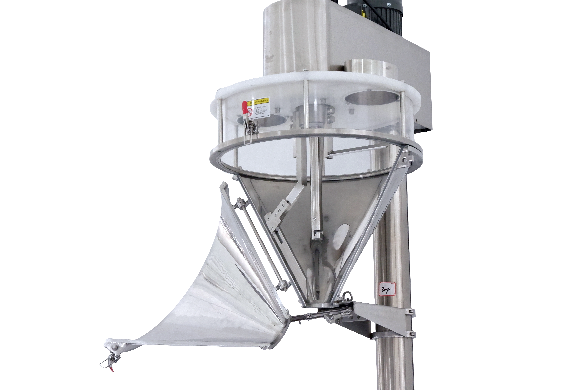

2. Easy to clean: The silo can be fully opened, which is easy to clean.
3. Convenient installation: Full quick-release clamp connection.
4. Transparent silo: The material operation status is clear at a glance.
5. Stable structure: high-precision processing, perfect mechanical structure, highly concentric components (motor, long shaft, silo, screw, material cup, etc.), high machine operation efficiency, less wear, greatly reducing the failure rate of screw non-concentricity.
6. No leakage: There is a synchronous stirring function, which can solve a large part of the leakage problem of dry, loose and fine materials.

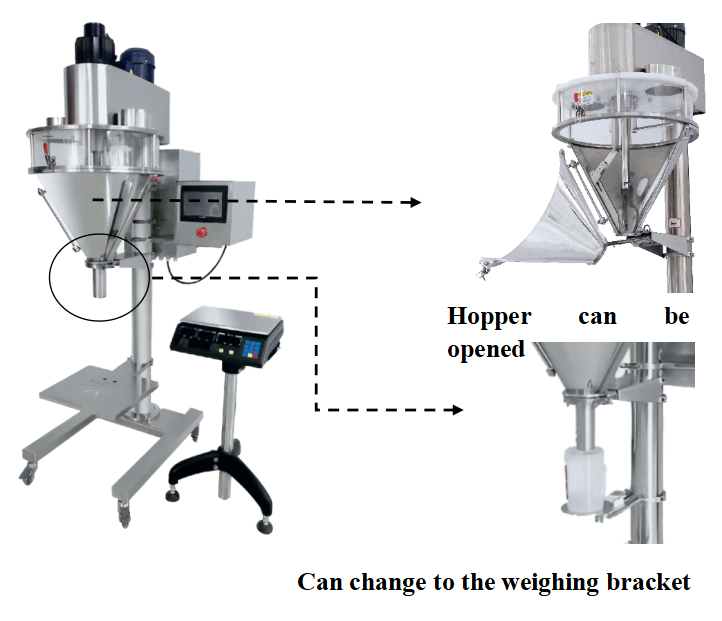

7. Easy maintenance and repair: The silo can be fully opened, and the internal components of the silo are clearly visible:
a) Convenient to adjust the relative position between agitator and screw.
b) Convenient to maintain and repair each component.
8. Simple operation: Equipped with an electronic touch screen, parameters can be set directly
9. Easy to move: equipped with universal wheels.

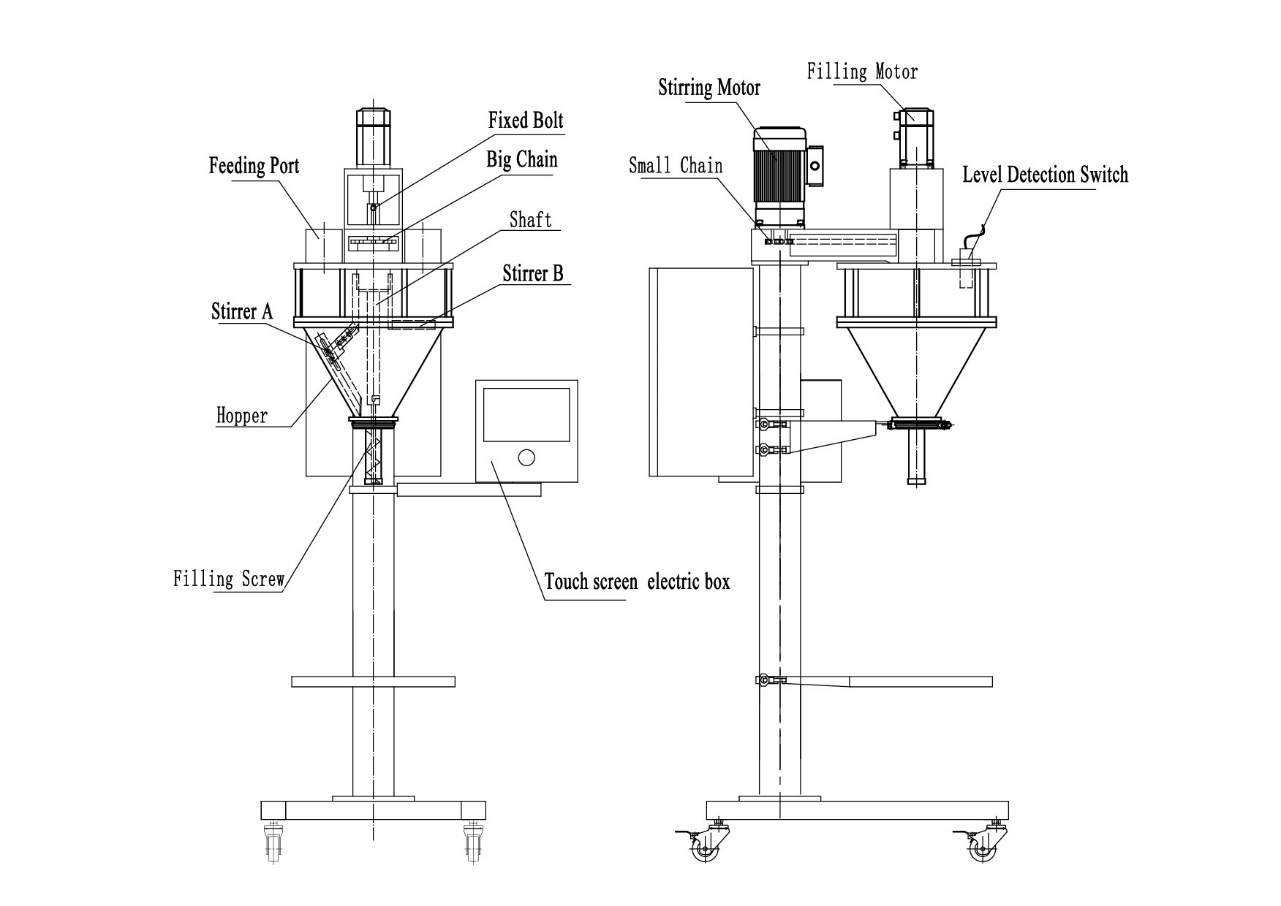

Structure Diagram

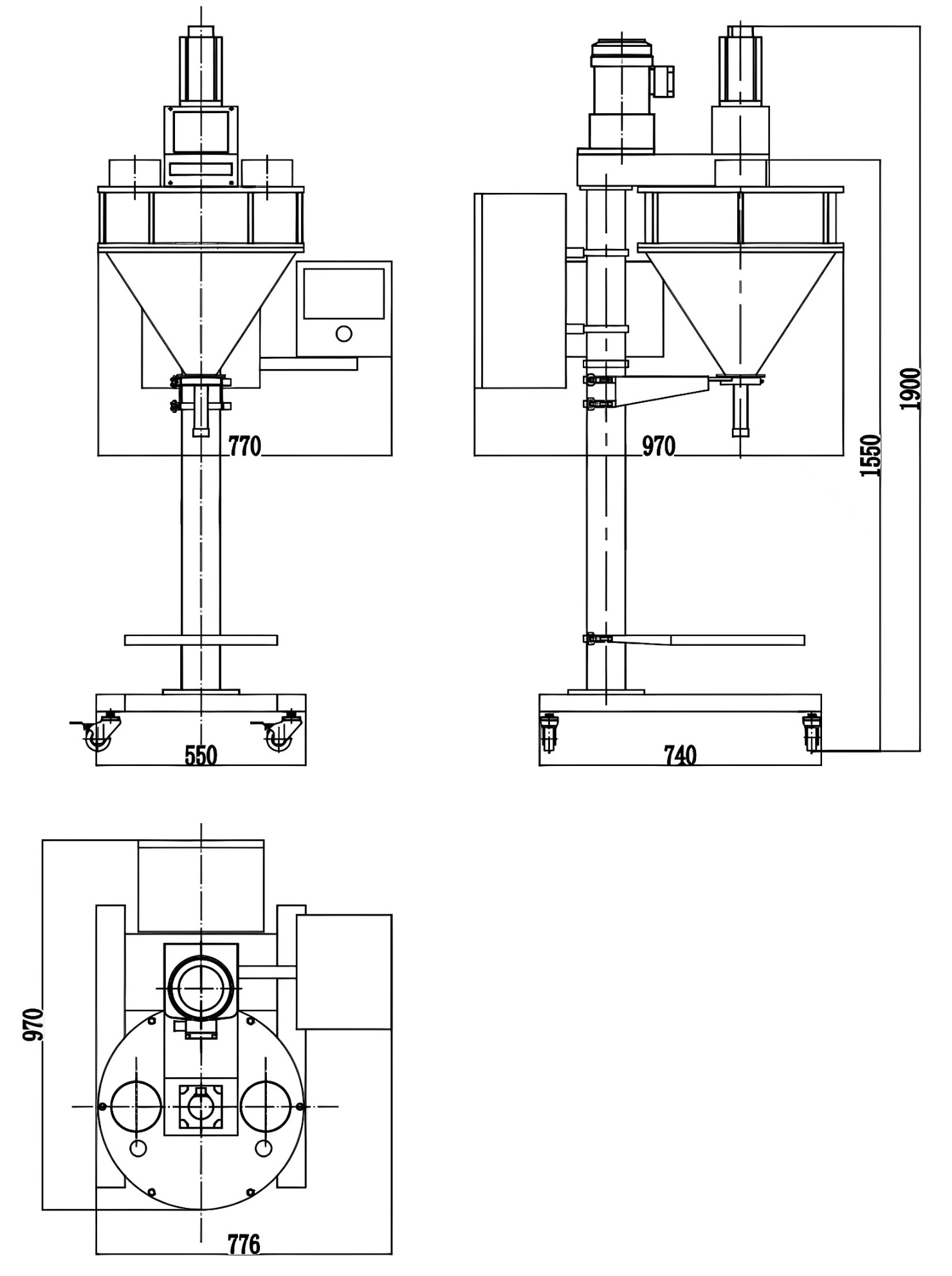

Dimension Diagram
Additional Accessories

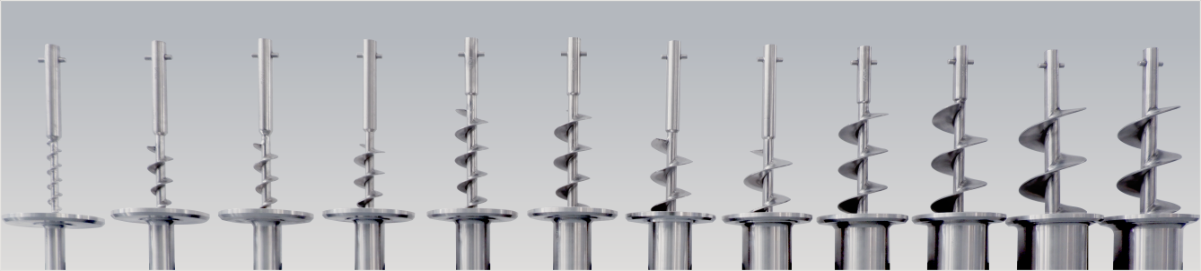

Screw(mm) | Cup(mm) | Leakage Net(mm) | Packing Range |
17 | 21 | / | 5g-30g |
22 | 26 | / | 20g-50g |
28 | 32 | / | 30g-100g |
34 | 39 | 41 | 50g-200g |
38 | 43 | 45 | 100g-300g |
45 | 50 | 52 | 200g-500g |
50 | 55 | 57 | 300g-1kg |
55 | 60 | 62 | 500g-2kg |
60 | 65 | 67 | 1kg-5kg |
64 | 69 | 71 | 3kg-5kg |
70 | 75 | 77 | 5kg-50kg |
|
|

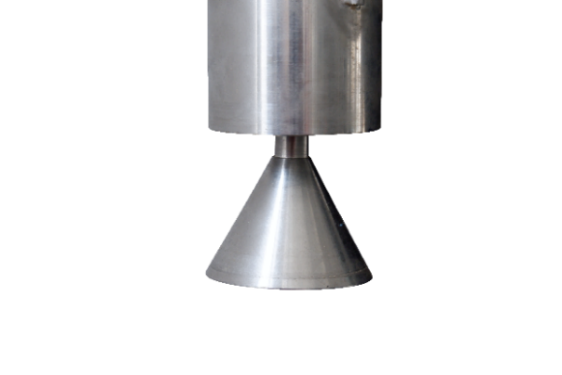

Leakage Prevention Device | Pressure Plate |
| |

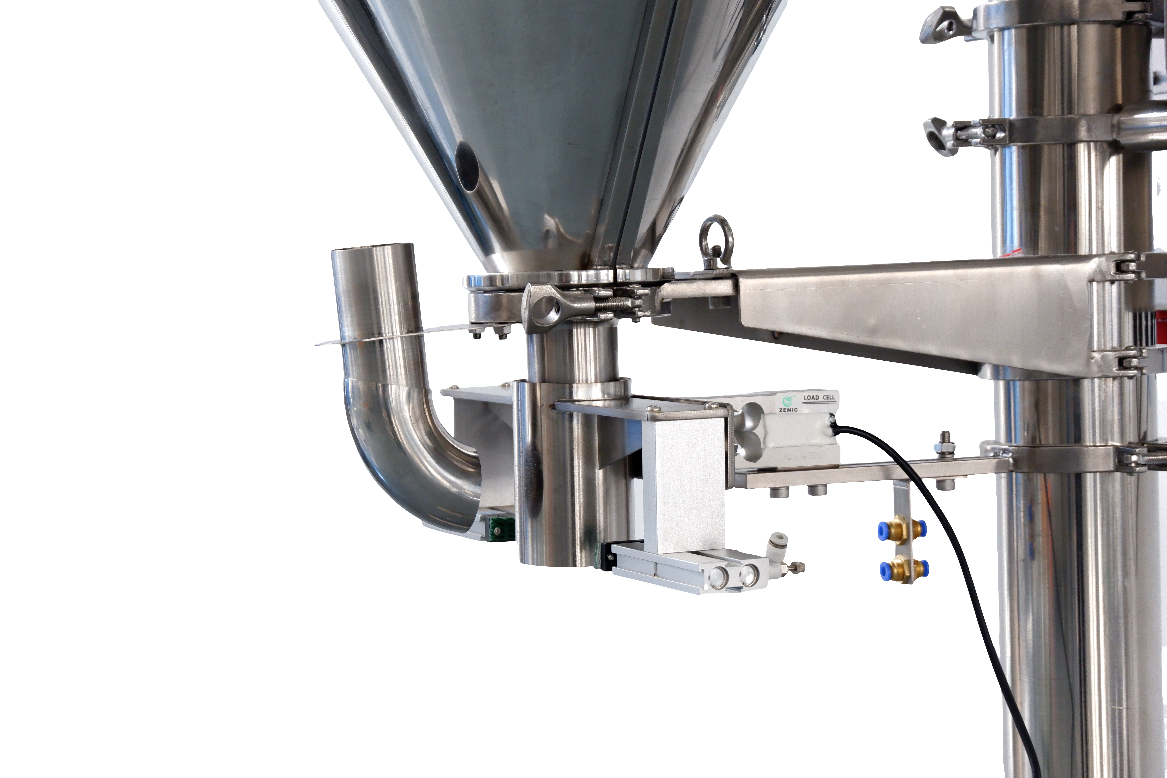

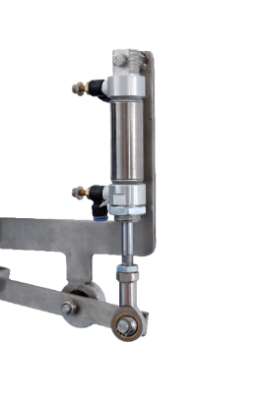

Stop Valve | Cylinder Device |
|
|

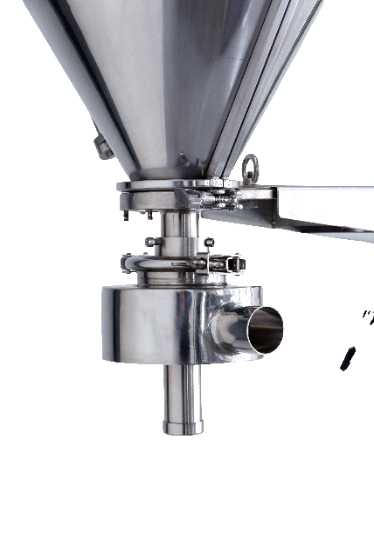

Dust Collecting Cover | Centrifugal Leakage Prevention |
